Overview

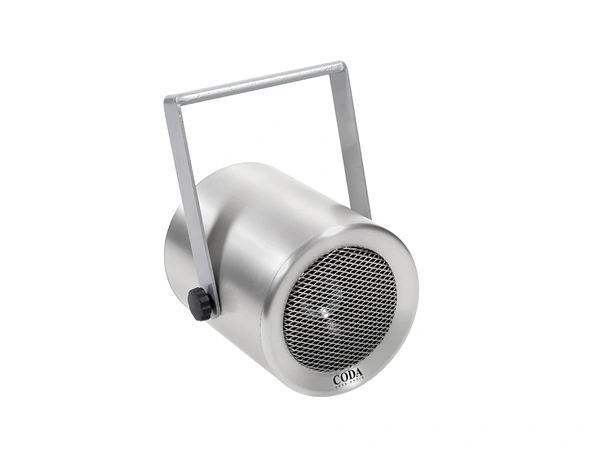

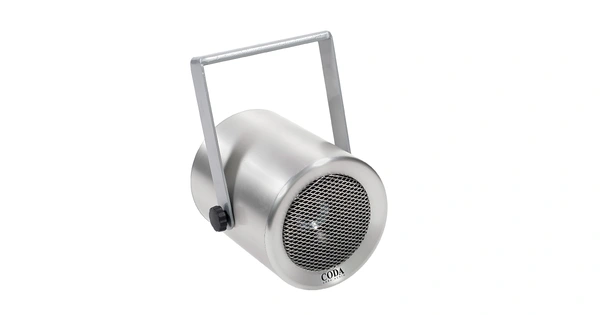

The CODA D5-Tube is a passive 2-way 5”/1” coaxial loudspeaker system designed without compromise to provide a true one point source in an ultra compact package. The D5-Tube incorporates an attractive cylindrical solid aluminium enclosure.
The aluminum cabinet contains a high power 5” woofer and a coaxially mounted high frequency ring diaphragm compression driver with 1.75″ voice coil. The advanced design aligns the acoustical centres of the transducers to produce a single point source. This unique loudspeaker technology provides a coherent wave front without hot spots. Precise directivity of 90° conical ensures uniform coverage with perfect time alignment between the components.

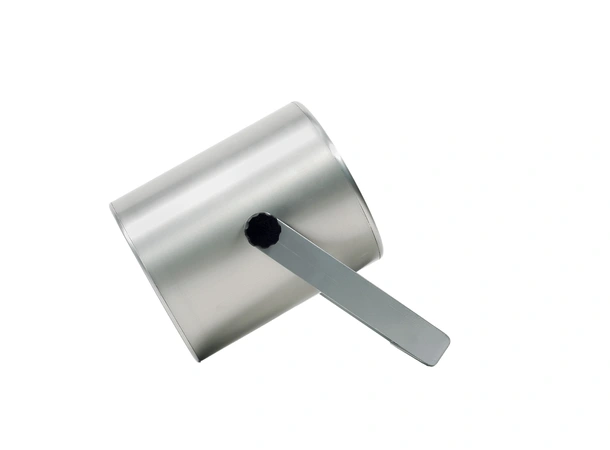

Two M6 threaded points, the included U-Bracket and the additional M8 threaded point at the rear of the cabinet allow various fixing possibilities. The solid aluminium enclosure delivers elegant design and durability. Also available as D5-Ceiling for ceiling suspended version.
Combined with the U12-Sub low frequency extension for mobile applications, or U12i-Sub for fixed installations, the frequency response is extended down to 40 Hz.
D5-Tube has been designed to work exclusively with CODA Audio LINUS Loudspeaker Management Amplifiers as an integrated solution for DSP, amplification, network remote control, optimal performance, protection, as well as extensive possibilities for system tuning and monitoring.
Main Features
- Ultra compact 2-way coaxial system
- Power handling: 125 W (AES)
- 5″/1″ coaxial loudspeaker
- Attractive solid aluminium design
- Single point source system providing coherent wave front
- Superb quality sound
- Impedance 16 Ohm for easy daisy chaining
- U-bracket included
- System integration with LINUS Loudspeaker Management Amplifiers
