Overview

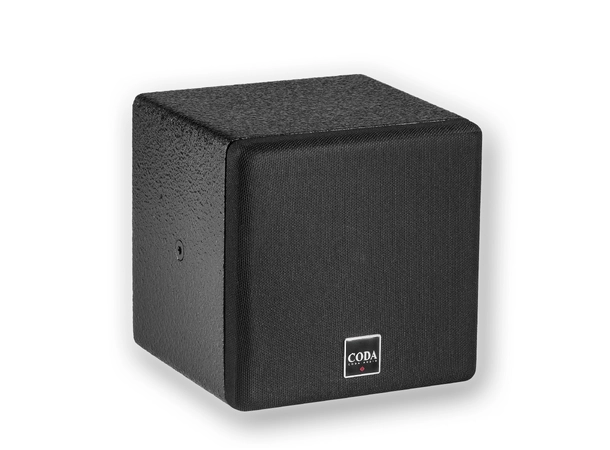

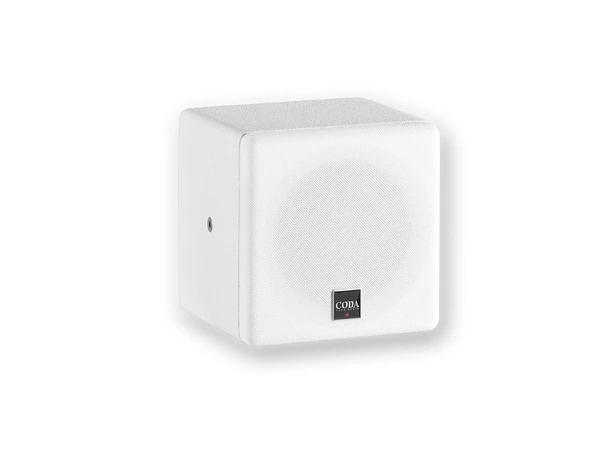

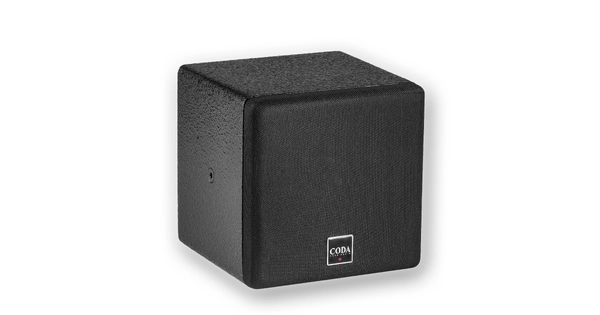

The CODA D5-Cube is a passive 2-way 5”/1” coaxial loudspeaker system designed without compromise to provide a true one point source in an ultra compact package.
The cabinet contains a high power 5” woofer and a coaxially mounted high frequency ring diaphragm comprssion driver with 1.75″ voice coil. The advanced design aligns the acoustical centres of the transducers to produce a single point source. This unique loudspeaker technology provides a coherent wave front without hot spots. Precise directivity of 90° conical ensures uniform coverage with perfect time alignment between the components.
Four M6 threaded points and the included U-bracket allow various fixing possibilities. An additional 3/8” threaded point located at the bottom of the cabinet offers connection to mic-stands, mini TV-spigots and further accessories.
Combined with the U12-Sub low frequency extension for mobile applications, or U12i-Sub for fixed installations, the frequency response is extended down to 40 Hz.
D5-Cube has been designed to work exclusively with CODA Audio LINUS Loudspeaker Management Amplifiers as an integrated solution for DSP, amplification, network remote control, optimal performance, protection, as well as extensive possibilities for system tuning and monitoring.
Ultra compact 2-way coaxial system 5"/1" coaxial loudspeaker
- The D5-Cube utilises a classic wooden enclosure to house a passive 2-way 5”/1” coaxial loudspeaker system designed without compromise to provide a true one point source.
Main Features
- Ultra compact 2-way coaxial system
- Power handling: 125 W (AES)
- Ultra-low distortion 5″/1″ coaxial loudspeaker
- Single point source system providing coherent wave front
- Superb quality sound
- Impedance 16 Ohm for easy daisy chaining
- U-bracket included
- System integration with LINUS Loudspeaker Management Amplifiers
