Overview

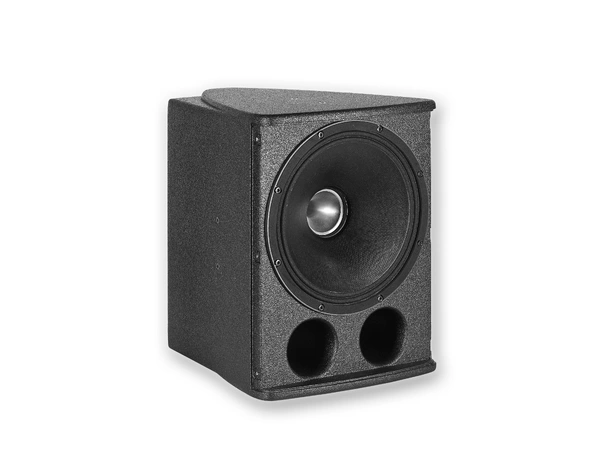

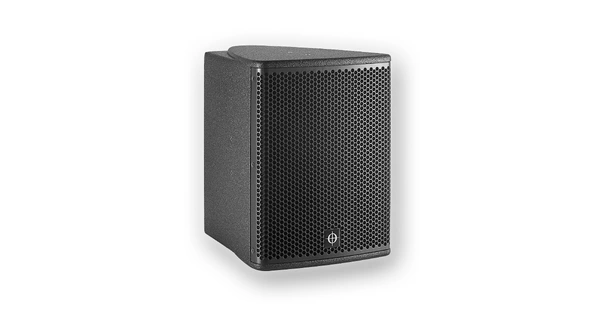

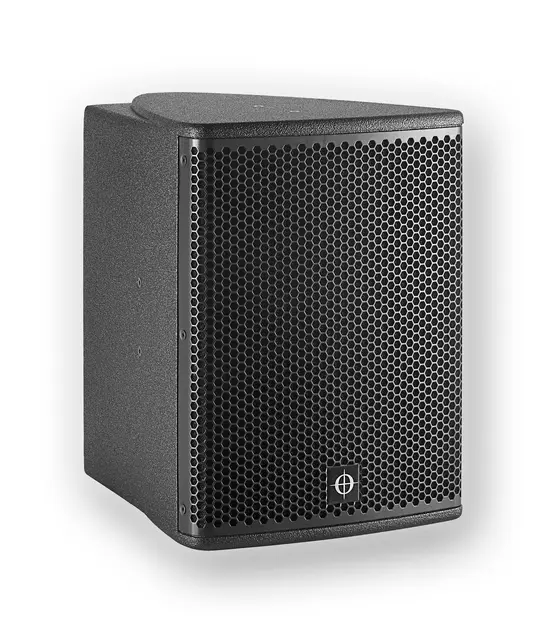

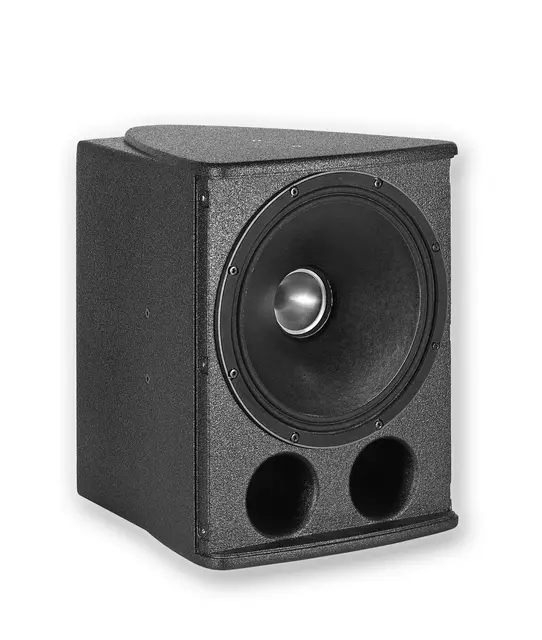

The CODA D12 is a passive 2-way coaxial loudspeaker system designed without compromise to provide a true one point source in a compact package. The cabinet contains a high power 12” woofer and a coaxially mounted high frequency ring diaphragm compression driver with a 1.75″ voice coil.

The advanced design aligns the acoustical centers of the transducers to produce a single point source. This unique loudspeaker technology provides a coherent wave front without hot spots. Precise directivity of 90° conical ensures uniform coverage with perfect time alignment between the components.

Supported with a full range of mounting and flying accessories the D12 sets a state of the art solution for almost any high quality, near field installed sound reinforcement applications.

Advanced Driver Technology

At the heart of the D12 is the new developed 12”/1.75” coaxial driver. The 12” cone driver covers the 60 – 1300 Hz range with high efficiency and smooth, linear response. Three aluminium shorting rings reduce inter-modulation distortion; minimise induction variation while reducing thermal compression.
The coaxially mounted high frequency driver contains an ultra light 1.75” annular diaphragm providing exceptional transient response with very high efficiency from 1 kHz to 20 kHz.
This new transducer was engineered to radiate a single source, coherent 90° wave front for superior dispersion control and high fidelity sound.

System Solution

The D12 is designed to work exclusively with dedicated CODA Audio DSP amplifiers as an integrated solution for DSP control, amplification, network remote control and diagnostic. The integrated solution ensures optimal performance and protection.

Options

Additional colours and weather protection options are available.

Applications

Supported with a full range of mounting and flying accessories the D12 sets a state of the art solution for almost any high quality, near field installed sound reinforcement applications.

Main Features

• Compact 2-way coherent point source technology
• High power handling of 600 W (AES)
• Frequency responce: 57 Hz – 21 kHz (-6 dB)
• 12” ultra low distortion driver with 3″ VC and triple demodulation rings
• Coaxially mounted 1.75″ annular diaphragm superb quality HF driver
• Symmetrical coverage of 90°
• Superior sound quality
• Optimised for near-field applications
• High output before feedback
• System integration with CODA DSP amplifiers
• Integrated M6 flying points
• Ball impact resistant (DIN 18032-3)
• System integration with LINUS Loudspeaker Management Amplifiers
