CODA Audio CUE TWO Wedge High Output 3 way, 15" Triaxial, 29 Kg CODA Audio CUE TWO Wedge High Output 3 way, 15" Triaxial, 29 Kg CODA Audio CUE TWO Wedge High Output 3 way, 15" Triaxial, 29 Kg

CODA Audio CUE TWO Wedge High Output

3 way, 15" Triaxial, 29 Kg

Varenr: CUE TWO
39 266,-eks mva.
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
1 På lager
BeskrivelseTeknisk infoTilbehørAlternativerDokumenter
Beskrivelse

The CUE TWO is a compact 3-way, coherent monitor built for the stage. It’s a super-high power box thanks to its 15″ neodymium cone driver and 1.4″ coaxial compression driver concentrically mounted to the woofer, loaded by a 60° x 90° elliptical waveguide.

As an artist, what you’re looking for out of a stage monitor is volume, clarity, and feel, and the technology in this box provides all of this and more, mainly thanks to its powerful neodymium woofers and compression driver: feedback is extremely minimal, integrated hardware provides increased dispersion, and the low end frequency response is immense.

The 15” high power neodymium driver is highly efficient and delivers controlled low frequency reproduction down to 50 Hz (-6 dB).  When combined with a 1.4” coaxial ring diaphragm compression driver it provides a true triaxial point source.  This unique technology with the elliptical 60° x 90° waveguide reproduces a coherent wavefront without hotspots. The precise directivity ensures uniform coverage with perfect time alignment between the components.

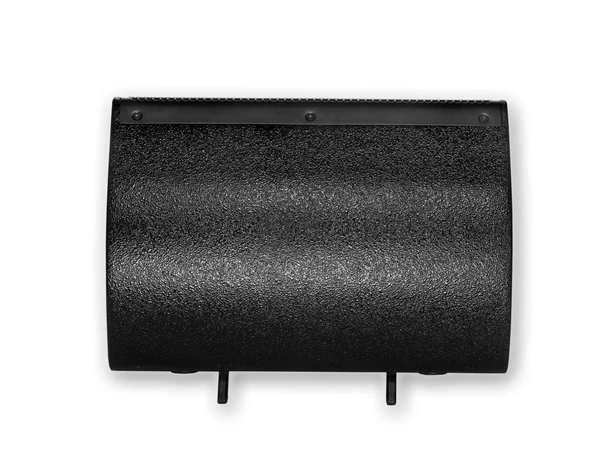

The reduction in physical size as well as its elegant cable connection at the bottom of the cabinet make the CUE TWO particularly useful not only on stage but also in applications where visual restrictions in placement play their part. Thanks to the integrated feet, the dispersion angle can be increased by 5 degrees.

M6 threaded points complete the possibilities with optional accessories and allow placement in specific applications such as TV studios, theatres, cinemas, etc.

CUE TWO has been designed to work exclusively with CODA Audio LINUS DSP Amplifiers with Loudspeaker Management as an integrated solution for DSP, amplification, network remote control, optimal performance, protection, as well as extensive possibilities for system tuning and monitoring.



Teknisk info

Produktinformasjon

Application: Stage monitor
Crossover: 750 Hz passive or bi-amp (internal connector), 6.3 kHz passive
Dimensions (WxHxD) 540 x 379 x 574 mm / 21.26 x 14.92 x 22.6"
Enclosure material: Birch plywood
Ethernet connection 1 x 100 Mbps RJ45
Finish: Polyurea coating (water resistant)
Frequency response: 50 Hz – 22 kHz (-6 dB)
High frequency: 1.4" neodymium coaxial driver 3.5" (90 mm) + 1.75" (44.4 mm) voice coil, 150 W + 80 W
Horizontal: 60°
Input connectors: 2x Neutrik™ NL4MP
IP rating (IEC 60529): IP53
LINUS10-C Optimum / Maximum: 2/4 bi-amp or 4/8 passive
LINUS12C Optimum / Maximum: 2/8 bi-amp or 4/16 passive
LINUS14 Optimum / Maximum: 2/8 bi-amp or 4/16 passive
LINUS5-C Optimum / Maximum: 2/2 bi-amp or 4/4 passive
Low frequency: 15" neodymium woofer 4" (101.6 mm) voice coil, 1000 W (AES)
Max. peak SPL: 143 dB
Net weight: 29 kg / 63.93 lbs
Nominal impedance:
  • 3-way passive: 8 Ohm (1+/1-)
  • 8 Ohm (1+/1-) / 8 Ohm (2+/2-)
Peak Power: 4000 W
Power handling AES: 1000 W
Sensitivity:* 103 dB
Suspension: M6 fixing points
Type Cue-Serie
Vertical: 90°
Weather protection options:
  • MG1 (Marine Grade 1) IP55
  • Standard IP55: IP55 (direct cable)
