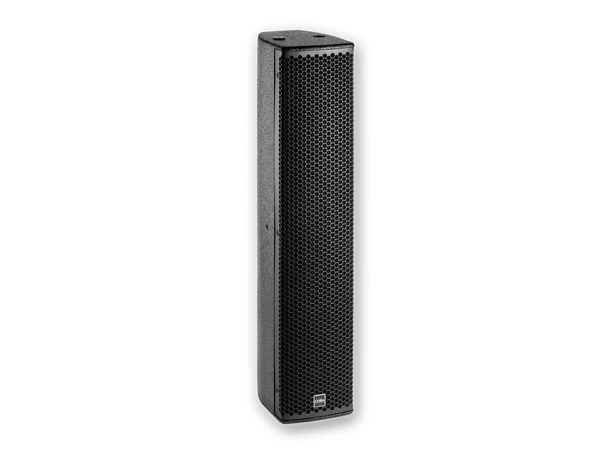

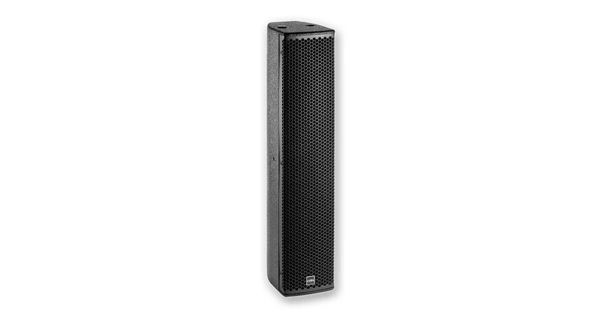

CoRAY4L : Column Speaker. Line Array.

The CoRAY4L is a compact low-mid frequency extension for the CoRAY4. The cabinet contains four 5“ ultra low distortion cone speakers and features the same CMS (Coda Mobile Suspension) as the CoRAY4 for an integrated fixing solution.

Main Features

• Compact low-mid frequency extension for CoRAY4/CoRAY4i
• Frequency range: 80 Hz – 1300 Hz (-6 dB)
• High power handling of 700 W (AES)
• Four 5″ ultra low distortion cone speakers
• Integrated CMS (Coda Mobile Suspension) optimised for mobile use
• Ball impact resistant – CoRAY4Li (DIN 18032-3)
• System integration with LINUS Loudspeaker Management Amplifiers

Overview

CoRAY4L is a compact  low-mid frequency extension for CoRAY4/4i. This system convinces with high fidelity, scalability and excellent speech intelligibility. The CoRAY Series combines the CODA AUDIO innovative driver and system design technologies.

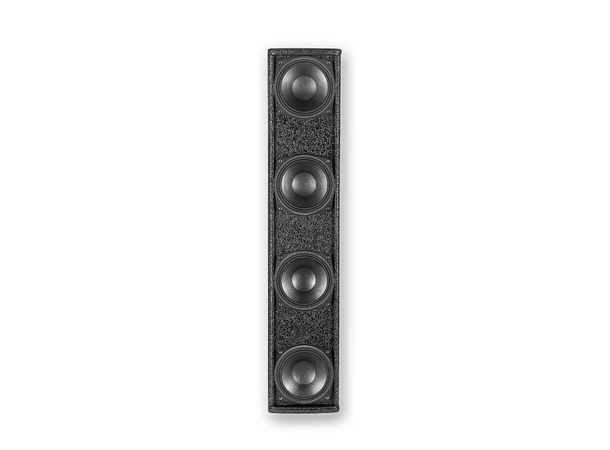

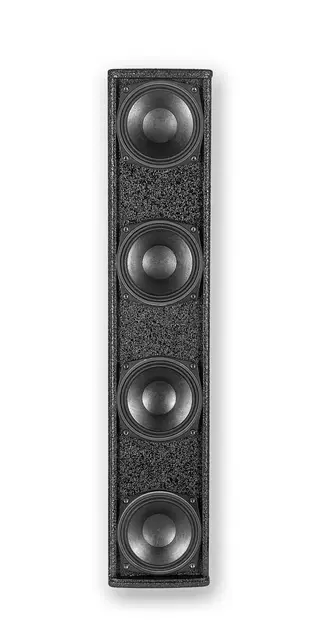

CoRAY4L contains four 5” ultra low-distortion cone speakers. The combination of CoRAY4L low frequency extension with the CoRAY4 provides significantly higher output and increases the long throw capability. It also features the same CMS (CODA Mobile Suspension) as the CoRAY4 for an integrated fixing solution.

CoRAY4L can be combined with one or two CoRAY4, and optionally with another CoRAY4L in a vertical array creating a line source length of up to three meters. This improves low-mid reproduction and increases long throw capability.

CoRAY4 and CoRAY4L have been designed to work exclusively with CODA Audio LINUS Loudspeaker Management Amplifiers as an integrated solution for DSP, amplification, network remote control, optimal performance, protection, as well as extensive possibilities for system tuning and monitoring.

Models

• CoRAY4L – optimised for touring applications
• CoRAY4Li – optimised for permanent (fixed) installations
