Overview

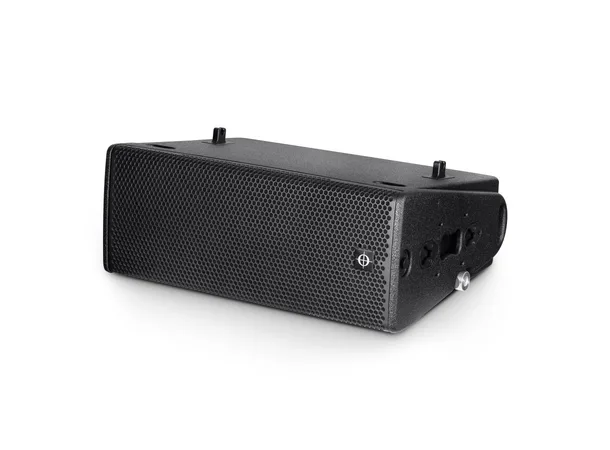

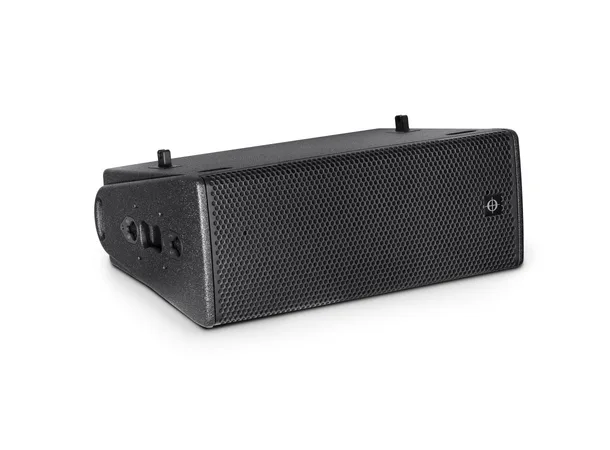

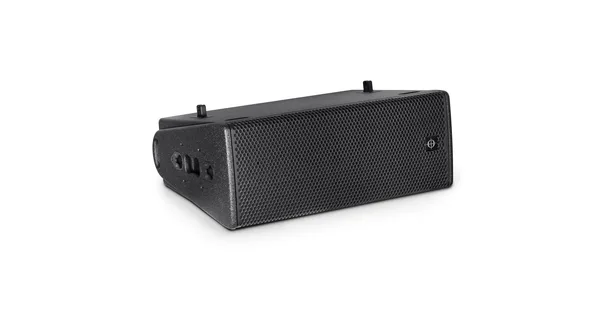

The APS-Pro-D is a compact, 3-way arrayable point source loudspeaker, designed for small and medium-sized venues where a scalable and powerful solution is required.

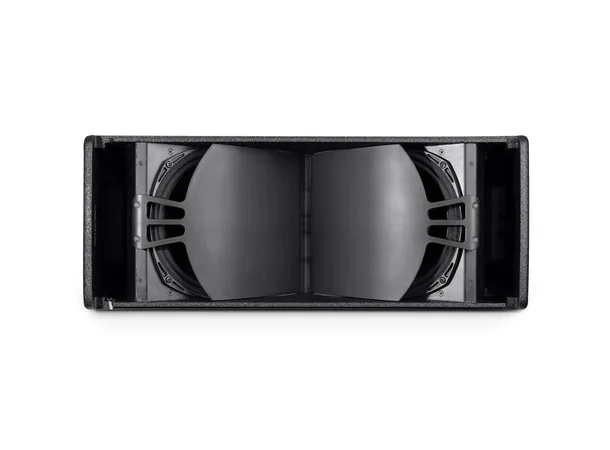

In the APS-Pro-D, mid and high frequencies are reproduced from a single source, CODA’s Dual Diaphragm coaxial Curved wave driver (DDC). Its output pattern is controlled by a magnetic InstaFit APS-COUPLER. Couplers combine all elements of the loudspeaker into a single, pattern-controlled wavefront.

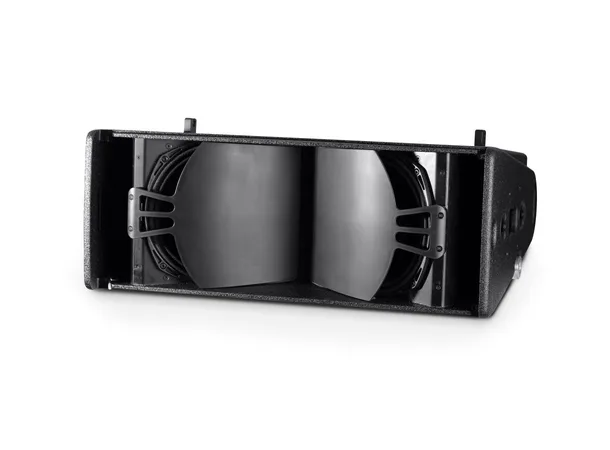

Two 10” high-excursion low distortion neodymium drivers are thermally coupled to a shaped aluminium baffle that also forms the cabinet’s reflex ports. This exclusive Dynamic Airflow Cooling technology, or DAC, takes heat away from drivers, increasing power handling and significantly reducing power compression. With carbon fibre diaphragms providing increased stiffness and reduced moving mass, these advanced drivers work down to 50 Hz with impact and control.

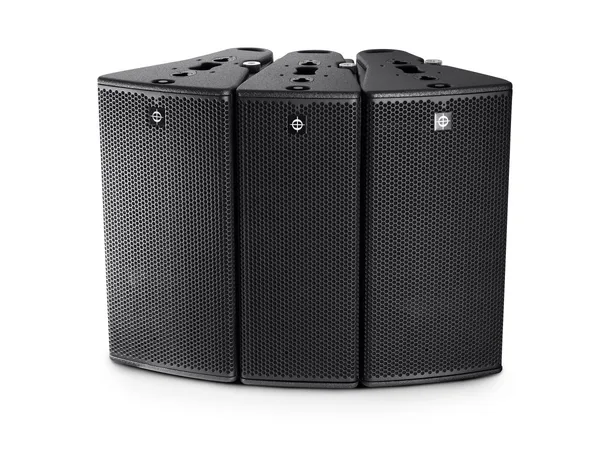

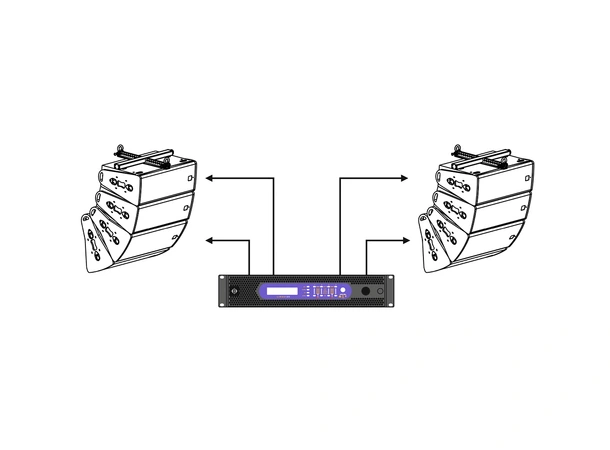

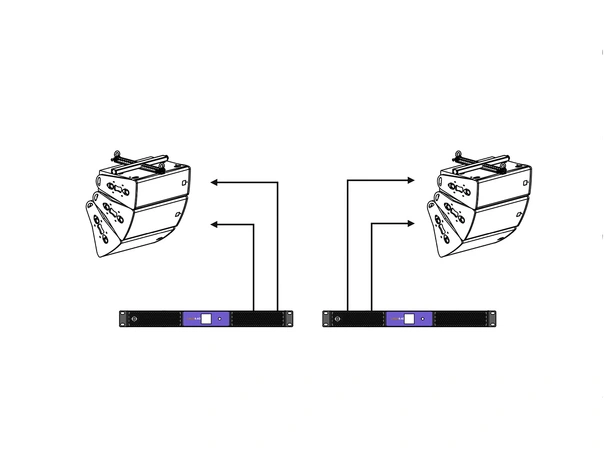

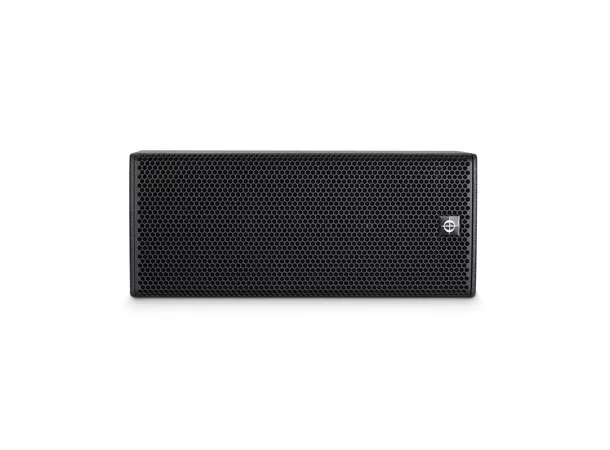

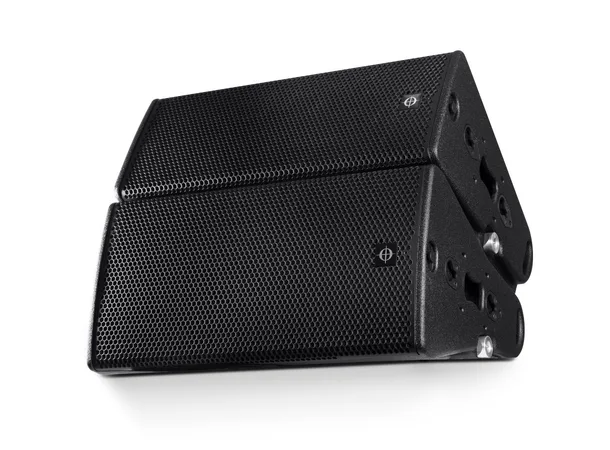

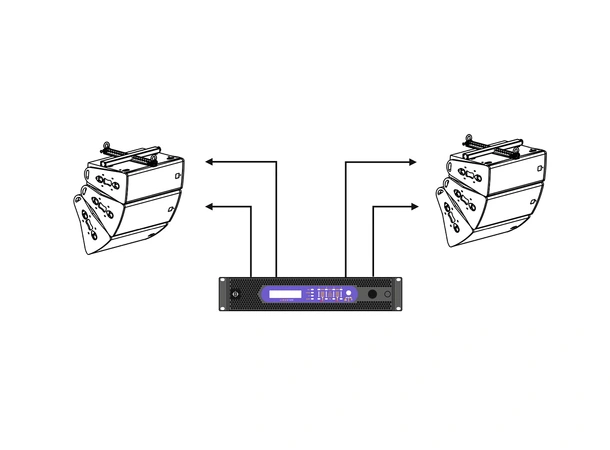

Mounted horizontally, each APS-Pro-D cabinet provides a fixed 10° vertical coverage and can be flown singly or with additional APS-Pro cabinets in vertical arrays to match the system’s output to any requirement. Horizontal coverage can be changed between 60°, 90°, and 120°, and asymmetrical configurations of 75°, 90° and 105° by using different InstaFit APS-COUPLER configurations.

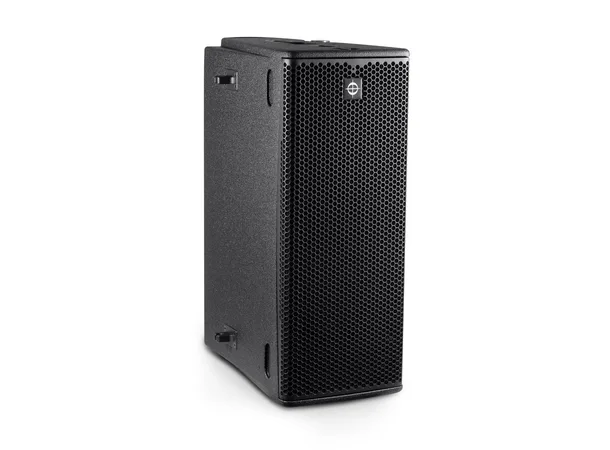

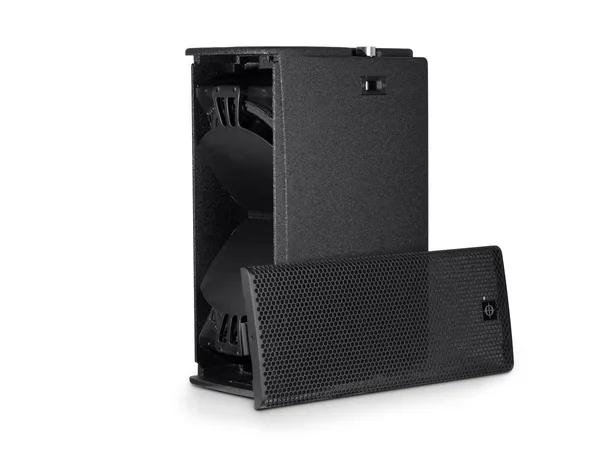

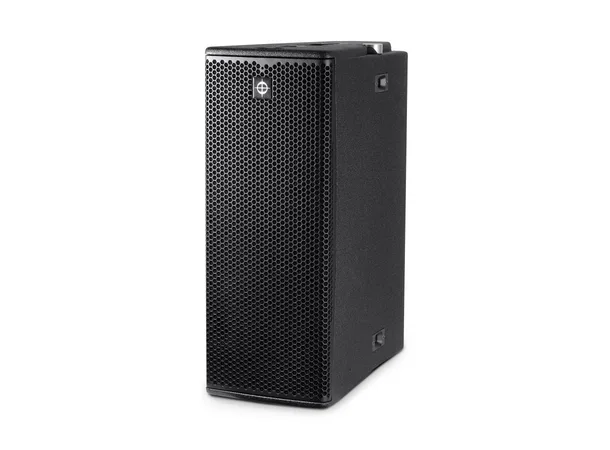

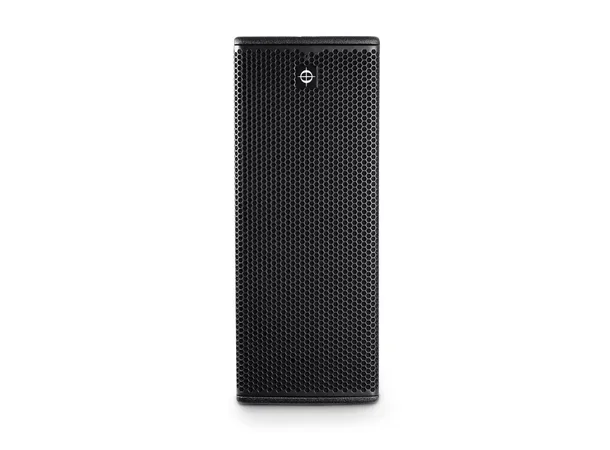

Mounted vertically, each APS-Pro-D cabinet provides a fixed horizontal coverage of 10°, with the variable dispersion now being in the vertical plane.

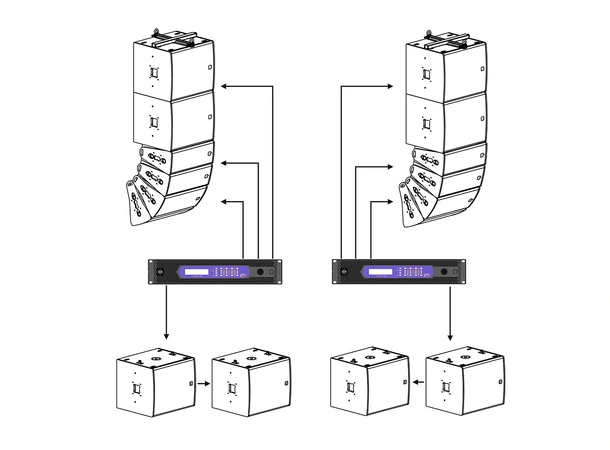

When paired with APS-SUB, an APS-Pro system extends down to 28 Hz. APS-SUB can be flown with APS-Pro beneath or used as a base for interlocked ground stacks or with pole-mounted APS arrays.
