Description

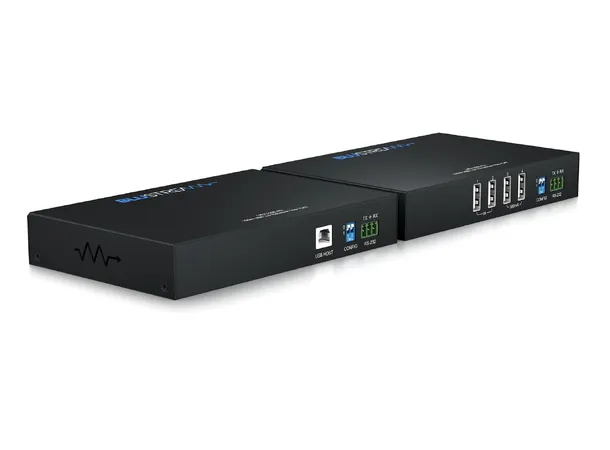

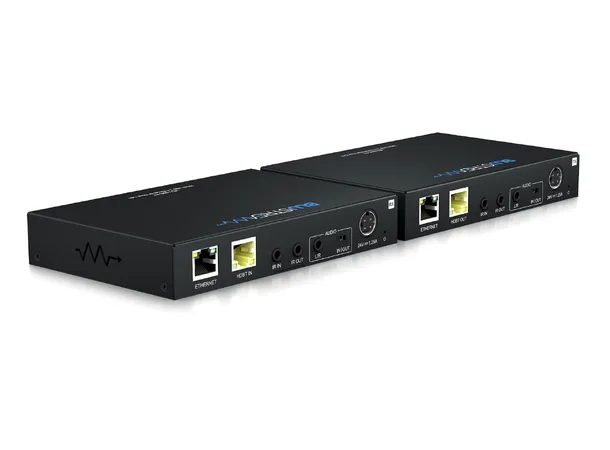

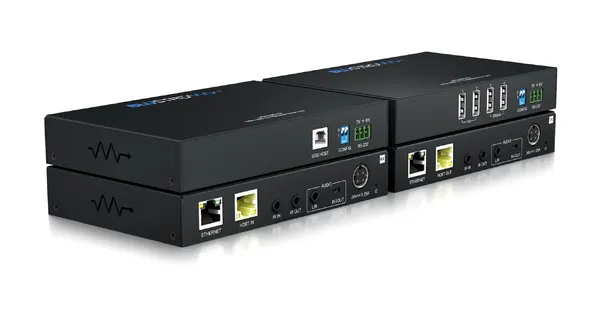

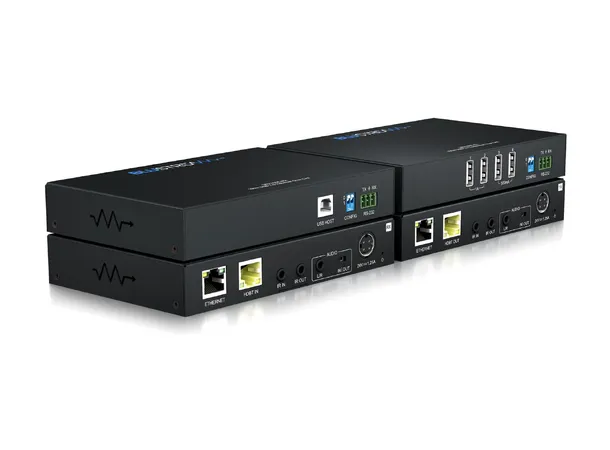

The UEX100E-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB 2.0 data, 2ch analogue audio, and control signals up to 100m over a single CAT cable.

The UEX100E-KIT allows up to 4x USB devices to be connected to a single USB host with support for a combined transmission data bandwidth of up to 480Mbps, and is backwards compatible with USB 1.1 devices.

The UEX100E-KIT also provides bi-directional Power over Cable (PoC), bi-directional IR, RS-232, 2ch analogue audio, and 100Mbps Ethernet/LAN pass through.

Box Contents

1 x UEX100E-TX
1 x UEX100E-RX
1 x USB-A to USB-B cable (1m)
1 x 24V/1.25A DC power supply
2 x Mounting kits
1 x Quick Reference Guide

Key Features

• Extends USB up to a distance of 100m over a single CAT cable using HDBaseT™ technology*

• Supports USB 2.0 signal extension

• Backwards compatible with USB 1.1 devices

• Transmitted data bandwidth up to 480Mbps (combined)

• 1 x USB-B port on the receiver for connection to host device

• 4 x USB-A ports on transmitter for connection to devices

• USB-A ports 1-2 support 5V 1A, USB-A ports 3-4 support 5V 500mA

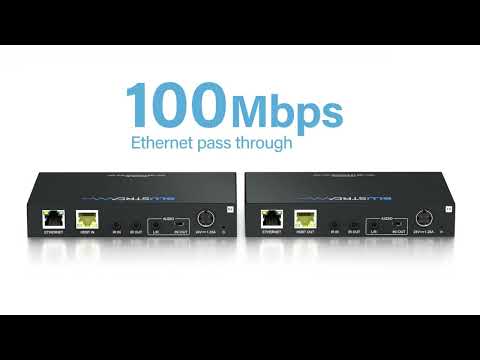

• Bi-directional Ethernet pass-through (100Mbps)

• Bi-directional IR & RS-232 pass through

• Supports 2ch PCM Analogue Audio pass through (direction selectable)

• Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver

• Simple plug and play, no driver installation or setup required

  *Signal distribution length subject to length of device / host USB cables and CAT cable type

Specifications

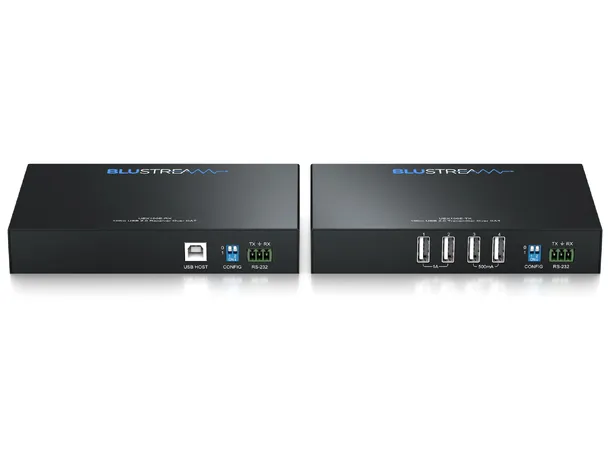

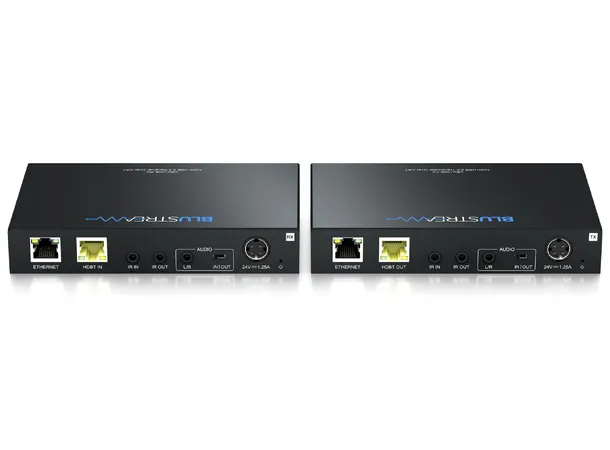

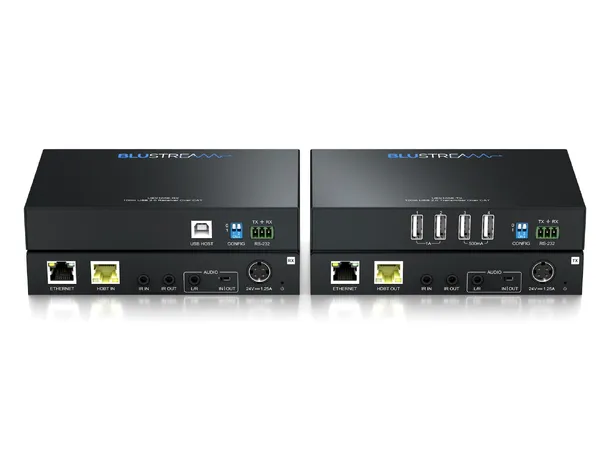

UEX100E-RX

• CAT Connector: 1 x RJ45 connector, female

• USB Port: 1 x USB-Type B

• Audio Input/Output Connector: 1x Analogue L/R audio (3.5mm stereo jack)

• Ethernet Port: 1 x RJ45 connector, female

• RS-232 Serial Port: 1 x 3-pin Phoenix connector

• IR Input Ports: 1 x 3.5mm stereo jack

• IR Output Ports: 1 x 3.5mm mono jack

• Config Switch: 2-pin DIP switch

UEX100E-TX

• CAT Connectors: 1 x RJ45 connector, female

• USB Ports: 4 x USB-Type A

• Audio Input/Output Connector: 1x Analogue L/R audio (3.5mm stereo Jack)

• Ethernet Port: 1 x RJ45 connector, female

• RS-232 Serial Port: 1 x 3-pin Phoenix connector

• IR Input Ports: 1 x 3.5mm stereo jack

• IR Output Ports: 1 x 3.5mm mono jack

• Config Switch: 2-pin DIP switch

• Power Supply: 24V/1.25A DC

• Product Dimensions (W x D x H ):  150mm x 100mm x 25mm (TX/RX)

• Shipping Weight: 1.6kg

• Operating Temperature: 32°F to 104°F (-5°C to +55°C)

• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
