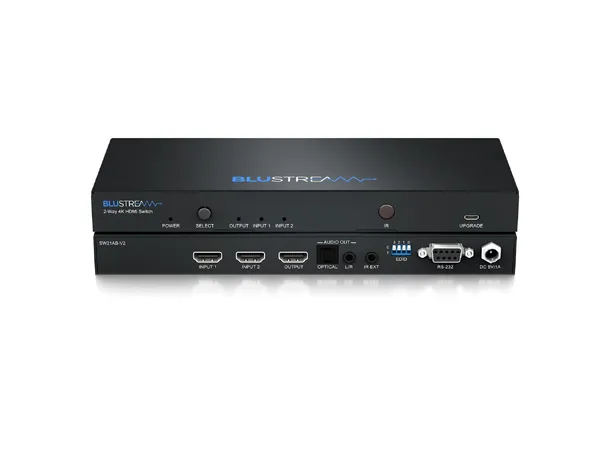

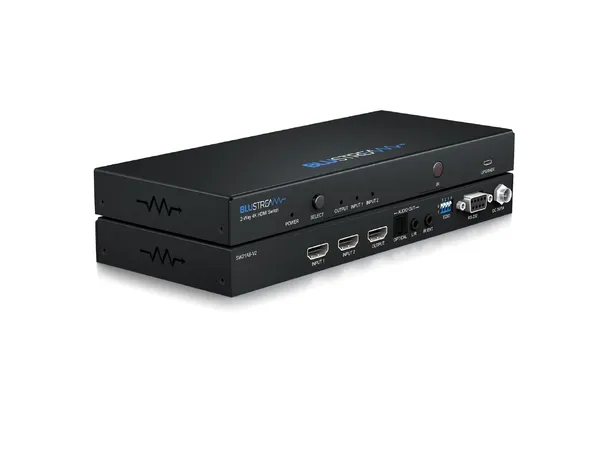

Our SW21AB-V2 is a 2-Way HDMI switch with integrated audio breakout.

The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Key Features:

• Features 2x HDMI inputs which can be switched to single HDMI output
• Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
• HDCP 2.2 compliant
• Supports 3D signal display
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
• CEC (Consumer Electronic Command) is blocked from the inputs to the end sink / display

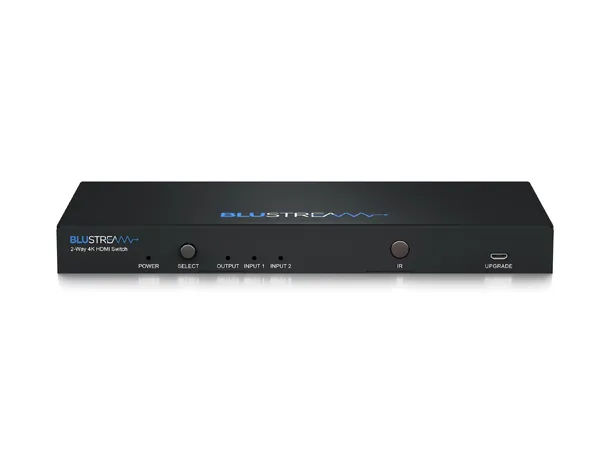

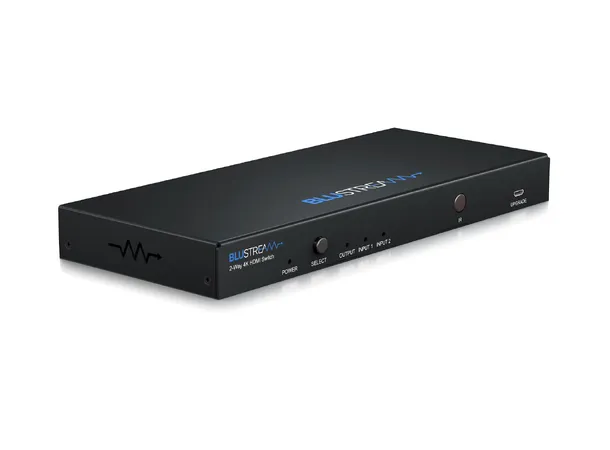

• Control via front panel and IR
• Advanced EDID management

*Auto switching only available on units with serial no. 70522400001 or above, or serial nunbers with a letter as the 4th digit (i.e xxxAxxxxxxx)

Specifications:

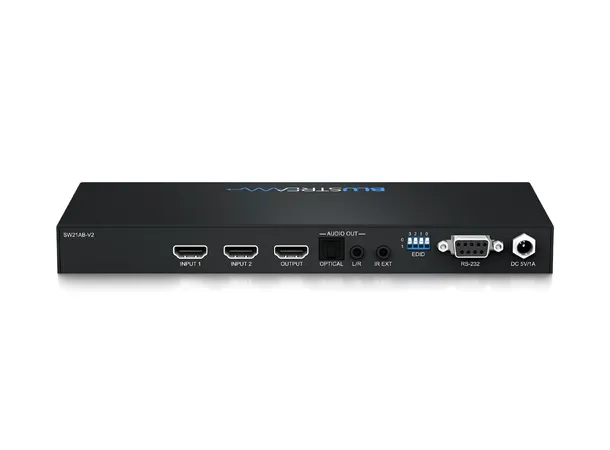

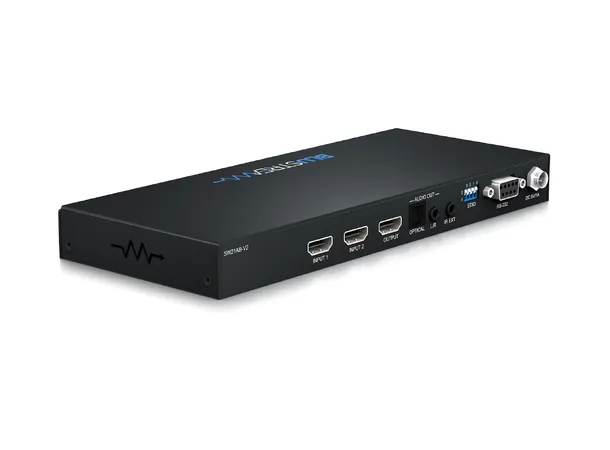

• Video Input Connectors: 2x HDMI Type A
• Video Output Connectors: 1x HDMI Type A
• Audio Output Connectors: 1x Optical (SPDIF) & 1x Analogue audio L/R (3.5mm stereo Jack)
• IR Input Ports: 1x 3.5mm stereo Jack
• Casing Dimensions (W x H x D): 196mm x 23mm x 94mm
• Dimensions including connections (W x H x D): 196mm x 32mm x 104mm
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/2A DC

Box Contents:

1 x SW21AB-V2
1 x SW21-REMOTE
1 x 5V/2A DC power supply
1 x IR receiver
1 x User manual
