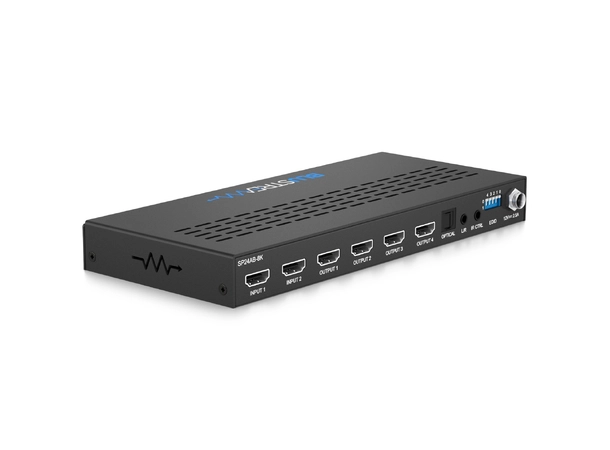

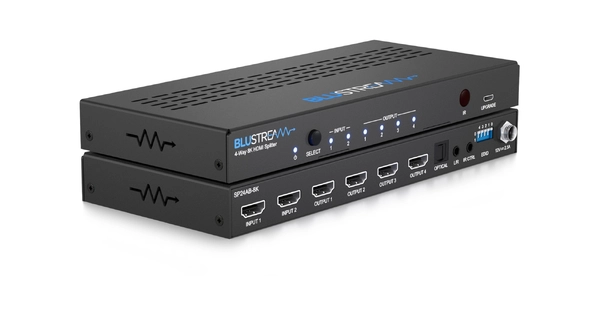

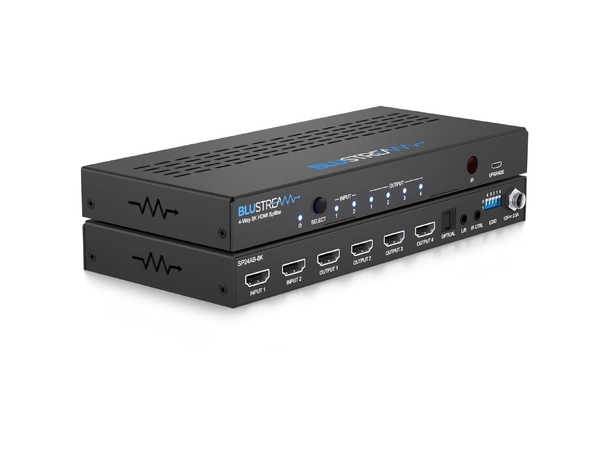

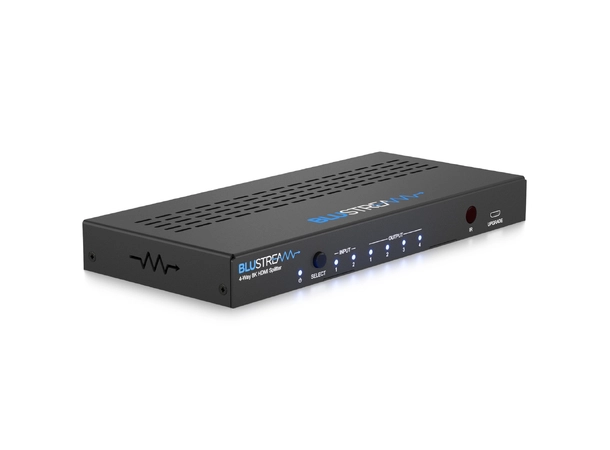

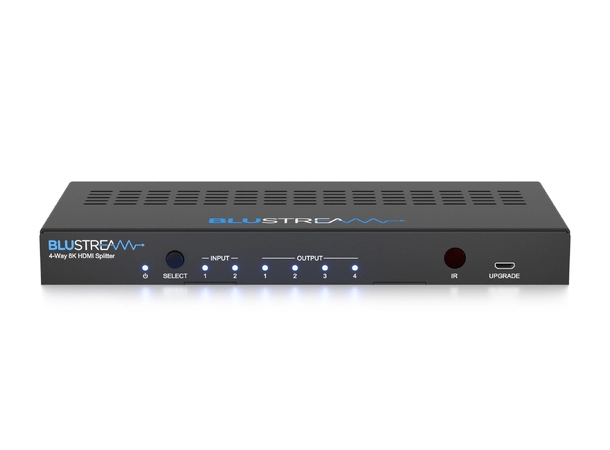

The SP24AB-8K HDMI 2.1 splitter is designed to be used where HDMI 2.1 chipset are being utilised for signals up to 8K 60Hz and 4K 120Hz.

With selection of 2 x HDMI 2.1 input sources, a single source can be distributed to up to 4 x outputs simultaneously, the SP24AB-8K can auto-switch based on detecting a 5v hot plug, a new TMDS signal; or manually using IR (remote included), or the front panel. Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. HDCP2.3 compliant, and advanced EDID management.

Key Features:

• Features 2 x selectable HDMI 2.1 inputs that are split to 4 x HDMI outputs
• Supports HDMI 2.1 specification including HDR (40Gbps maximum)
• Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
• Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Auto HDMI source switching via 5v and / or TMDS signal sensing
• Manual HDMI source switching via front panel and IR
• Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently
• 5v / 12v IR Compatible
• HDCP 2.3 compliant with advanced EDID management

Specifications:

• Video Input Connectors: 2 x HDMI Type A, female
• Video Output Connectors: 4 x HDMI Type A, Female RJ45 connector
• Audio Output Connectors: 1 x Analogue left / right audio (3.5mm stereo jack), 1 x Optical S/PDIF socket
• IR Input Port: 1 x 3.5mm stereo jack
• Upgrade Port: 1 x Micro USB connector
• Casing Dimensions (W x D x H): 212mm x 94mm x 23mm
• Power Supply: 12v/2.5A DC connector
• Box Dimensions (W x D x H): 265mm x 135mm x 90mm
• Shipping Weight: 1kg
• Operating Temperature: 32°F to 104°F (0°C to +40°C)
• Storage Temperature: -4°F to 140°F (-20°C to +60°C)

Box Contents:

1 x SP24AB-8K
1 x 12V/2.5A DC power supply
1 x IR Receiver

1 x IR Remote Control

1 x Mounting kit
4 x Rubber Feet
1 x Quick Reference Guide

Product link: https://www.blustream.co.uk/8k-solutions-sp24ab-8k
