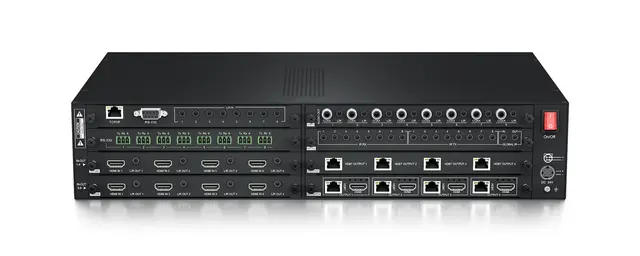

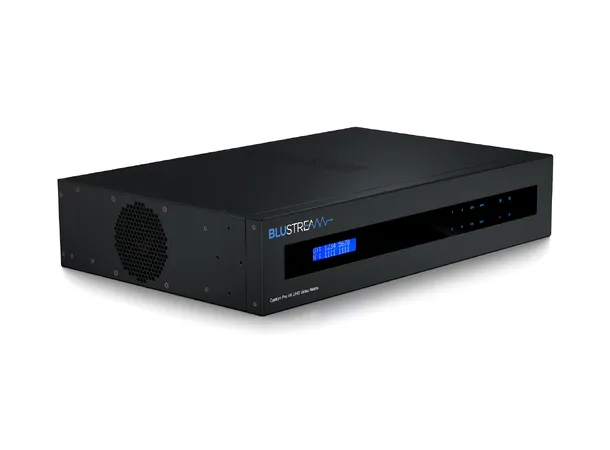

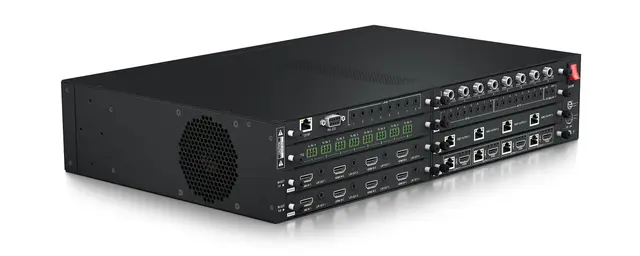

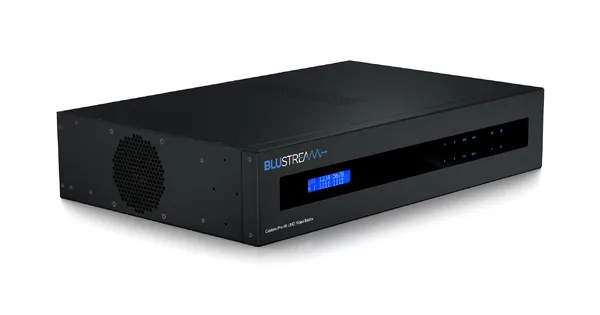

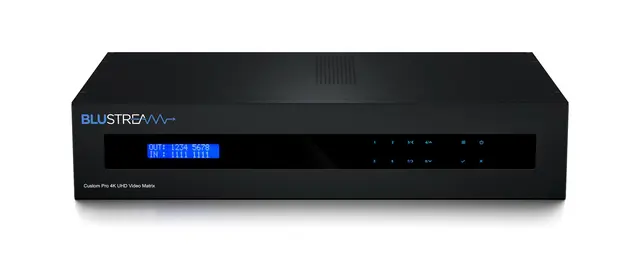

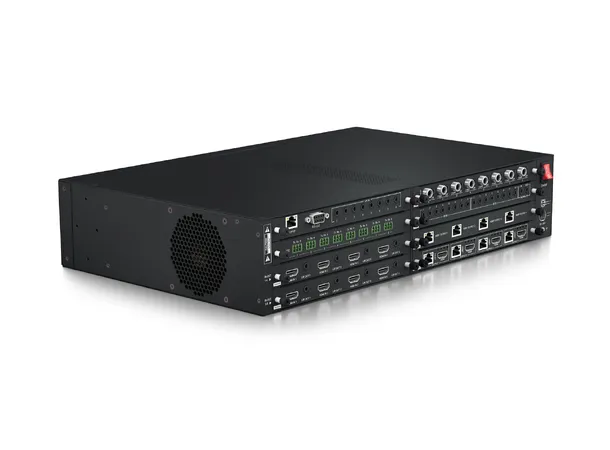

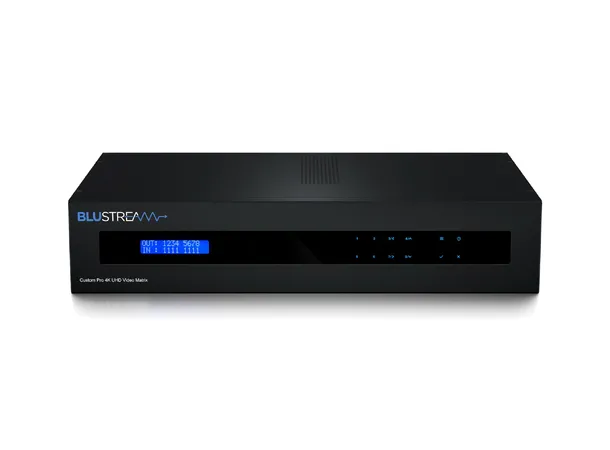

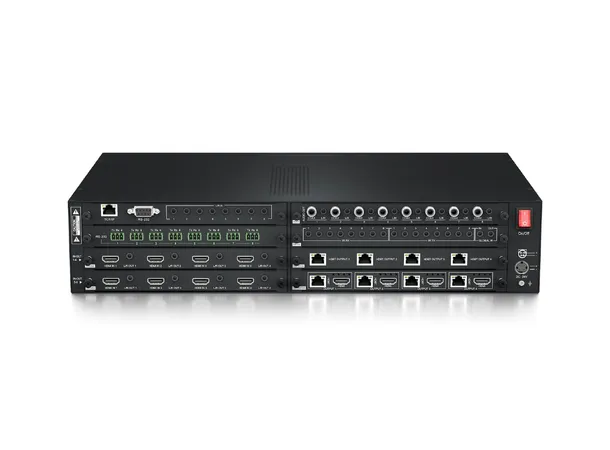

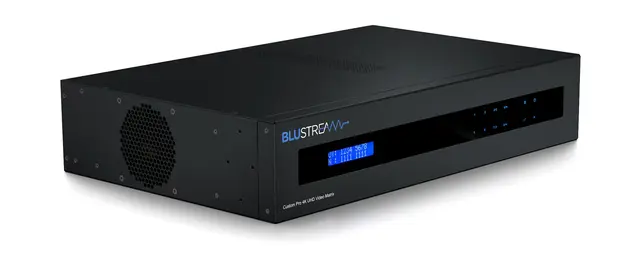

Our 100m Custom Pro 8x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market.
The PRO88HBT100CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoC up to lengths of 100m over a single CAT cable (4K HDR up to 70m) with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
The Matrix also provides advanced features including 4 x simultaneous HDMI outputs, audio breakout with line level pre amp volume control and a web browser interface module for control and configuration of the matrix.
Specifications:
• Video Input Connectors: 8 x HDMI Type A, 19-pin, female
• Video Output Connectors: 8 x HDBaseT™ RJ45 connector, 4 x HDMI Type A, 19-pin, female
• Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
• TCP/IP Control: RJ45, female
• Ethernet / Network: RJ45, female
• IR Input Ports: 9 x 3.5mm stereo jack
• RS-232 Serial Port: DB-9, female
• Rack Mountable: 2U rack height, rack ears included
• Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
• Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
• Shipping Weight: 5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 24V/8A DC
Box Contents:
1 x Custom Pro Hub Matrix
1 x PRO-8RS232
2 x PRO-IN4HAB
1 x PRO-8ABV
1 x PRO-8IR-V2
1 x PRO-OUT4TCS
1 x PRO-OUT4HTCS
*Individual boards dispatched separately for assembly by installer
1 x 24V/8A Power Supply
1 x Remote Control
1 x Rack Mounting Kit
1 x Quick Reference Guide
