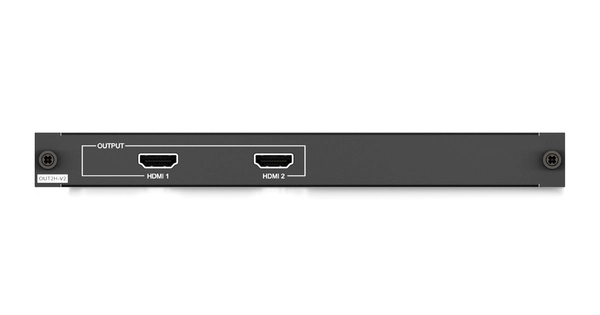

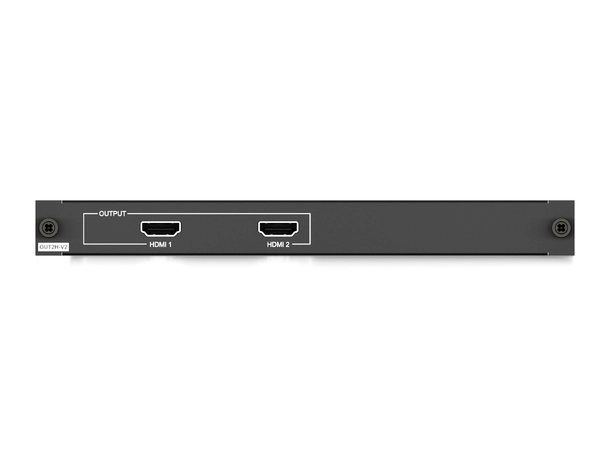

The PRO-OUT2H-V2 supports HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDCP 2.2, allowing distribution of inputs to two independent displays.

 PRO-OUT2H-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Key Features:

• Features 2 x HDMI outputs for connection to HDMI displays
• Supports HDMI 2.0 18 Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4*
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
• HDCP 2.2 Support

*For HDMI 2.0 18Gbps video distribution the PRO-OUT2H-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board

Specifications:

• Video Output Connectors: 2 x HDMI Type A, 19-pin, female
• Card Dimensions (W x H x D): 182mm x 22mm x 177mm
• Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
