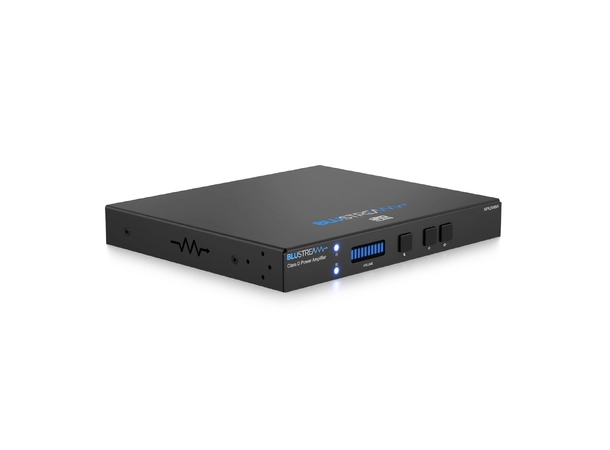

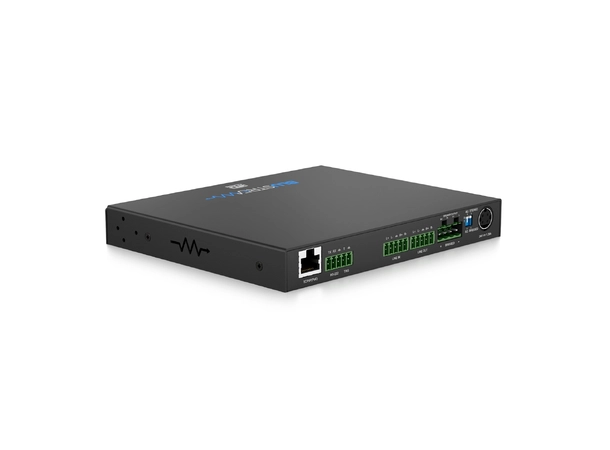

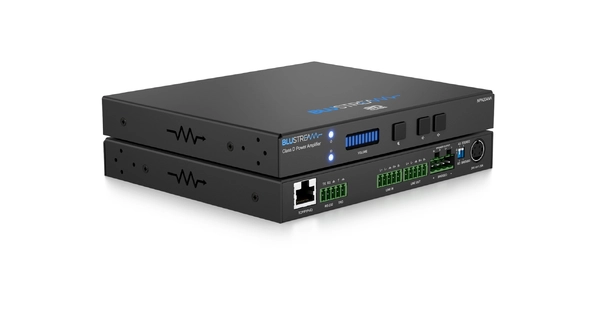

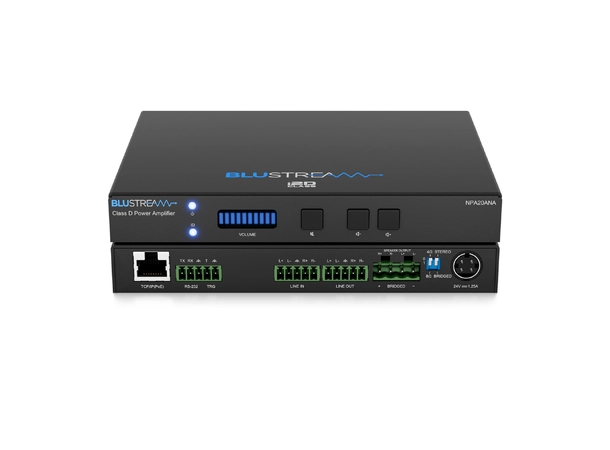

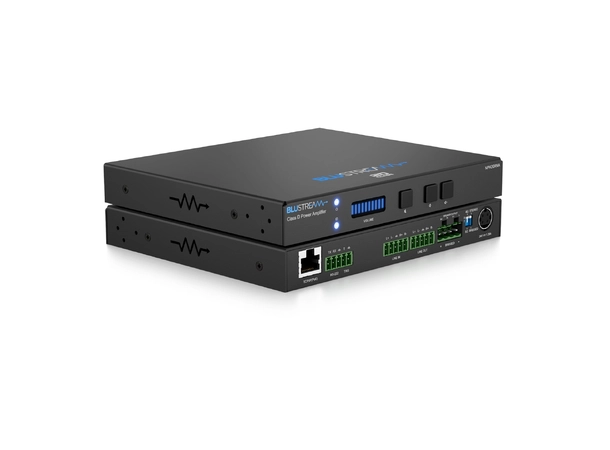

The NPA20ANA networked power amplifier features a 2 x 10W (1 x 20W mono) audio output at 4 or 8 ohm, with a 2ch balanced / unbalanced analogue audio input.
The unit can be powered via PoE or PoE+ from a compatible network switch, or locally should the switch not support PoE. The unit includes the ability to lower the amplifier power output subject to PoE capabilities, a 31 band DSP with EQ, and audio delay capabilities for lip sync correction with any associated video within the zone.
A daisy-chain audio output with a centralised control feature for linking up to 4x NPA20ANA devices, control from the front panel buttons, RS-232, IP, Web-GUI, or 12V trigger gives maximum flexibility for system integration and simplified control.
The NPA20ANA is ideal for dedicated audio delivery in smaller areas (such as bedrooms or en-suites) where larger amplifiers would be considered excessive; or for enhancing voice and audio in meeting spaces.
Key Features:
• Advanced network audio amplifier with balanced / unbalanced analogue audio input
• Supports 2 x 10W @ 4 / 8 ohm, 1 x 20W @ 4 / 8 ohm
• Supports power via PoE+ on LAN connection or local power supply*
• 2ch balanced / unbalanced audio in and out with master / slave amp control feature allowing daisy chain of up to 4x NPA20ANA amplifiers
• DSP with 31 band EQ with +3dB/-10dB and audio delay
• Local 0V / 5~12V input trigger for automated power control

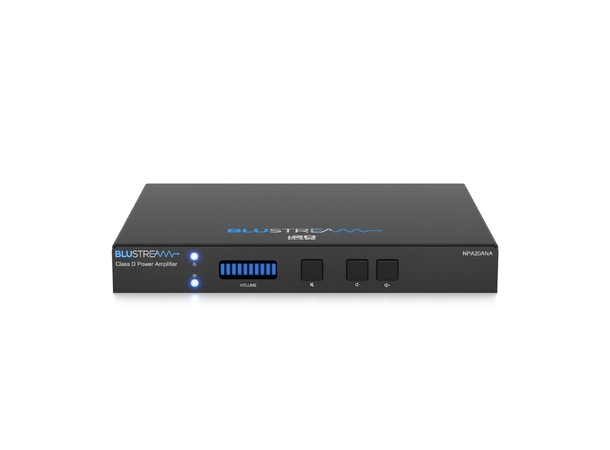

• Control via front panel buttons, RS-232 and IP
• Auto standby mode with signal sensing
• In-built web-GUI for setup and control
* Amp power limited when using PoE / PoE+
Specifications:
• Casing Dimensions (W x H x D): 169mm x 144mm x 22mm
• Shipping Weight: 1.2kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: PoE+ Type 2 Class 4, or 24v/1.25A DC 4-pin DIN (power supply not included)

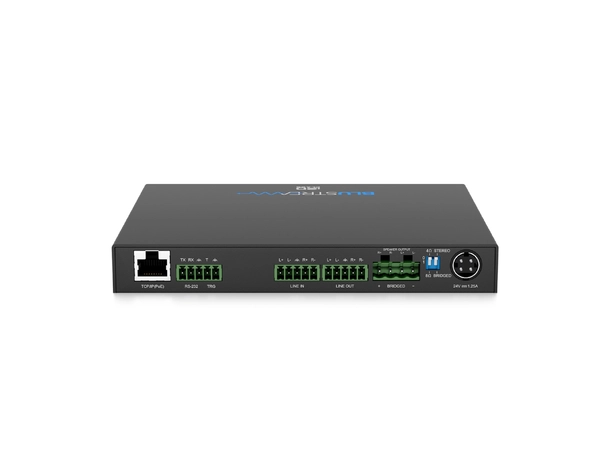

• Audio Inputs: 1 x 5-pin Phoenix connector (balanced/ un-balanced analogue audio)
• Audio Output Connectors: 1 x 5-pin Phoenix connector (balanced/un-balanced analogue audio)
• Speaker Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker)
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector
• Trigger Input: 1 x 2-Pin Phoenix connector
Box Contents:
1 x NPA20ANA
1 x Mounting Kit
1 x Quick Reference Card
Product link: https://www.blustream.co.uk/audio-amplifiers-npa20ana
