Key Features:
• Advanced 4K HDMI 2.0, or USB-C video over 1Gb managed network
• Virtually unlimited system size
• Extends HDMI or USB-C (DP Alt Mode) up to a distance of 100m over a single CAT cable
• Manual and / or auto source switching of inputs
• Supports up to 4K UHD 60Hz 4:4:4 via HDMI and USB-C connections
• Supports HDR, HDR10+ & Dolby Vision
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Advanced signal management for independent routing of RS-232, audio and video
• USB-B Host connection for KVM connectivity from the HDMI or USB-C video connections*
• PoE (Power over Ethernet) to power Blustream products from PoE switch
• Local 24V power supply (should Ethernet switch not support PoE) - PSU sold separately (part code: PS241-2PH)
• HDCP2.2 compliant with advanced EDID management
• Compatible with Blustream IP300UHD-TX/RX and IP350UHD-TX / RX products
• Dual US Decora faceplate surround and backbox compatibility
• Our IP300 Series Video over IP system features flexible deployment options including:
- Matrix distribution (requires 1Gb network switch)
- Video wall (requires 1Gb network switch)
- One-to-one HDMI extender (no network switch required)
- One-to-many HDMI extender (no network switch required)
*Please note that the USB-C connection is DP Alt Mode video only and does not carry USB data

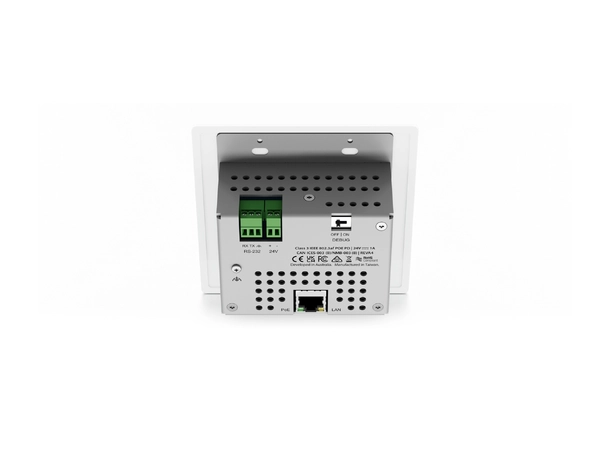

Specifications:
• Video input: 1 x HDMI Type A, female, 1 x USB Type C female
• Video output: 1 x LAN RJ45 connector
• Audio input: 1 x 3.5mm stereo jack
• Ethernet port: 1 x LAN RJ45 connector
• USB-C Charge port: 1 x USB Type C female
• USB/KVM Port: 1 x USB-Type B
• RS-232 serial port: 1 x 3-Pin Phoenix connector
• Debug Mode: 2-step switch
• Casing Dimensions (W x H x D): 90mm x 106mm x 52mm (without faceplate)
• Faceplate Dimensions (W x H x D): 115mm x 115mm x 6mm
• Backbox Mounting Depth: 45mm
• Shipping Weight: 0.6kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: PoE / 24V 1A DC (PSU: PS241-2PH - sold separately)
Box Contents:
1 x IP300UHD-WP-TX
1 x 2-piece Dual US Decora Faceplate (plastic) with backbox screws
Product link: https://www.blustream.co.uk/usb-extenders-ip300uhd-wp-tx
