Description

Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1GB Network switch.

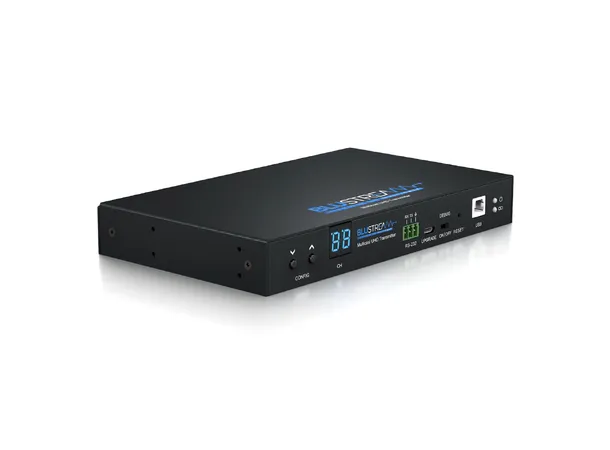

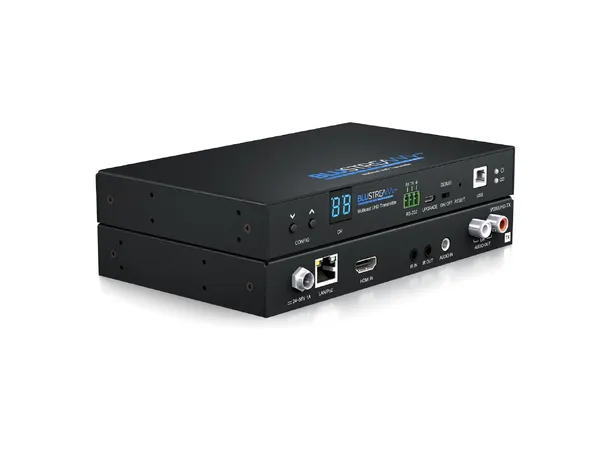

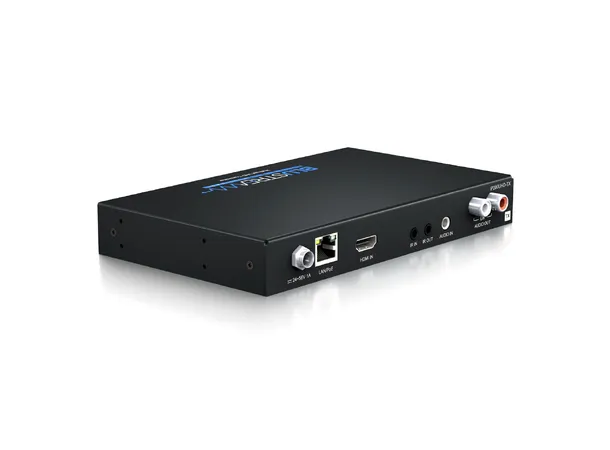

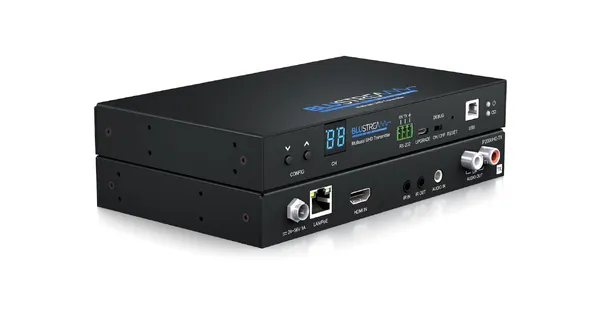

The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.

The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.

Box Contents

1 x IP200UHD-TX
1 x (IRR) IR Receiver
1 x (IR1) IR Transmitter
1 x Serial 3-pin Phoenix Connector
1 x Mounting Kit

Key Features

• Advanced UHD video over 1Gb Network

• Virtually unlimited system size

• Extends HDMI up to a distance of 100m over a single CAT cable

• Supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission

• Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video

• PoE (Power over Ethernet) to power Blustream products from PoE switch

• HDCP 2.2 compliant with advanced EDID management

• Analogue L/R audio embedding

• Analogue L/R audio breakout

• Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately

• Features 4 operational modes:

     - Matrix distribution (requires 1GB network switch)

     - Video wall (requires 1GB network switch)

     - One-to-one HDMI extender (no network switch required)

     - One-to-many HDMI extender (no network switch required)

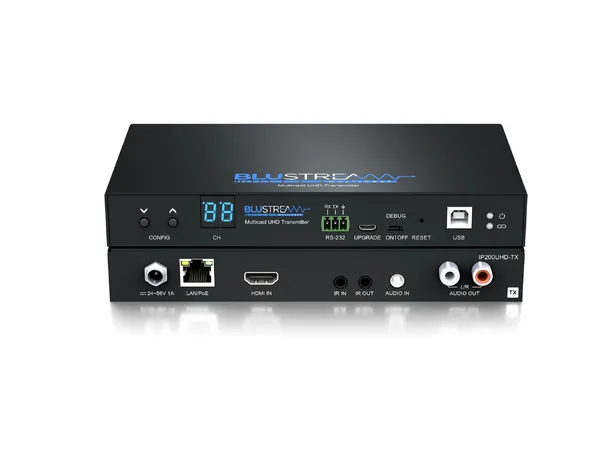

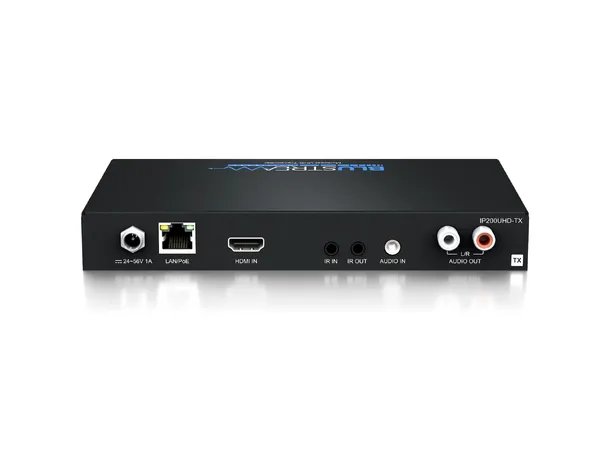

Specifications

• Video Input: 1 x HDMI Type A, female

• Video Output: 1 x LAN RJ45 connector

• Latency: 1 Frame (16-33ms depending on frame rate)

• Audio Input: 1 x 3.5mm L/R Analogue audio

• Audio Output Connectors: 2 x RCA L/R Analogue audio

• Ethernet Port: 1 x LAN RJ45 connector

• RS-232 Serial Port: 1 x 3-Pin Phoenix connector

• USB / KVM Port: 1 x USB - Type B

• IR Input: 1 x 3.5mm stereo jack

• IR Output: 1 x 3.5mm mono jack

• PoE draw: 6.0W (typical), 7.2W (max load)

• Firmware Update: 1 x Micro-USB

• Mounting Kit Included

• Dimensions (W x D x H ): 190mm x 114mm x 25mm

• Shipping Weight: 0.8kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
