Description

The Blustream HD12DB has been designed to convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within a HDMI signal into a stereo 2ch signal available on HDMI, optical and analogue audio outputs.

The HD12DB features a HDMI loop out to pass the original video and multi-channel embedded audio signal to compatible equipment, with a second HDMI output featuring video scaling of resolutions up to 4K 60Hz 4:4:4 video to various lower video formats.

This provides the perfect cost effective solution for ensuring that 4K UHD video and multi-channel audio can be distributed around a multi-room system where there are a mixture of 2ch and 5.1ch zones with multiple output resolution requirements.

Box Contents

1 x HD12DB
1 x 5V/3A DC Power Supply
1 x Mounting Kit
4 x Rubber Feet
1 x Quick Reference Guide

Key Features

• Features an in-built DAC (Digital to Analogue audio Converter) that converts 5.1ch Dolby Audio or DTS Audio to a stereo 2ch signal available on HDMI, optical and analogue audio outputs concurrently

• Supports the following audio input formats: Dolby 5.1, DTS-ES 6.1, DD+5.1, DD+2.0, PCM 5.1, PCM 2.0 *

• Features 1 x HDMI input supporting 4K UHD video (4K 60Hz 4:4:4) that is replicated to 2x HDMI outputs

• HDMI loop out will replicate the HDMI input signal up to 4K 60Hz 4:4:4 and 5.1ch Dolby Audio & DTS Audio

• HDMI output 2 features a video scaler allowing the output resolution to be set to the following formats:

  - 3840x2160@60Hz

  - 3840x2160@50Hz

  - 3840x2160@30Hz

  - 3840x2160@25Hz

  - 4K DCI@25Hz 4:4:4

  - 4K DCI@30Hz 4:4:4

  - 4K DCI@50Hz 4:4:4

  - 4K DCI@60Hz 4:4:4

  - 1920x1080@60Hz

  - 1920x1080@50Hz

  - 1280x720@60Hz

  - 1280x720@50Hz

  - 1920x1200@60Hz

  - 1680x1050@60Hz

  - 1024x768@60Hz

• HDMI audio breakout to downmixed analogue L/R audio and downmixed optical digital outputs concurrently

• HDCP 2.2 compliant with advanced EDID management


  *NOTE: This product does not support decoding of DTS CD bitstreams. Playback of this format may produce undesirable noise.

Specifications

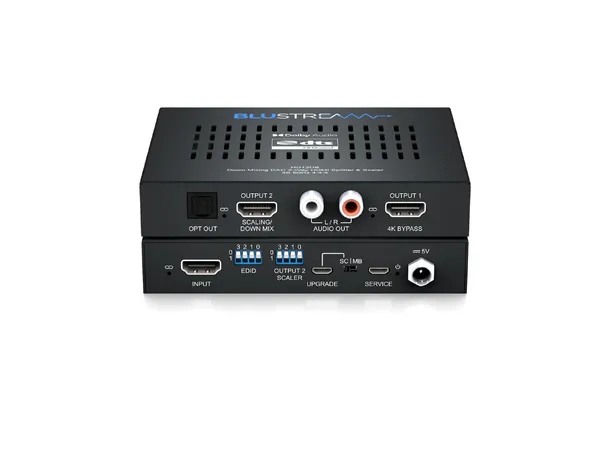

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female

• Video Output Connectors: 2 x HDMI Type A, 19-pin, female

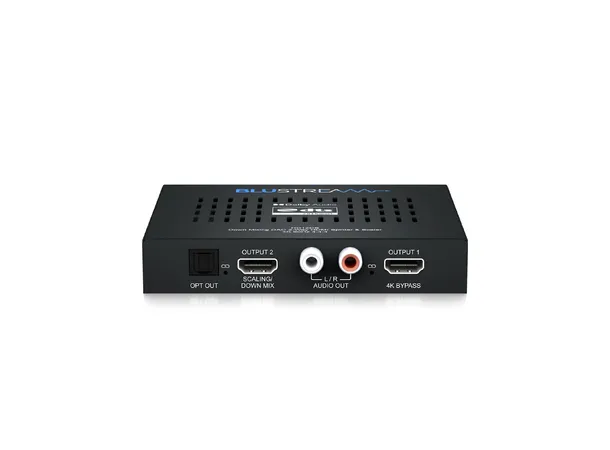

• Audio Output Connectors: 1 x Optical (Toslink), 2x RCA analogue left / right

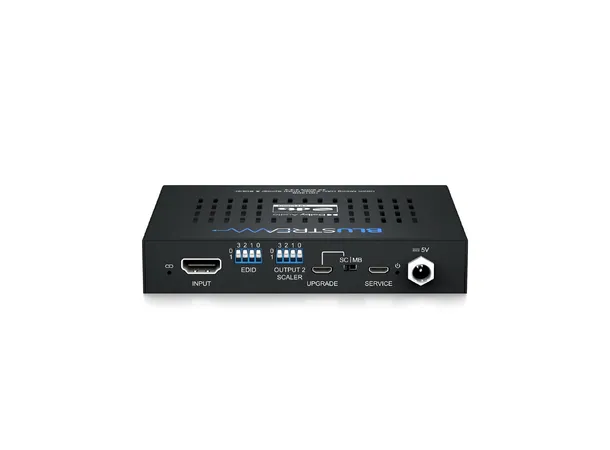

• EDID: 4-pin DIP switch

• Resolution: 4-pin DIP switch

• Product Upgrade: 2 x Micro USB female

• Dimensions (W x H x D): 127mm x 23mm x 104mm, without feet

• Shipping Weight: 1.0kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Power Supply: 5V/3A DC
