Description

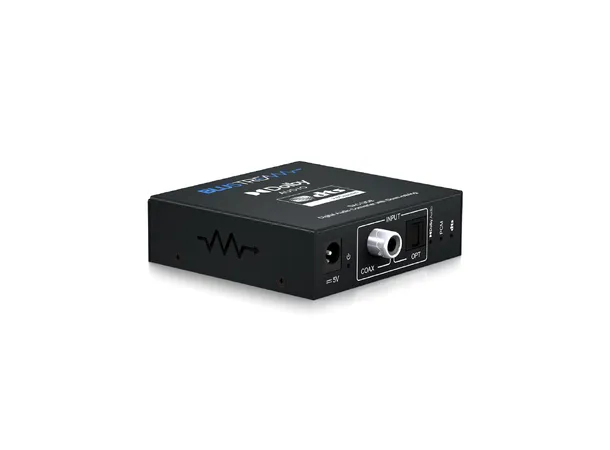

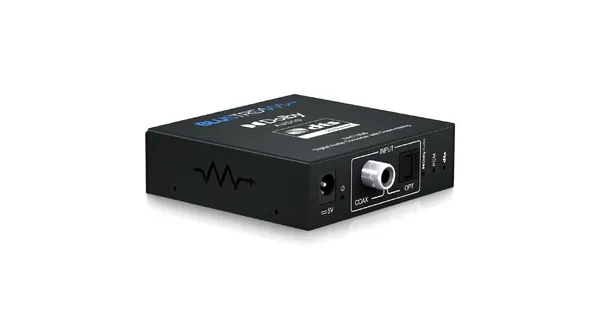

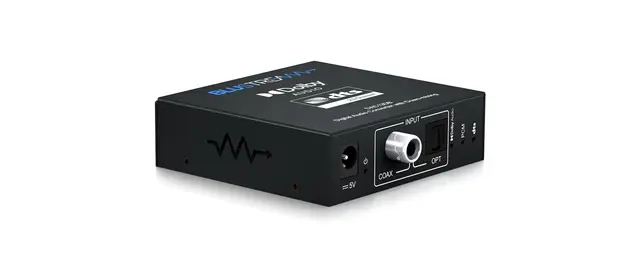

The Blustream DAC13DB has been designed to convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within an optical or coaxial audio signal into a stereo 2ch signal available on optical, coaxial and analogue audio outputs.

Box Contents

1 x DAC13DB
1 x Mounting Kit
1 x 5V/1A DC Power Supply
1 x Quick Reference Guide

Key Features

• Downmixes 5.1ch Dolby Audio and DTS Audio from optical Toslink or coaxial digital audio input signals from a compatible source device to 2ch stereo audio

• Simultaneously outputs downmixed 2ch audio via analogue, optical Toslink or coaxial digital audio outputs

• Dolby Audio and DTS Audio formats supported:

  - PCM 2ch

  - Dolby Digital 2ch

  - Dolby Digital 5.1ch

  - DTS 2ch

  - DTS 5.1ch

• Supports audio signals up to 24-bit with sampling rates up to 96kHz

Specifications

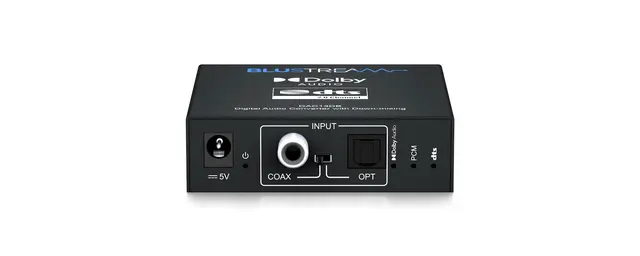

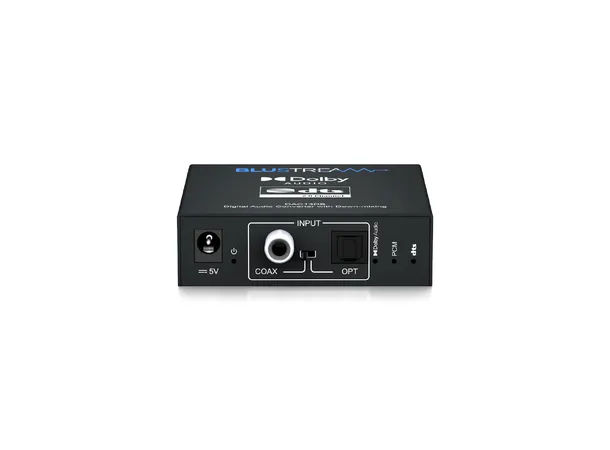

• Audio Input Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital

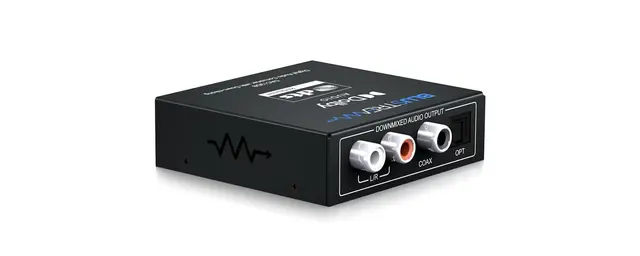

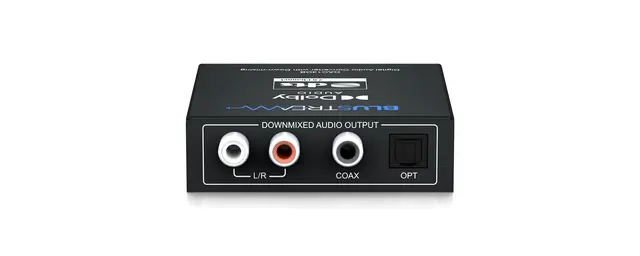

• Audio Output Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital, 2 x RCA Stereo Analogue (L/R)

• Casing Dimensions (W x D x H): 80mm x 76mm x 24mm (without connections)

• Dimensions (W x D x H): 80mm x 91mm x 24mm

• Shipping Weight: 0.2kg

• Operating Temperature: 32°F to 104°F (-5°C to +55°C)

• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

• Power Supply: 5V/1A DC


  Note: Specifications are subject to change without notice. Weights and dimensions are approximate.
