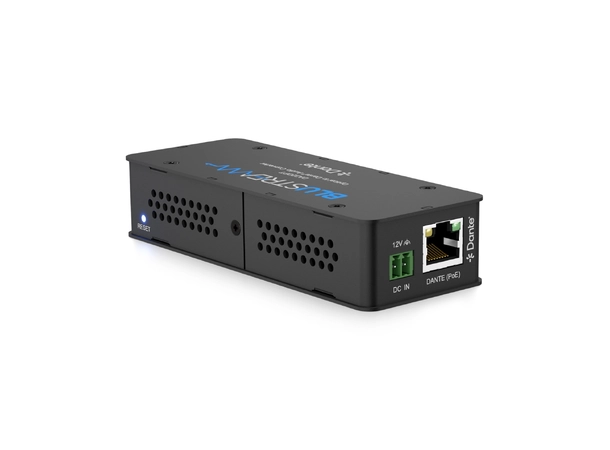

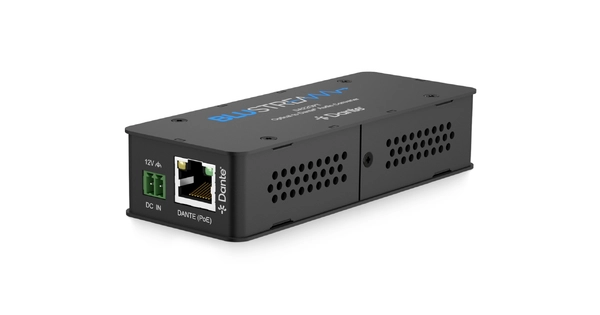

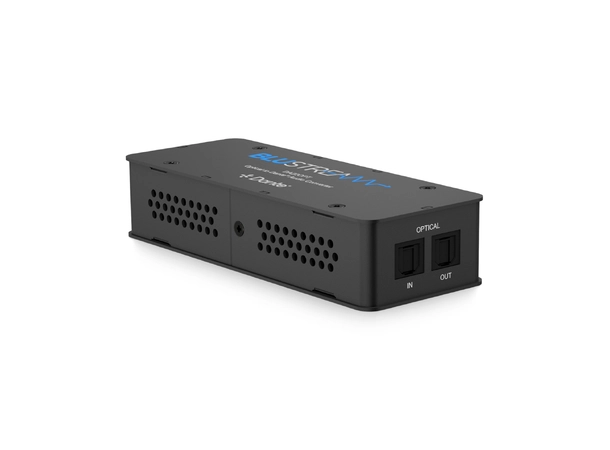

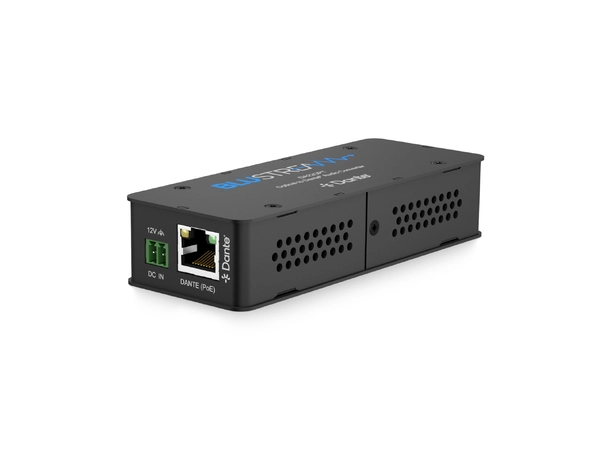

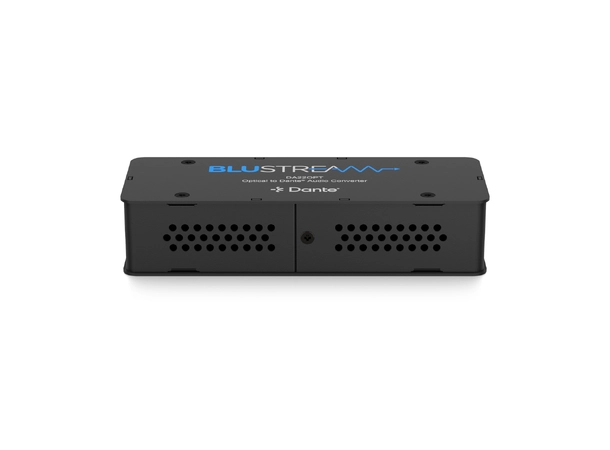

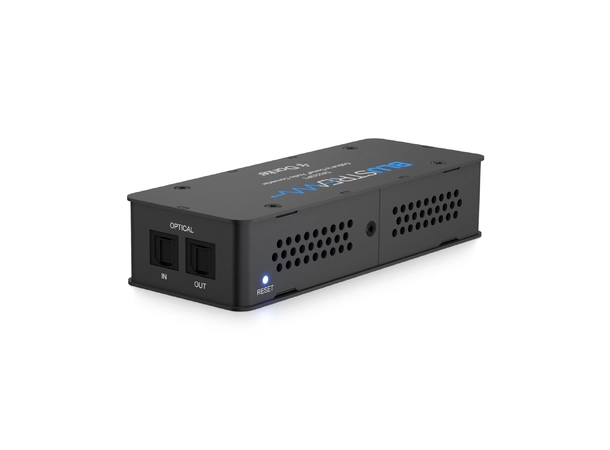

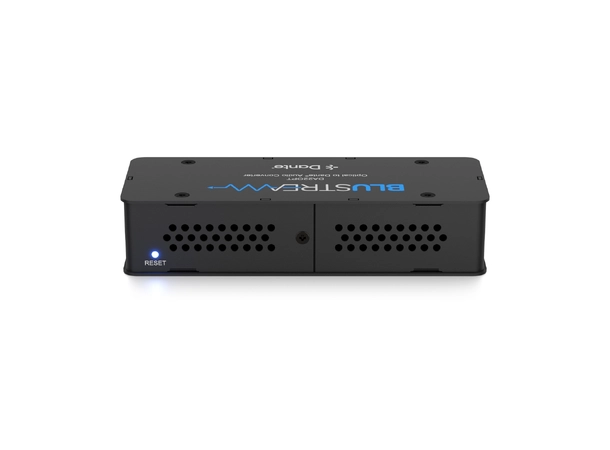

Our DA22OPT has been designed to both encode 2ch optical S/PDIF audio to a Dante® digital signal, and decode a Dante® digital signal to 2ch optical S/PDIF audio.

The DA22OPT is a plug & play device that is powered using PoE (Power over Ethernet). The DA22OPT also supports AES67 RTP audio transport.

Key Features:

• Encodes 2ch optical S/PDIF audio to a Dante® digital signal
• Decodes a 2ch Dante® digital signal to optical S/PDIF audio
• Optical S/PDIF signal can be routed from Input to Output by binding the connection in Dante Controller
• Supports: 44.1, 48, 88.2 & 96kHz sample rates @ 16, 24 & 32-bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
• +6dB / -24dB input sensitivity and output gain control adjustment
• Supports AES67 RTP audio transport
• Features Class 0 802.3af PoE for powering of product from any PoE switch
• In-built web-GUI for configuration and control
• Local 12V power supply input for when network switch does not support PoE*

* PS121PH power supply sold separately

Specifications:

• Audio Input/Output Connectors:
        1 x RJ45, female (100 Mbps Dante® network)

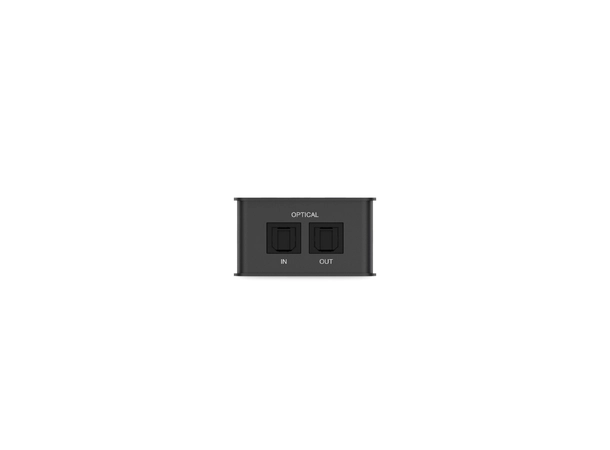

        2 x Optical Toslink (S/PDIF)
• Casing Dimensions (L x W x H): 120mm x 47mm x 26mm
• Shipping Weight: 0.3 Kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
• Power Supply: Class 0 IEEE 802.3af POE PD, or 12V power supply (sold separately)

Box Contents:

1 x DA22OPT
1 x Quick Reference Guide
