Description

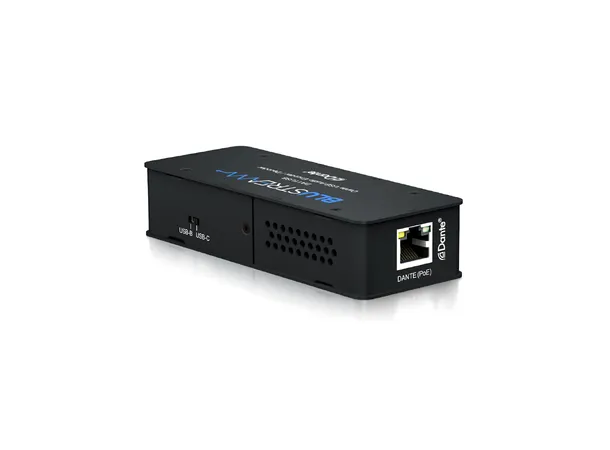

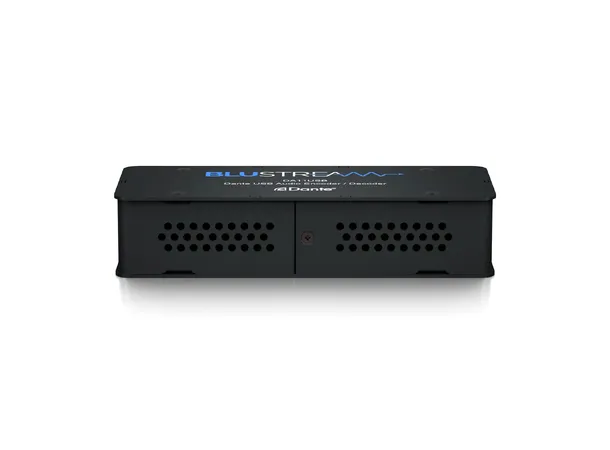

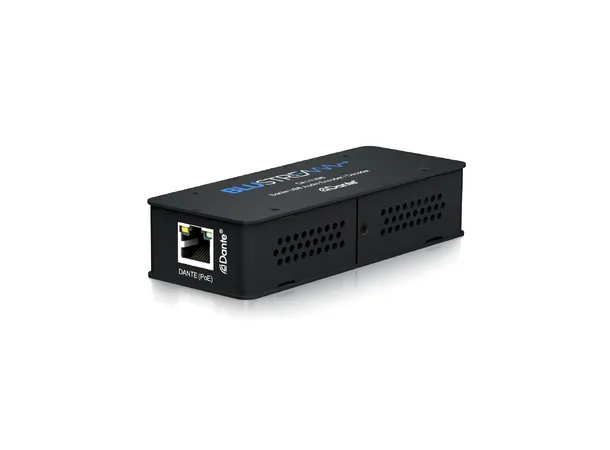

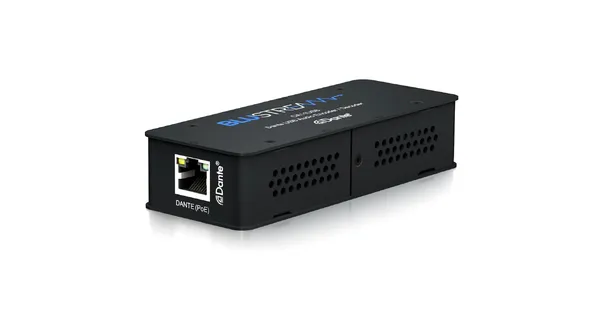

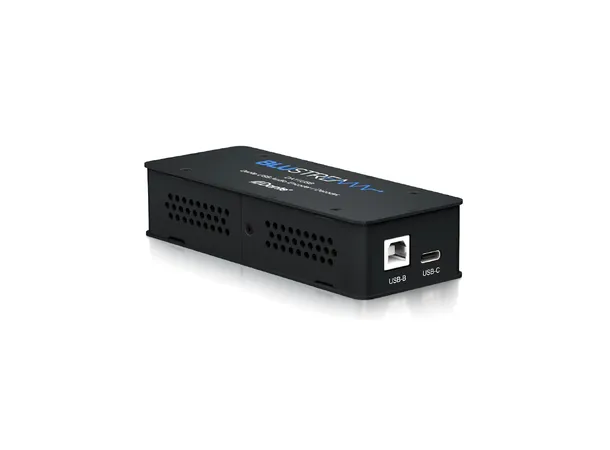

Our DA11USB has been designed to both encode 2ch USB audio to a Dante® digital signal, and decode a Dante® digital signal to 2ch USB audio.

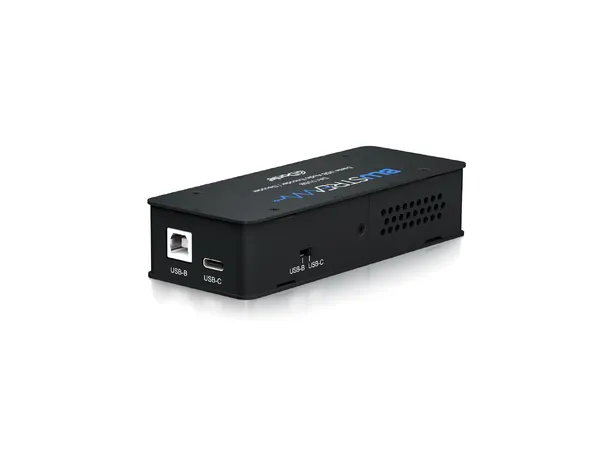

The DA11USB features both USB Type-B and USB-C connections, selectable via a switch, and is a plug & play device that is powered either using PoE (Power Over Ethernet), or with 5V from the USB device. The DA11USB also supports AES67 RTP audio transport.

Box Contents

1x DA11USB
1x USB-A to USB-B cable - 1m
1x USB-C to USB-C cable - 1m
1x Quick Reference Guide

Key Features

• Encodes 1ch USB audio to Dante® digital signal

• Decodes a Dante® digital signal to USB audio

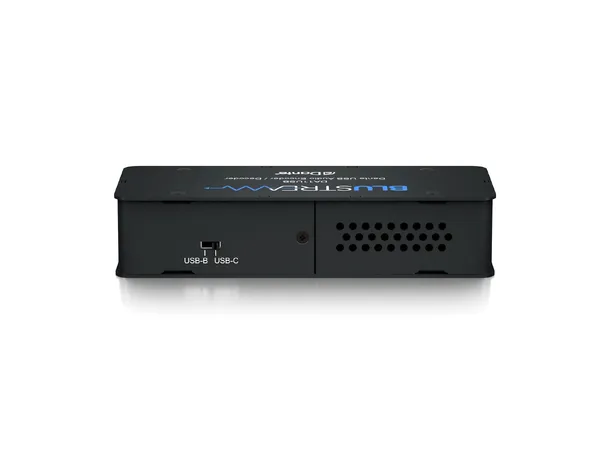

• Selectable USB audio between USB Type-B and USB-C inputs

• Compliant with USB Audio Device Class Specification V1.0

• Supports  44.1 & 48 KHz sample rates @ 16 Bit

• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)

• Supports AES67 RTP audio transport

• Features Class 3 IEEE 802.3af PoE for powering of product from any PoE switch

• Supports power via 5V  USB for when network switch does not support PoE

  *Dante® is a registered trademark of Audinate Pty Ltd

Specifications

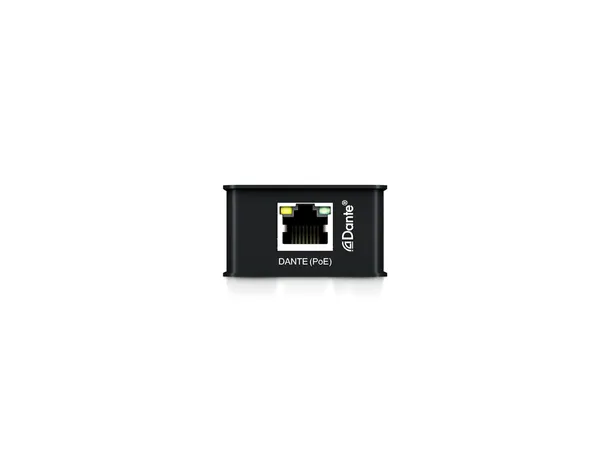

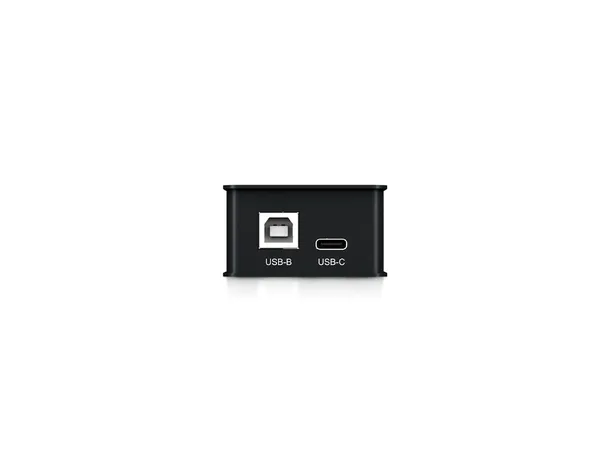

• Audio Input Connectors: 1x RJ45, female (100Mbps Dante® network), 1x USB Type B female, 1x USB Type C female

• Audio Output Connectors: 1x RJ45, female (100Mbps Dante® network), 1x USB Type B female, 1x USB Type C female

• Casing Dimensions (W x H x D): 120mm x 26mm x 47mm

• Shipping Weight: 0.3kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature : -4°F to 140°F (-20°C to 60°C)

• Power Supply: Class 3 IEEE 802.3af PoE, or 5V USB
