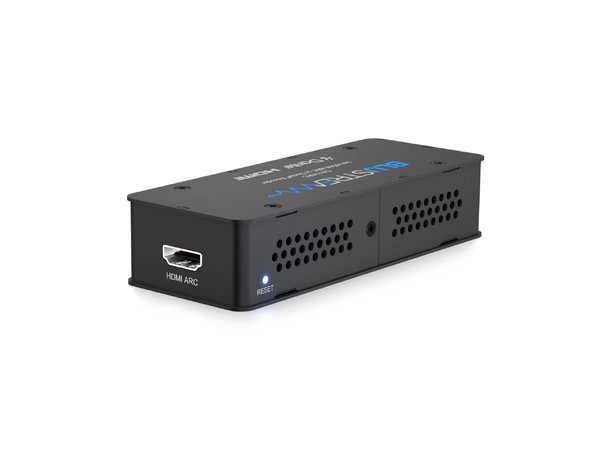

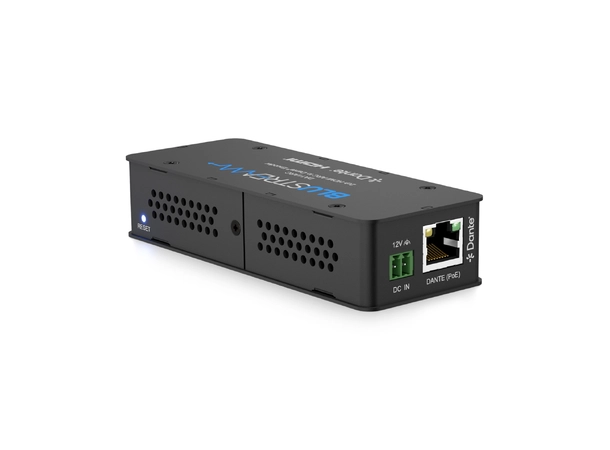

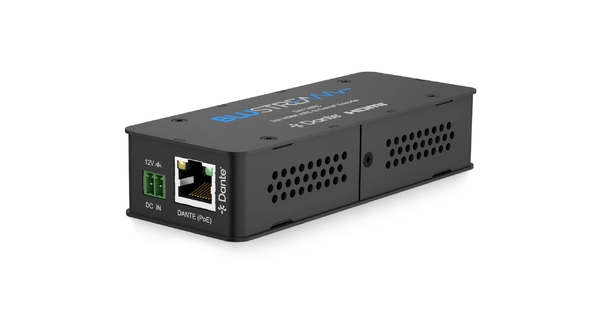

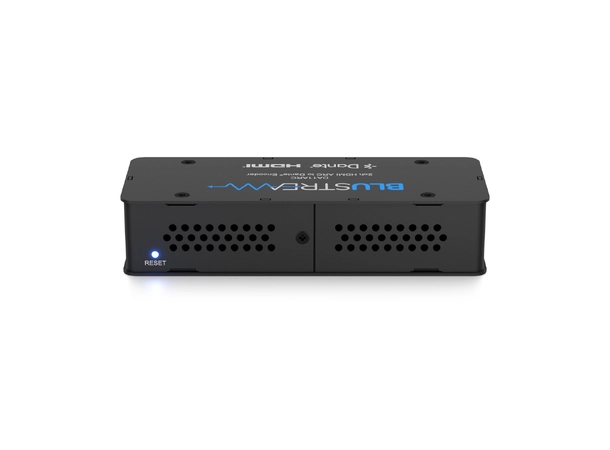

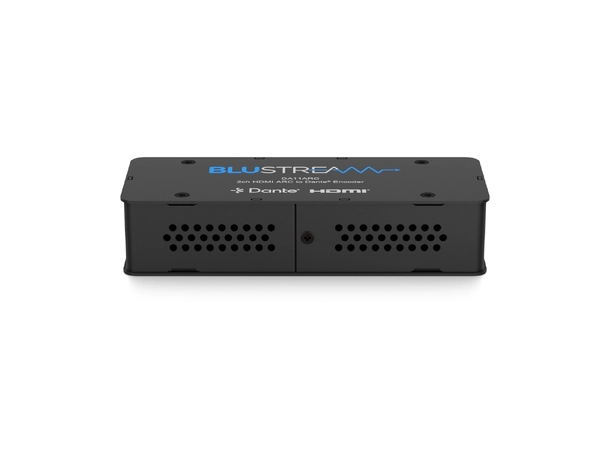

Our DA11ARC has been designed to encode HDMI ARC (Audio Return Channel) 2ch audio to a Dante® digital signal.

The DA11ARC is a plug & play device that is powered using PoE (Power Over Ethernet). The DA11ARC also supports AES67 RTP audio transport.

Key Features:

• Encodes HDMI ARC (Audio Return Channel) 2ch audio to a Dante® digital signal
• Supports: 44.1, 48, & 96kHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
• Input sensitivity/volume control adjustable via CEC, web GUI or API
• Supports AES67 RTP audio transport
• Features Class 0 802.3af PoE for powering of product from any PoE switch
• Local 12v power supply input for when network switch does not support PoE*

* PS121PH power supply sold separately

Please Note: The DA11ARC will only decode a 2ch HDMI ARC signal and is not compatible with multi-channel HDMI audio codecs.

Specifications:

• Casing Dimensions (L x W x H): 120mm x 47mm x 26mm
• Shipping Weight: 0.3 Kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
• Power Supply: Class 0 IEEE 802.3af POE PD or 12V/1A DC 2-pin Phoenix connector
• Audio Output Connector: 1 x RJ45, female (100 Mbps Dante® network)

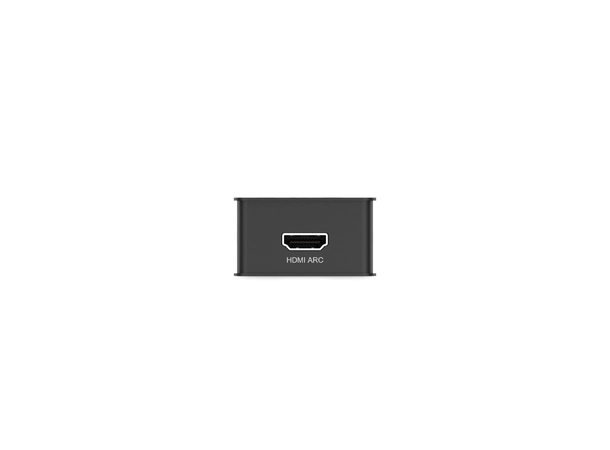

• Audio Input Connector: 1 x HDMI, female (2ch ARC audio only)

Box Contents:

1 x DA11ARC
1 x Quick Reference Guide
