Description

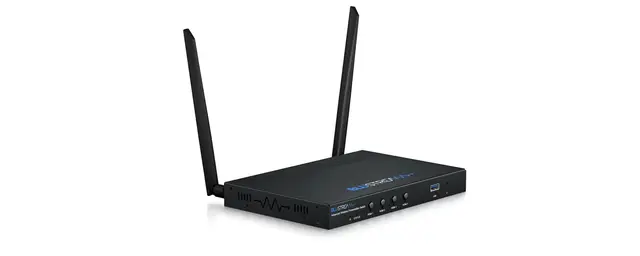

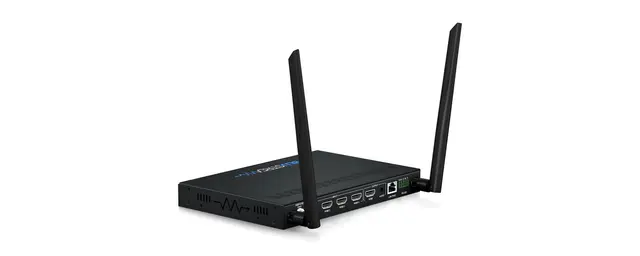

The AMF41W is an advanced 4K multi-format presentation switch featuring 4 x HDMI, AirPlay and Miracast® inputs to a single HDMI output.

The AMF41W provides enhanced features including localised 2.4/5G WiFi hotspot, seamless switching, multi-view presentation, video scaling, and web-GUI for control and configuration.

The AMF41W also features auto display control via RS-232, manual or automated source selection and control via front panel, and TCP/IP. The AMF41W is an ideal product for your boardroom, classroom or huddle-space application.

Box Contents

1 x AMF41W
1 x 12V/2A DC power supply
1 x 4-pin Phoenix connector (RS-232)
2 x Antenna
1 x Mounting kit
1 x Quick reference guide

Key Features

• Features 4 x HDMI, AirPlay and Miracast® inputs which can be switched to a single HDMI output

• Localised 2.4G/5G WiFi hotspot to host AirPlay and Miracast® local streaming to AMF41W

• Multi-view presentation with up to 7 concurrent video signals and configurable screen layout

• Seamless switching of sources in both single, or multi-view mode

• In-built video scaler with output timing up to 4K 60Hz 4:4:4

• HDMI inputs support resolutions up to 4K UHD 60Hz 4:2:0 / 4K 30Hz 4:4:4

• Supports AirPlay mirror and Miracast® point-to-point mode (up to 1080p)

• Audio breakout to analogue L/R audio

• LAN connection for integration to existing network infratructures

• Auto display on/off feature allowing control of display via RS-232

• Web interface module for control and configuration of switch

• Control via front panel or TCP/IP with manual or auto source selection

Specifications

• Video Input Connectors: 4 x HDMI Type A, 19-pin, female

• Video Output Connectors: 1 x HDMI Type A, 19-pin, female

• Audio Output Connectors: 1 x 3.5mm stereo jack

• RS-232 serial port: 1 x 4-Pin Phoenix connector

• TCP/IP Control: 1 x RJ45, female

• USB Connectors: 1 x USB Type A female

• WiFi: 2.4G & 5G

• Casing Dimensions (W x H x D): 215mm x 25mm x 141mm (excluding antennas)

• Operating Temperature: 32°F to 113°F (0°C to +45°C)

• Storage Temperature: -4°F to 150°F (-25°C to +70°C)

• Power Supply: 12V/2A DC, screw type barrel connector
