Built on the foundation of our existing ACM platform, the ACM1000 continues to deliver the powerful core functionality our AV over IP customers rely on every day. These include one-touch configuration, intuitive drag-and-drop control via the web interface, and fully independent routing of video, audio, serial, IR, USB/KVM, and CEC signals.
The new ACM1000 introduces a complete rebuild of both the control module hardware and supporting management software. Powered by a quad-core processor, this next-generation platform unlocks a number of new intuitive features including 24/7 scheduling, enhanced source and display control, simultaneous switching, advanced presets, and pre-configured macro control. Together, these enhancements deliver greater automation, faster workflows, and a more intelligent control experience across the entire AV system.
Key Features:
• Web interface module for configuration and control of Blustream AV over IP systems
• Intuitive 'Drag & Drop' source selection with video preview feature for active monitoring of system status
• Advanced signal management for independent routing of video, audio, IR, RS-232, USB/KVM, and CEC (AVoIP platform dependent)
• Auto system configuration using in-built 'Setup Wizard'
• Dual RJ45 LAN connections to bridge business / home network to AV over IP video distribution network, resulting in:
- Better system performance as network traffic is separated (different networks, or VLAN's)
- No advanced network setup required
- Independent IP address per LAN connection
- Allows for simplified TCP / IP control of AV over IP system
• Dual RS-232 ports for control of the AV over IP system, and passthrough of control commands to remote third party devices
• 5V/12V IR integration for control of AV over IP system
• Configurable GPIO ports for integration with 3rd party products
• Direct control command processing allowing IP to IR, serial or CEC to any end point in the system
• GUI based source and display remote for direct control using IR, serial and CEC
• 24/7 scheduling functionality
• Macro functionality for recall of multiple commands from a schedule, GPIO, or API command
• Grouping of receivers for instant recall of input switching to multiple displays
• Preset functionality for recalling set I/O's from a single GUI button press or API command
• PoE (Power over Ethernet) to power Blustream product from PoE switch
• Local 12V power supply (optional) should AV over IP network not support PoE
• 3rd Party drivers available for major control brands
Specifications:
• Dimensions (W x D x H ): 190mm x 93mm x 25mm
• Product Weight: 0.5kg
• Shipping Weight: 0.9kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Draw: 4W (max)

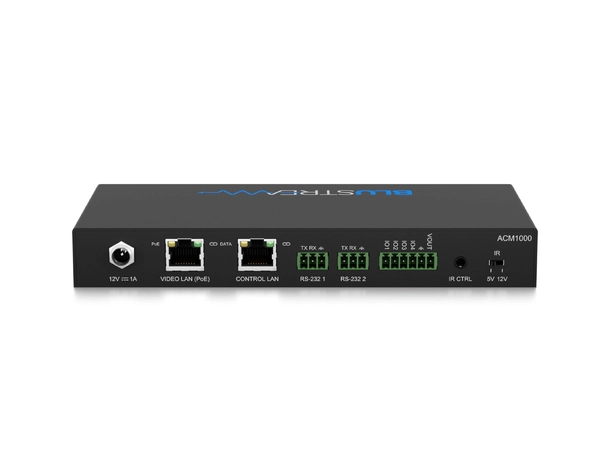

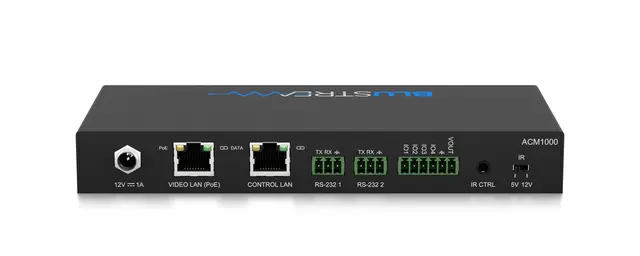

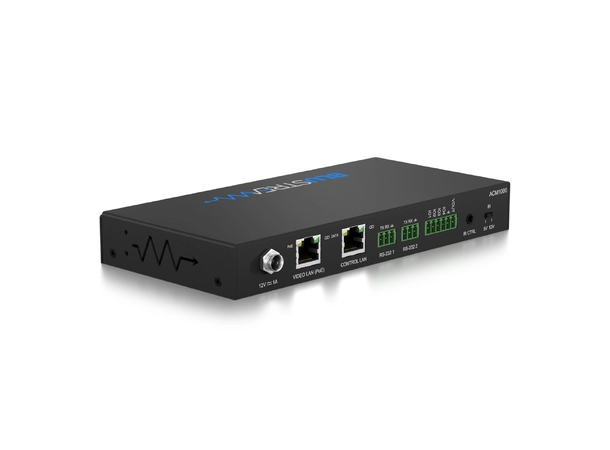

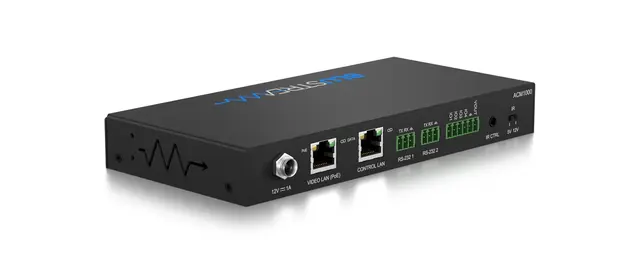

• Ethernet port: 2x 1Gb LAN RJ45 connector (1x PoE support)
• RS-232 serial port: 2x 3-Pin Phoenix connector
• I/O port: 1x 6-Pin Phoenix connector
• IR Input ports: 1x 3.5mm stereo jack
• Product upgrade: 1x Micro USB, 1x USB Type-A, female
• Power Supply: PoE or 12V/1A DC
Box Contents:
1 x ACM1000
4 x Rubber Feet
1 x Mounting Kit
1 x Quick Reference Card
Product link:
https://www.blustream.co.uk/4k-video-over-ip-jpeg2000-acm1000
