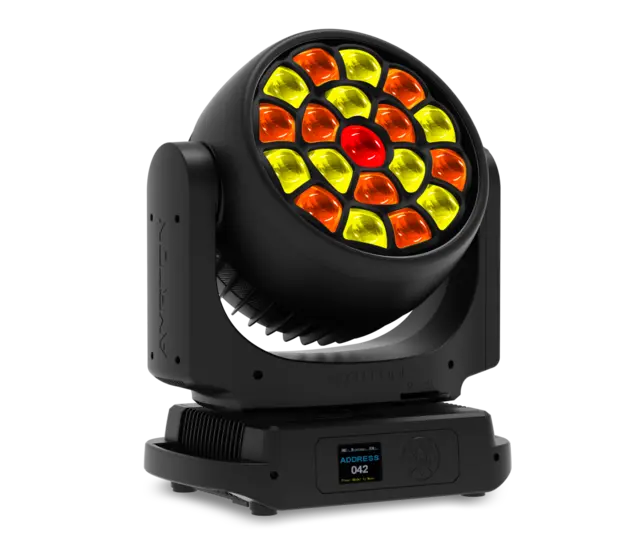

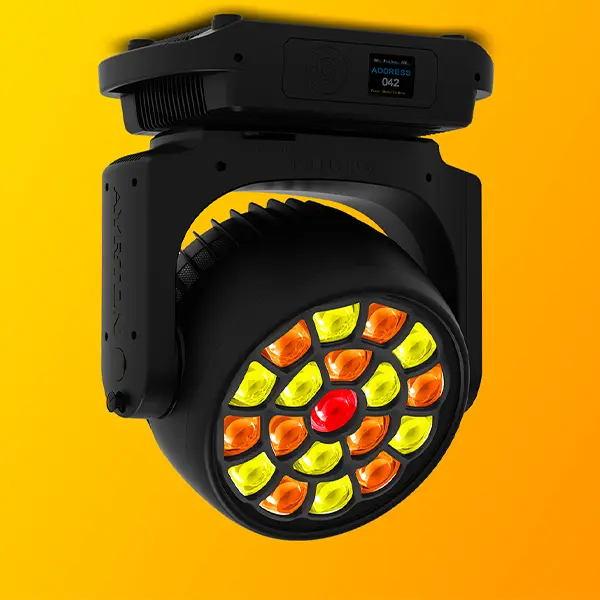

Ayrton ARGO 6 Wash CRI = 86

23 Kg, 19x40W, 4° - 56°, 13' Lumen, IP65

Varenr: 019640
88 692,-eks mva.
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Ikke på lager (21 dager)
BeskrivelseTeknisk infoDokumenter
Beskrivelse

Bringing you a sensation of freedom has always been one of Ayrton’s most sincere promises. For the first time in its history, Ayrton is launching a weather-sealed effects luminaire that offers as much creative potential indoors as outside – Argo 6 Wash.

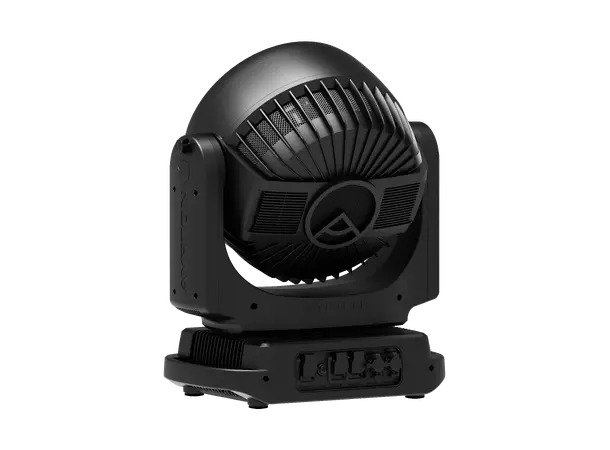

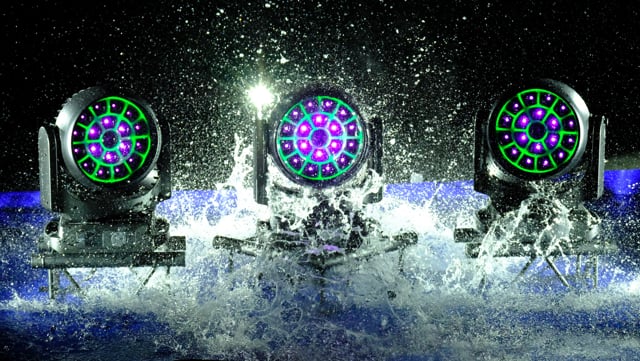

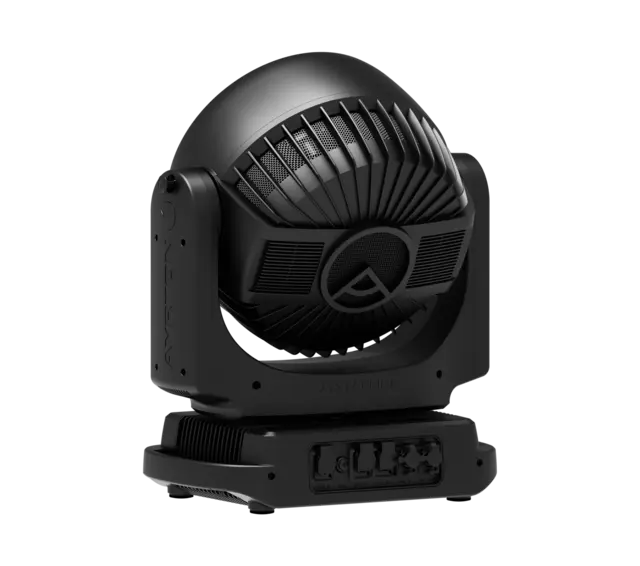

This luminaire presents a minimalist design incorporating features for total protection against harsh weather with easier internal access. The anti-reflective treated glass window guarantees an optimal visual result and offers increased performance. The placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling.

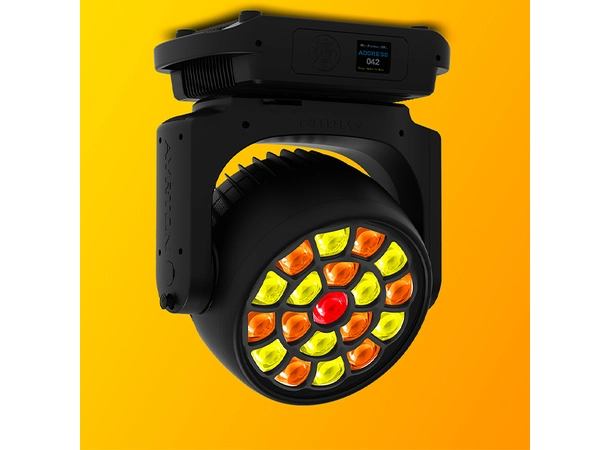

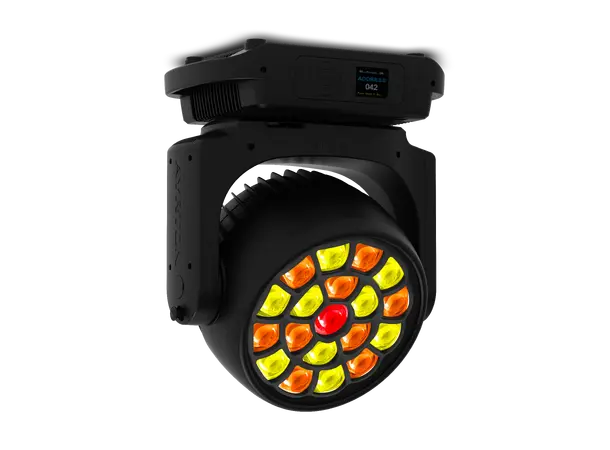

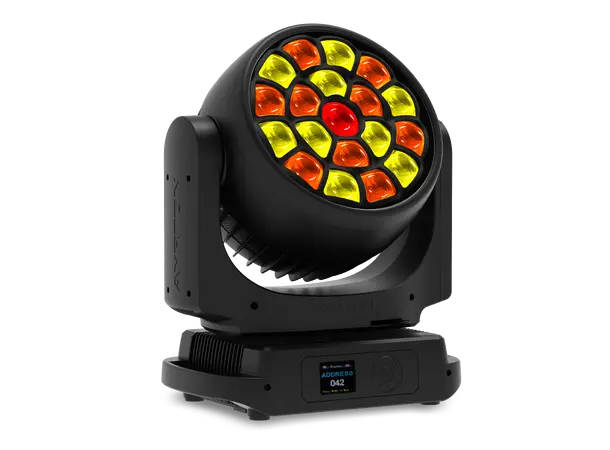

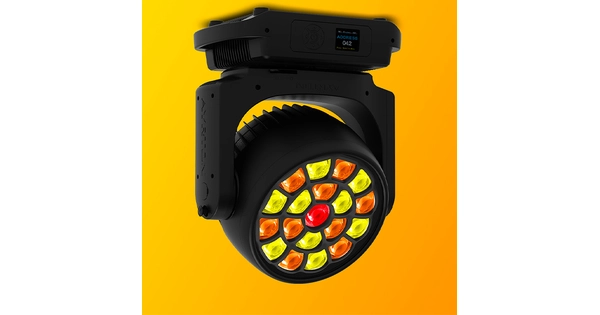

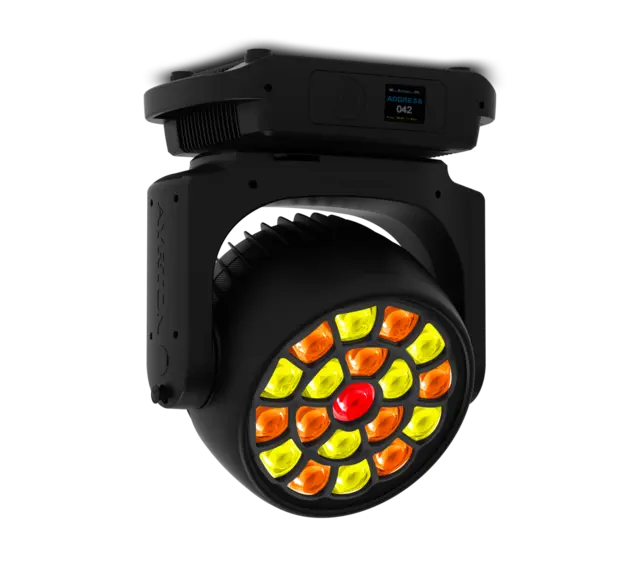

The power and visual performance of Argo 6 Wash is ensured by a proprietary optical system consisting of a cluster of 19 lenses in PMMA with a diameter of 280 mm, combined with 19 glass light guides with an output surface made of an optical micro structure.
Argo 6 Wash  can obtain a highly intense beam with a zoom ratio of 14:1 and a wide zoom range from 4 ° to 56 °. Argo 6 Wash is equipped with 19 LEDs of 40 Watts with RGB+W additive colour synthesis that can obtain light output of 13,000 lumens. For the first time, Ayrton has provided individual control of the LEDs on Wash version and added a virtually infinite library of effects. Argo 6 Wash is a precise machine that can obtain perfect colour reproduction. A complete library of pre-programmed colours allows you to quickly create subtle, dense and contrasting swaths of light. Its black honeycomb and perfect separation of the light sources help to significantly boost the level of contrast. It can be used alone or in combination with the main LED matrix. By allowing for more precision and exactness, Argo 6 Wash adds a breath of creativity. Rediscover a new sense of pure freedom.

Form/ZIP for Argo 6 Wash is not included!

Teknisk info

Produktinformasjon

Colours
  • 4.29 billion colours (8-bit resolution)
  • Sophisticated 4 colours RGB-W mixed, reaching high Colour Rendering Index
  • Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
  • Virtual colour wheel, including most usuals white colour temperature presets
Compliance
  • EU (EMC & LVD)
  • US (Safety & EMC)
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • UL 1573
  • FCC Part 15, Subpart B: 2018
Control
  • ArtNet™ & sACN protocol through Ethernet cable
  • Choice of 3 DMX modes (from 26 to 67 DMX channels)
  • DMX 512, through DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • Local control panel, with LCD display
Cooling System
  • Advanced cooling system
  • Selectable auto, stage & studio ventilation modes
  • Self-adjusting variable speed fans
  • Safety protection against temperatures excesses
Dimmer / Strobe
  • Electronic dimmer, 0 to 100% no colour variation
  • Strobe effect, with speed adjustment from 1 to 25
Effects
  • 2D & 3D graphical effects capabilities
  • Built-in pattern effects
  • Effects can be coupled with beam, wash or matrix
Farge Sort
Hardware Features
  • 5 menu buttons to set functions
  • Graphic LCD display for addressing and functions
  • IP65 PowerCON TRUE1 male connector
  • IP65 RJ45 IN / OUT connectors for ArtNet
  • IP65 XLR 5-pin male and female connectors
  • Excess temperature protection
Housing
  • Front window in Glass IK08 rated
  • Heatsinks in aluminium
  • IP65 protection rating
  • Moulded covers in, ABS PC (V0 class)
  • Moving-head skeleton, aluminium and steel metal
  • Base in die-cast aluminium
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • Exterior finish: black (Carbon)
Installation
  • Mounting points: four 1/4 turn locking fittings
  • Two Omega 1/4 turn brackets
  • Safety cable attachment point
Light source
  • 19 x 1,000 lumens RGB+W High-Power LED sources
  • CRI: up to 86
  • Flicker-free source management suitable for TV applications and all video-recorded events
  • Rated life: L70: up to 40,000 hours
  • Total luminaire output: up to 13,000 lumens
Movement
  • High-resolution stepper motors for smooth movement
  • Moving-head operated with either 8- or 16-bit
  • Moving-head range: 540° (pan), 270° (tilt)
  • Pan and tilt automatic repositioning
  • Extremely accurate positioning
Operating parameters
  • Maximum temperature (Ta max): 45°C (113°F)
  • Minimum temperature (Ta min): -10°C (14°F)
  • Minimum usage distance: 2.0 m (6.56 ft)
  • Operating positions: floor or fixed to support
Optics
  • 1 element 14:1 zoom high-resolution optic system
  • 19 truncated edges 50 mm frontal lenses
  • 280 mm front lens cluster
  • Beam aperture: 4° to 56°
  • Fast motorised linear zoom
Power Supply
  • 100 to 240 Volts – 50/60Hz
  • Power: 950 W maximum
  • Electronic supply with active PFC
Size
  • Flight-case foam: 485 x 560 x 350 mm (l x h x d)
  • Product: 436 x 536 x 280 mm (l x h x d)
Software Features
  • Information menu, hour counter, temperature
  • Local DMX addressing of luminaire
  • Remote DMX addressing, RDM DMX controller
Weight Product: 23.2 kg
