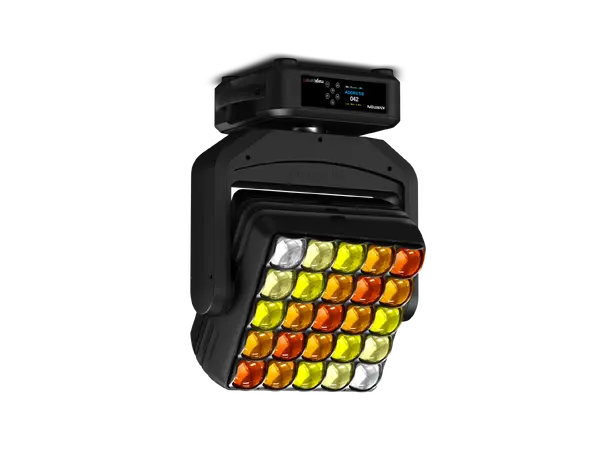

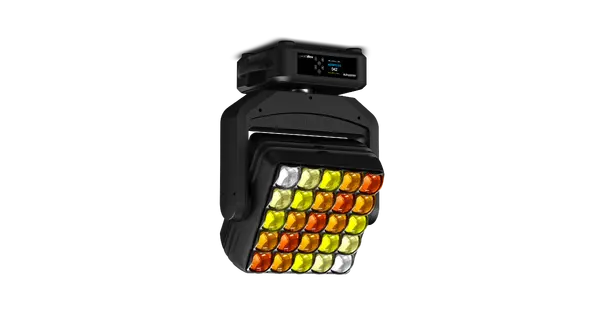

MAGICPANEL FX is the exciting new multi-function, multi-use luminaire descended from the renowned MAGICPANEL R.

With a revolutionary new optical zoom system that has no visible moving parts and a stationary transmitting lens, this proprietary system has a 15:1 zoom ratio with a range of 3.6° to 53°. The front face of MAGICPANEL FX is comprised of a 5 x 5 array of squared lenses with perfectly isolated emitters – which offer exciting new possibilities for creating 2D graphical effects. Each of the 25 squared 65 mm output lenses have an optical surface equivalent to that of an 80 mm round lens, combined with an ultra-powerful, low-etendue, LED emitter. MAGICPANEL FX produces an extremely powerful beam capable of creating extraordinarily new 3D volumetric effects.

With 900 W of total power, the versatile MagicPanel FX has 25 next-generation RGBW high-power LED emitters

and an active phase-change liquid cooling system using a heat pipe for intensive use in “wash light” mode. The continuous, unlimited, rotation on pan and tilt, first introduced on the legendary MAGICPANEL 602 in 2013, is standard. MAGICPANEL FX has serial connectivity and can be controlled using DMX-RDM, ArtNet™, sACN or wireless CRMX TiMo RDM by LumenRadio™.
