Ultra-rapid beam movement

Varenr: 015160
23 222,-eks mva.
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Ikke på lager (21 dager)
BeskrivelseTeknisk infoDokumenter

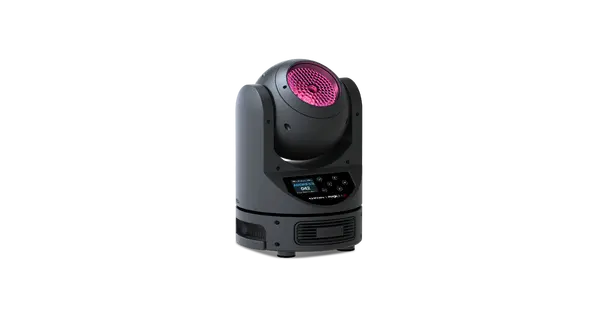

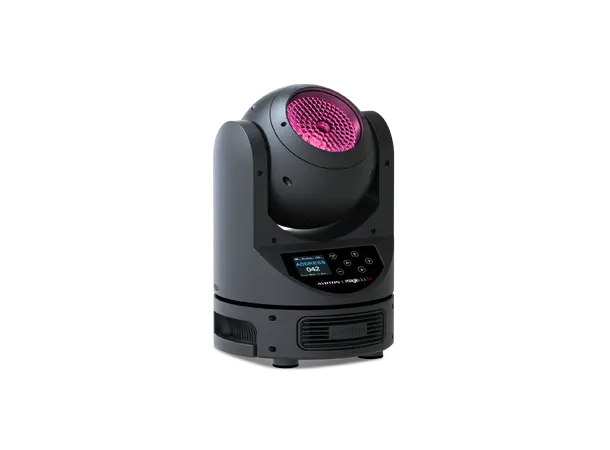

MAGICDOT SX is an optically evolved, multipurpose, variant of MAGICDOT R, with the same form factor, dimensions and features, including ultra-rapid beam movement and continuous, unlimited, rotation on pan and tilt.

The compact footprint allows multiple MAGICDOT SX luminaires to be installed with a minimum amount of space between them (patent pending). This new luminaire replaces the 4.5° fixed-focus optics with a revolutionary new 8:1 optical zoom that has a fixed transmitting lens, no visible moving parts and a incredible zoom range of 5° to 40° (patent pending). The short stroke of the zoom system permits MAGICDOT SX to switch from intense Beam mode to sweeping Wash mode virtually instantaneously.

MAGICDOT SX delivers up to 75% optical efficiency in a tight beam, when the 94 mm diameter collimator is positioned close to the transmitting lens.

This ensures great compatibility and graphical interactivity with MAGICDOT R units. In addition to DMX-RDM control, MAGICDOT SX can be controlled via wireless CRMX TiMo RDM from LumenRadio™. MAGICDOT SX is a versatile tool that meets a vast array of needs both in stage and architectural applications.

Teknisk info


  • 4.29 billion colours (8 bit resolution)
  • Dynamic colour macro effect with variable speed
  • Light beam, no colour shadows, rich pastel
  • Sophisticated 4 colours RGBW mixed
  • Virtual colour wheel
  • EU (EMC):
  • EU (LVD):
  • US Safety:
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • UL 1573
  • Choice of 2 DMX modes (from 16 to 19 DMX channels)
  • DMX 512 protocol
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • Local control panel, with LCD display
Cooling System
  • Advanced cooling system
  • Selectable auto, stage & studio ventilation modes
  • Variable speed fans for quiet operation
  • Safety protection against temperatures excesses
Dimmer / Strobe
  • Electronic dimmer, 0 to 100%
  • Strobe effect, 1 to 25 flashes per second
Hardware Features
  • 6 menu buttons to set the functions
  • Wireless CRMX RDM LumenRadio™
  • XLR 5 pin male and female connectors
  • Graphic LCD display
  • Excess temperature protection
  • powerCON TRUE1 male and female connectors
  • Heatsinks in aluminium
  • Moulded covers in ABS PC (V0 class)
  • Skeleton, Aluminium and steel metal plates
  • Two sides handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)
  • One Omega 1/4 turn brackets
  • Two 1/4 turn locking fittings
  • Safety cable attachment point
Light source
  • 2,000 lumens RGBW High-Power LED source
  • Flicker free sources
  • Luminous intensity: 136,000 cd (narrow beam)
  • Total luminaire output: up to 1,500 lumens
  • Rated life (L70): up to 40,000 hours
  • Either 8- or 16-bit resolution
  • High-resolution stepper motors
  • Moving-head range: infinite pan and tilt rotation
  • Pan and tilt automatic repositioning
  • Extremely accurate positioning
Operating parameters
  • Minimum usage distance: 1.0 m (3.28 ft)
  • Device on floor or fixed to a support
  • Maximum temperature (Ta max): 45 °C (113 °F)
  • Minimum temperature (Ta min): -10 °C (14 °F)
  • 2-elements 8:1 zoom high-resolution optic system
  • 75% optic efficiency
  • 94mm PMMA collimator optic
  • Beam aperture: 5° to 40°
  • Fast motorised linear zoom
Power Supply
  • Power 130 W maximum
  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60 Hz
  • Flight-case foam: 251 x 330 x 251 mm (l x h x d)
  • Product: 210 x 318 x 210 mm (l x h x d)
Software Features
  • Local DMX addressing
  • Remote DMX addressing, RDM DMX controller
  • Information menu
Weight Product: 5.7 kg
