Continuous double rotation

Varenr: 015150
19 250,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
ikke på lager (35 dager)
BeskrivelseTeknisk infoDokumenter

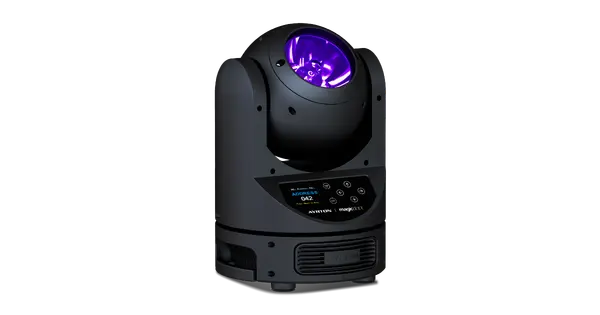

A new member of the RADICAL product line, MAGICDOT R is the first professional moving head LED luminaire with a single optical collimator.

The new high-efficiency optical system measuring 94 mm in diameter and weighing over 200 grammes required more than two years of development and perfection. The result is an intense beam of less than 5° using a multi-chip RGBW LED with a light-emitting surface of 8 mm2. With its minimalist cylindrical design, the innovative MAGICDOT R (patent pending), capable of continuous double rotation on the pan & tilt axes, allows the user to create groups of luminaires and control each light emitter individually in all directions. Leaving a minimum amount of space between multiple luminaires will make it possible to create configurations never before dreamt of.

Highly compact, light, ultra-fast and powerful, the MAGICDOT R is equipped with a new 60 W RGBW multi-chip LED emitter paired with a 94 mm high-efficiency collimator.

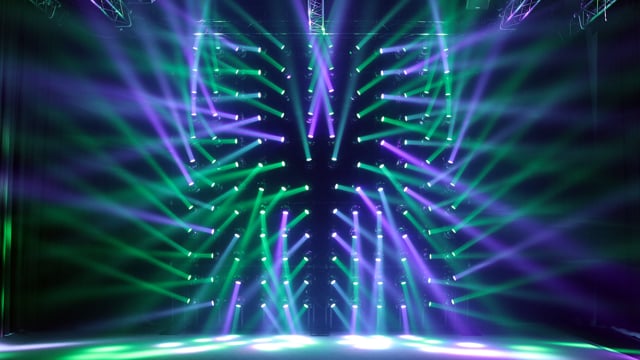

The fixture offers an overall luminous flux of 1,600 lumens and a luminous intensity of 180,000 candela for an overall consumption of only 130 W. This new high-power LED source has required implementing a special phase-change liquid cooling system using a heat pipe. The MAGICDOT R is the ideal tool for creating moveable virtual sets and complex light compositions with multiple beams.

Teknisk info


  • 4.29 billion colours (8 bit resolution)
  • Dynamic colour macro effect with variable speed
  • Light beam, no colour shadows, and pastel colours
  • Virtual colour wheel
  • Sophisticated 4 colours RGBW mixed
  • EU (EMC):
  • US Safety:
  • EU (LVD):
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • UL 1573
  • Choice of 2 DMX modes (from 15 to 17 DMX channels)
  • DMX 512 protocol, through DMX cable
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • Local control panel, with LCD display
Cooling System
  • Advanced cooling system based on heatpipe tech.
  • Selectable auto, stage & studio ventilation modes
  • Variable speed fans for quiet operation
  • Safety protection against temperatures excesses
Dimmer / Strobe
  • Electronic dimmer, 0 to 100%
  • Strobe effect, 1 to 25 flashes per second
Hardware Features
  • 6 menu buttons to set the functions
  • XLR 5 pin male and female connectors
  • Graphic LCD display
  • Excess temperature protection
  • powerCON TRUE1 male and female connectors
  • Moulded covers in ABS PC (V0 class)
  • Skeleton, Aluminium and steel metal plates
  • Two sides handles for transportation
  • Heatsinks in aluminium and copper, satin finish
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)
  • One Omega 1/4 turn brackets
  • Two 1/4 turn locking fittings
  • Safety cable attachment point
Light source
  • 2,000 lumens RGBW High-Power LED source
  • Luminous intensity: 180,000 cd (narrow beam)
  • Flicker free sources
  • Total luminaire output: up to 1,600 lumens
  • Rated life (L70): up to 40,000 hours
  • High-resolution stepper motors
  • Pan and tilt automatic repositioning
  • Either 8- or 16-bit resolution
  • Moving-head range: infinite pan and tilt rotation
  • Extremely accurate positioning
Operating parameters
  • Minimum usage distance: 1.0 m (3.28 ft)
  • Device on floor or fixed to a support
  • Maximum temperature (Ta max): 45 °C (113 °F)
  • Minimum temperature (Ta min): -10 °C (14 °F)
  • Beam aperture: 4.5°
  • 85% optic efficiency
  • 94mm PMMA collimator optic
Power Supply
  • Power 130 W maximum
  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60 Hz
  • Product: 210 x 318 x 210 mm (l x h x d)
  • Flight-case foam: 251 x 330 x 251 mm (l x h x d)
Software Features
  • Local DMX addressing
  • Remote DMX addressing, RDM DMX controller
  • Information menu
Weight Product: 5.3 kg
