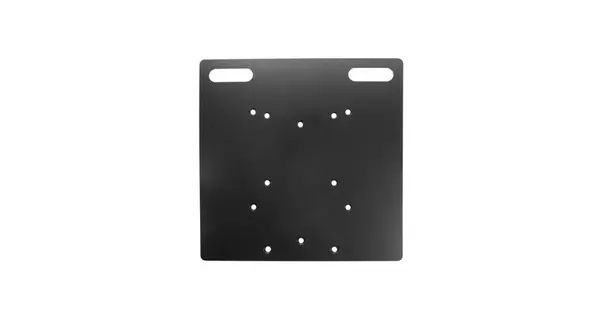

Baseplate 73cm COMBI 30/40 truss black

Our robust steel baseplates give you more flexibility when rigging a truss by creating a stable and flat surface. The Admiral baseplates add 25 kg of weight to the base of your truss construction, making them an excellent base for free-standing objects.
Pre-drilled symmetrical and asymmetrical holes, suitable for the attachment of M12 conical couplers, make assembly and mounting quick and easy. Attaching your truss with M10 couplers can also be easily done by using our reduction ring. The asymmetrical pattern, suitable for 30 truss, can be ideal for setting up displays such as TV-screens along a wall. The symmetrical pattern, suitable for both 30 and 40 truss, can be used for tables, truss bridges or moving head bases.
The Admiral Combi baseplates are available in two colours, zinc plated and black powder coated.

Note: This baseplate is compatible with trusses that have a center-to-center distance of distance of 239 mm (30 truss) and 339 mm (40 truss), including Prolyte, Eurotruss, Global Truss, NEXT Truss and LITEC.
If you want to add an adhesive floor protector to your 6 mm baseplate, the total thickness of it becomes 7 mm. This makes the 6 mm baseplate holder on our Baseplate dolly too narrow for these baseplates, and the rubber protector can end up being damaged. We recommend using one of the larger holders to prevent this.
