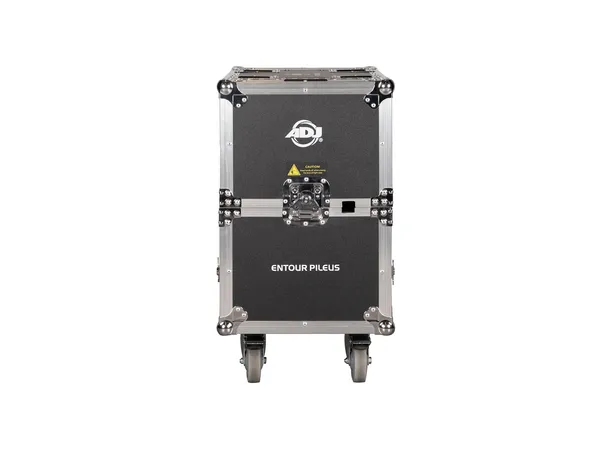

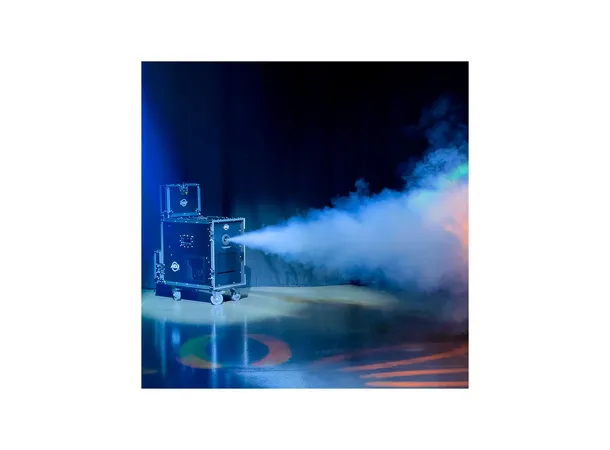

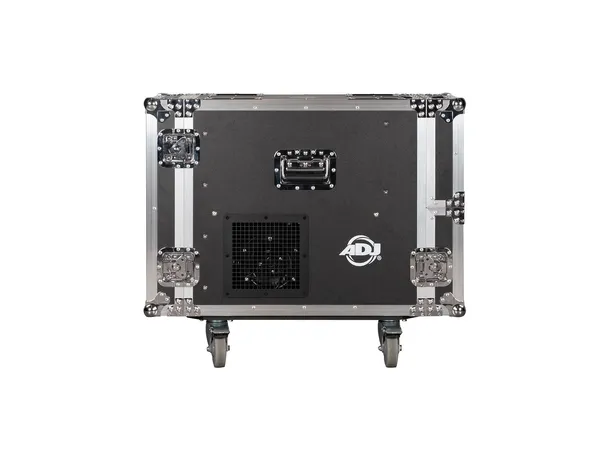

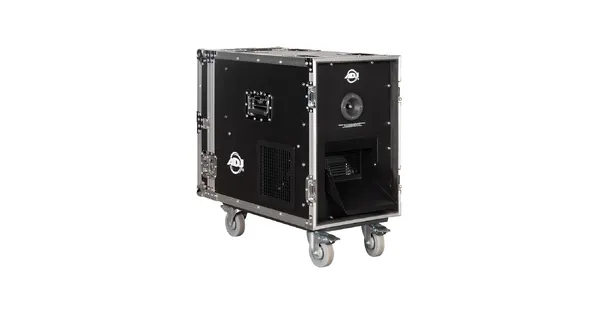

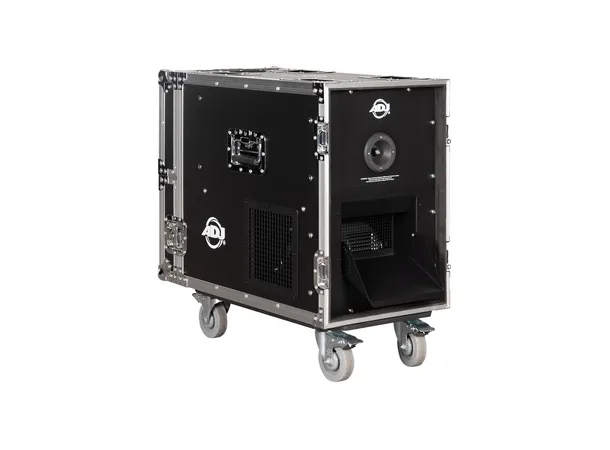

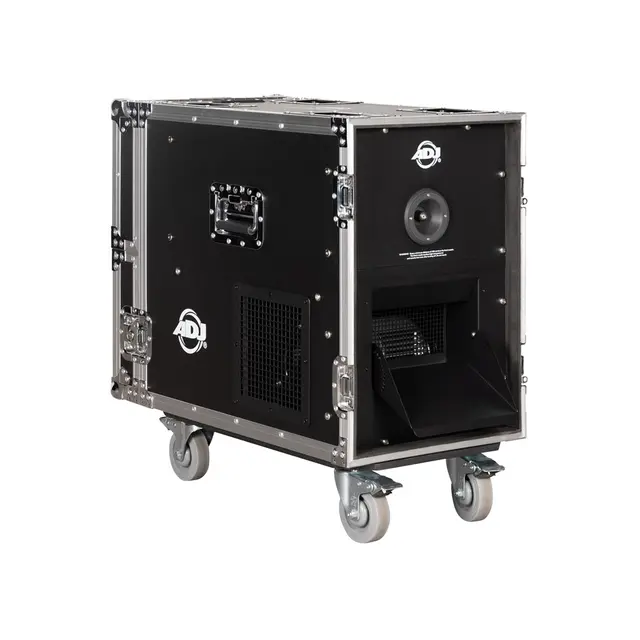

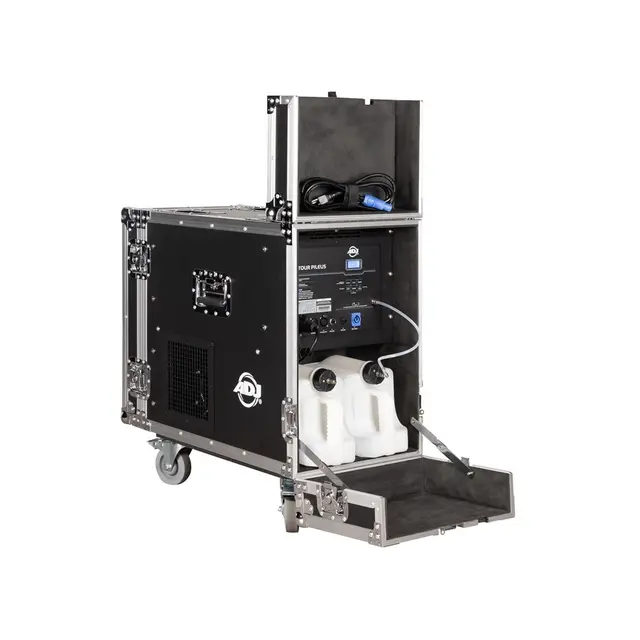

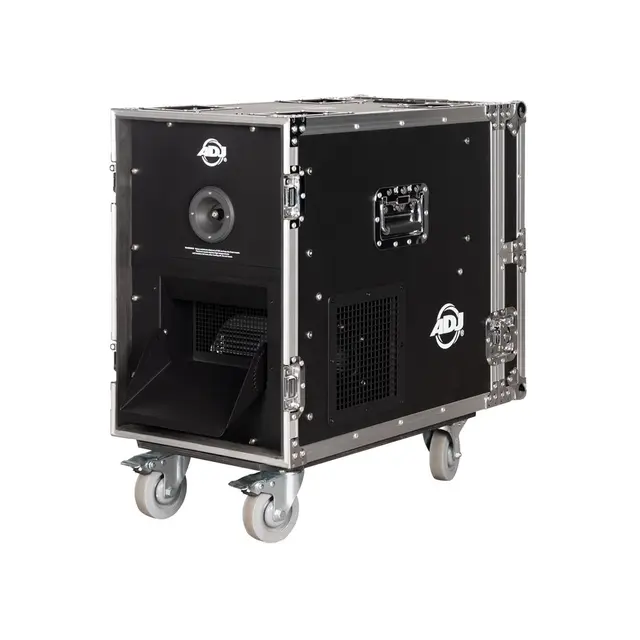

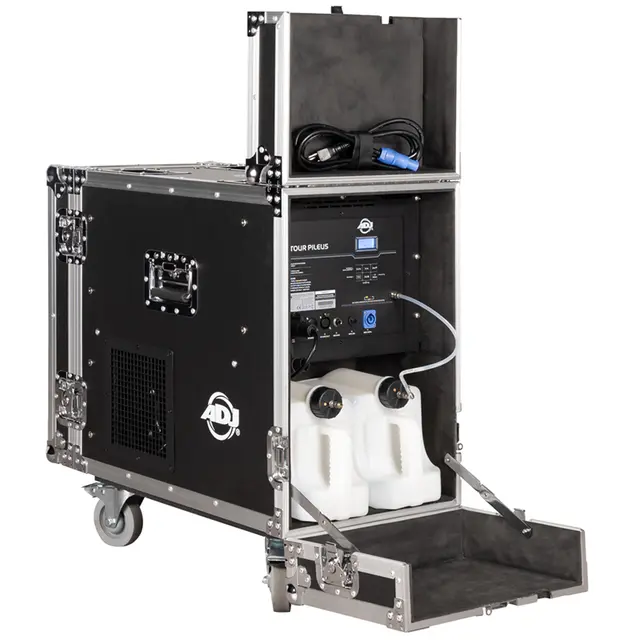

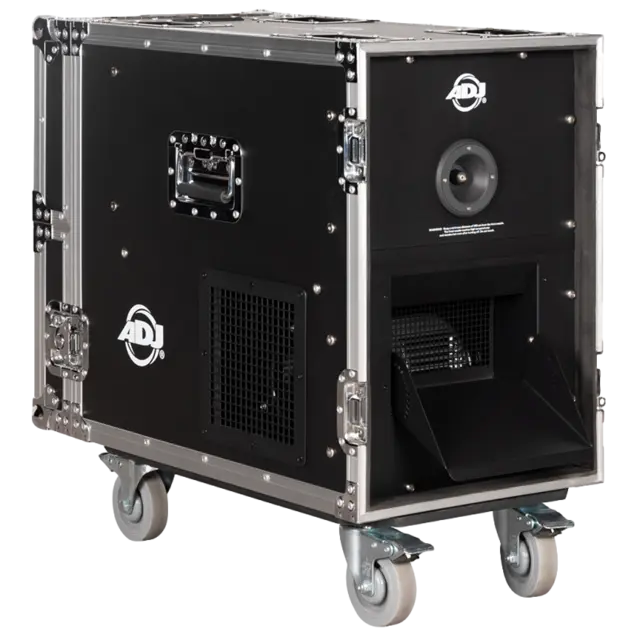

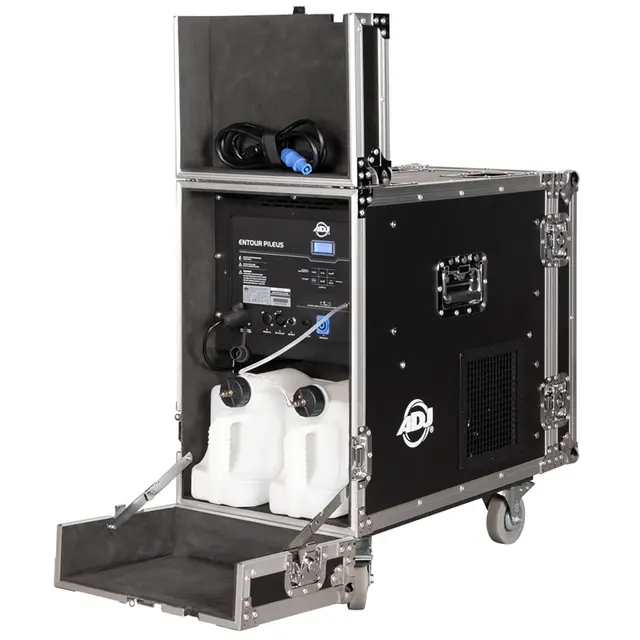

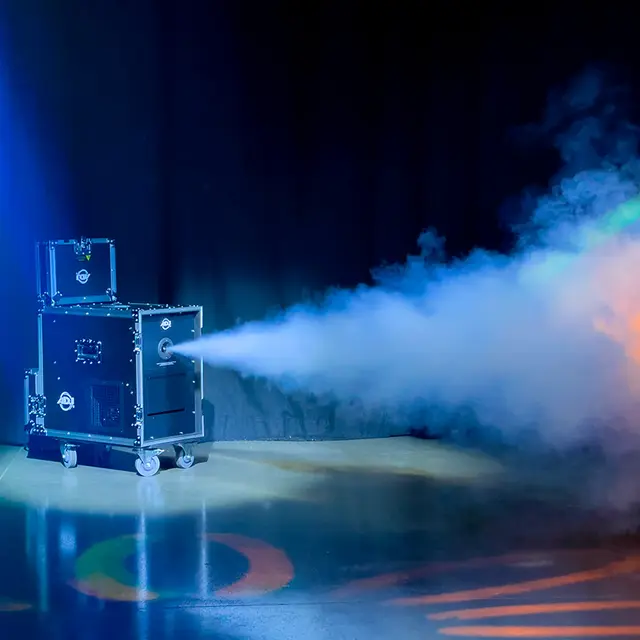

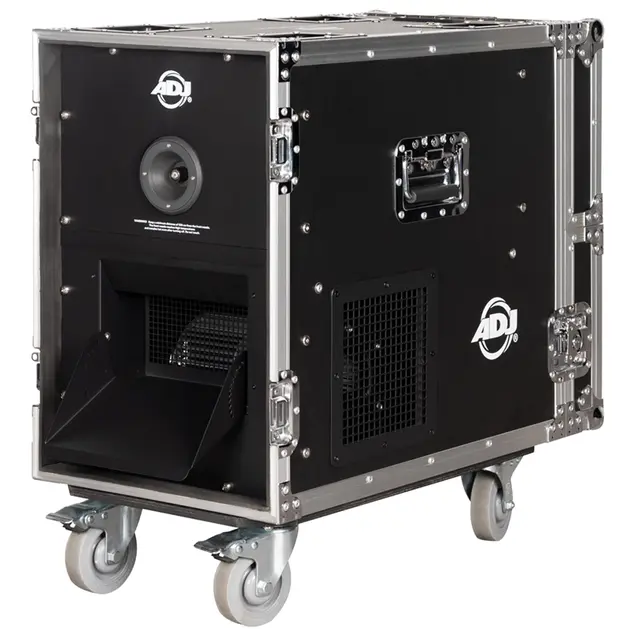

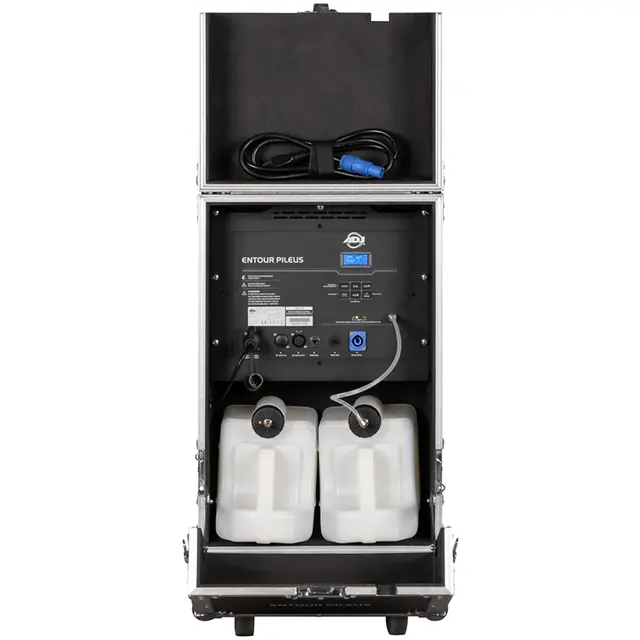

The Entour Pileus, the latest addition to ADJ’s renowned Entour Series, is a versatile, professional-grade multifunctional fog and faze machine tailored for large-scale productions. Encased in a durable flight case with locking castors, this robust machine offers the flexibility to produce either powerful fog bursts or a fine, faze-like mist using standard water-based fog fluid. Equipped with a high-performance 1650W heater, a variable-speed dispersion fan, and advanced fluid consumption management, it ensures precise output control and continuous operation for up to 35 seconds. Capable of delivering a remarkable 60,000 cubic feet of output per minute, the Entour Pileus can easily fill even the largest venues. With dual 5.6L fluid tanks, an ultra-fast 16.5-second warmup time, multiple control options, 5-pin DMX In/Out, and a cutting-edge self-cleaning system, it’s the perfect atmospheric generator for tours and large-scale events.

Specifications

Features:

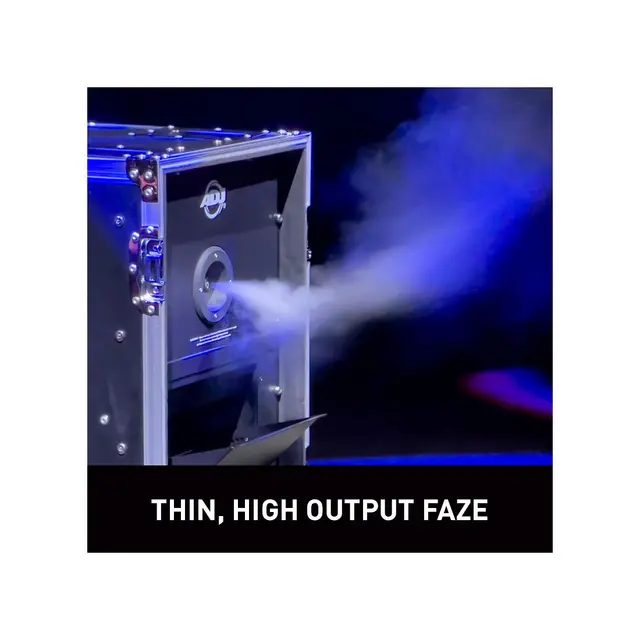

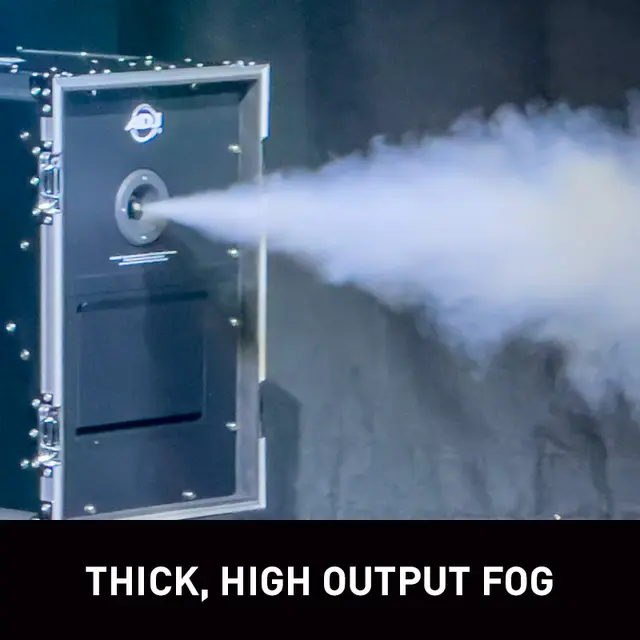

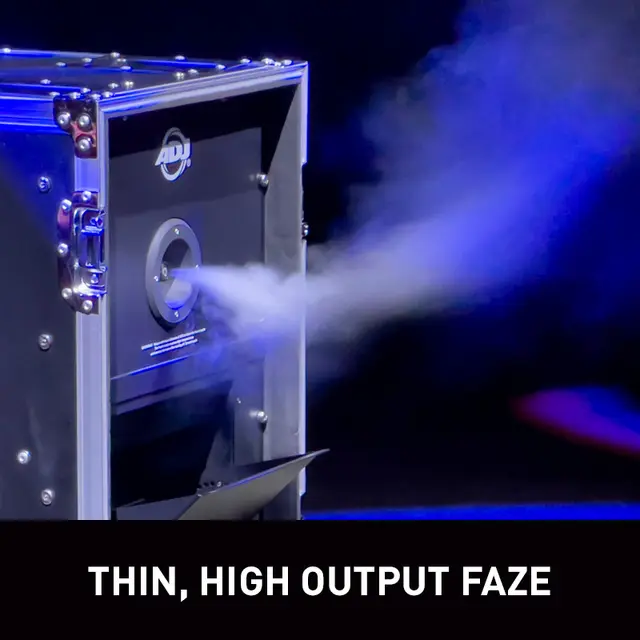

• Creates Thick Fog or Thin Faze Output
• On Board Timing Control
• Remote Controller Connectors 1/4" Jack

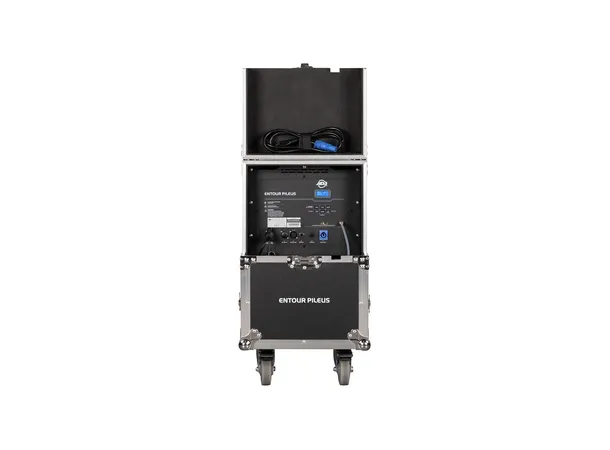

• LCD Display with 6-button Control
• OVP - Over Voltage Protection
• 3 DMX Channel Modes: 1CH, 2CH, 4CH

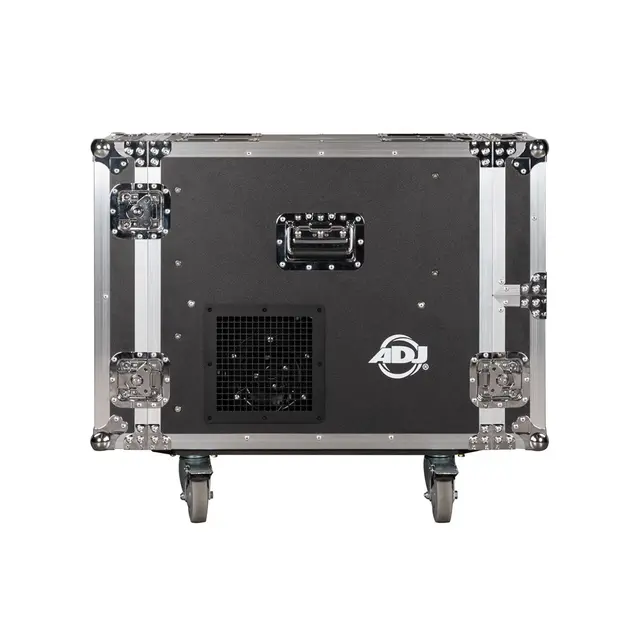

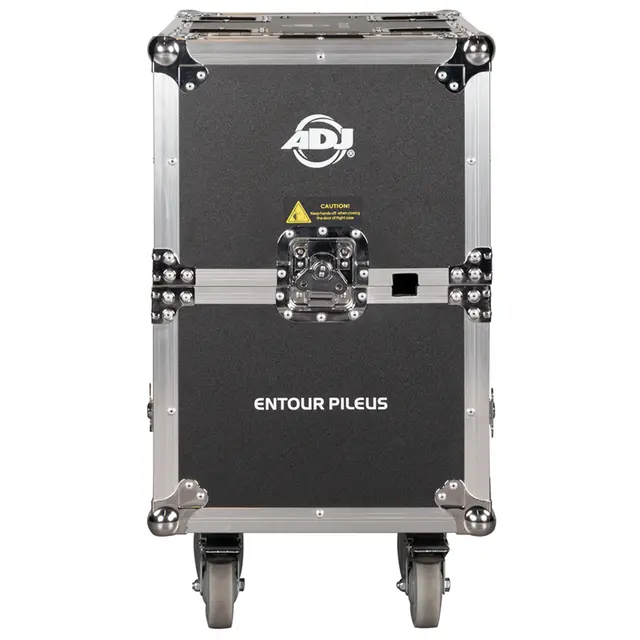

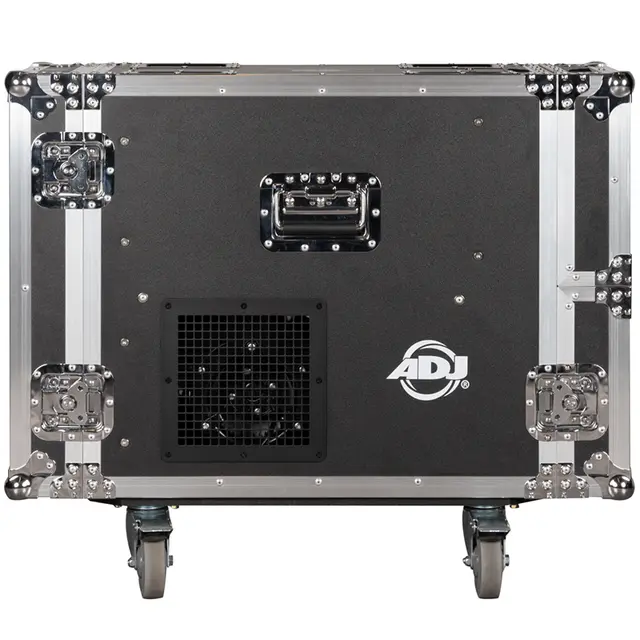

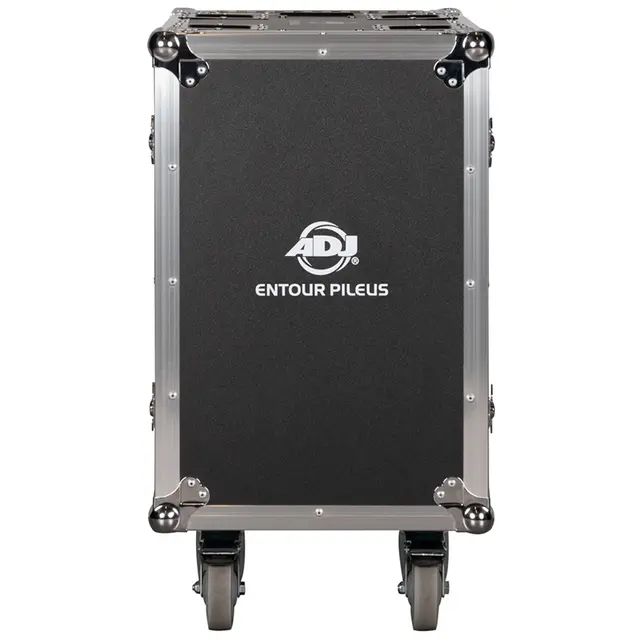

• Rugged Road Case Housing
• Heavy Duty Locking Casters

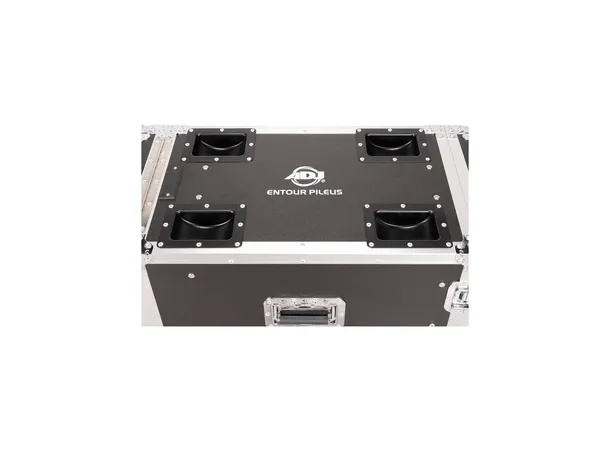

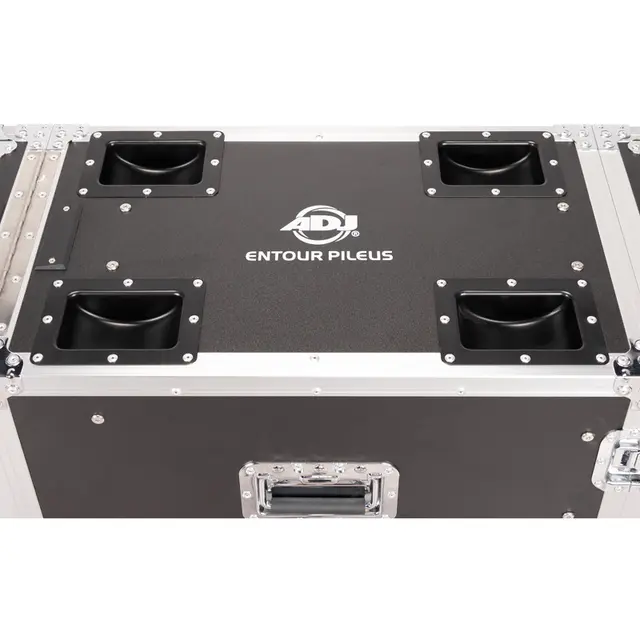

• Stacking Cups on Top of Case

Performance:

• Fog Output: 60,000 cu.ft/min
• Fluid Consumption Rate: Max. 180ml/min, Min. 38ml/min
• Fog Output Adjustment: 5-100%
• Fan Speed Adjustment: 5-100%
• Max Continuous Output Duration: 35 seconds
• Self-cleaning Duration: 30 seconds
• Warm-up Time: 16.5 minutes

Physical:

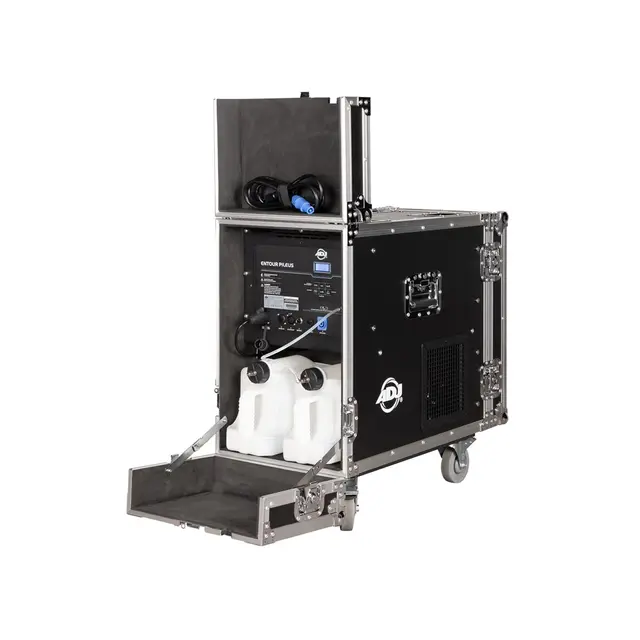

• Tank Capacity: Dual 5.6L tanks
• 5-Pin DMX IN/Out Data Connections
• Locking Power Input Connection
• Input/Variable/Switchable: 120V / 230V / 240V; 50/60Hz
• Heater Power: 1650W
• Max Consumption: 1890W
• Fan Cooled
• Max Ambient Temperature (Ta): 40°C
• Dimensions (L x W x H): 841 x 679 x 408mm
• Weight: 55 kg
