Key Features

Connections
• 1x indoor 5-pin XLR input
• 1x indoor 5-pin XLR thru

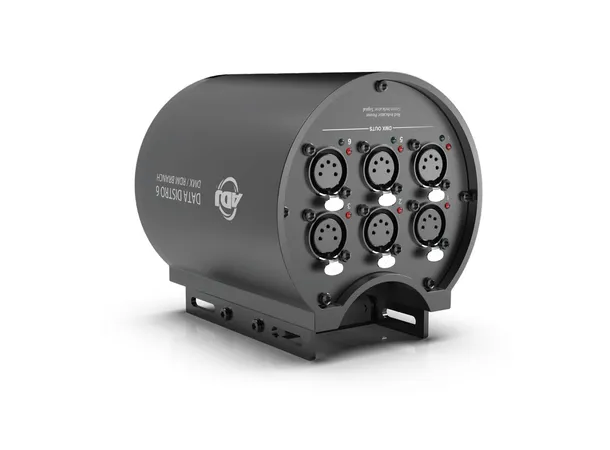

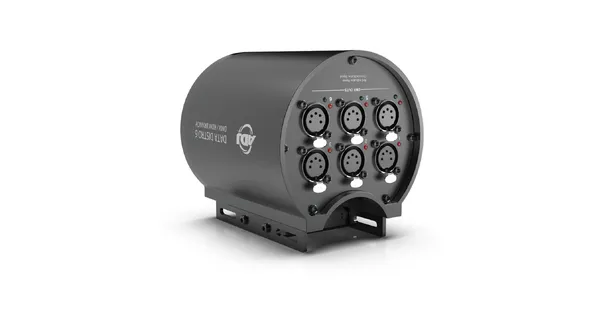

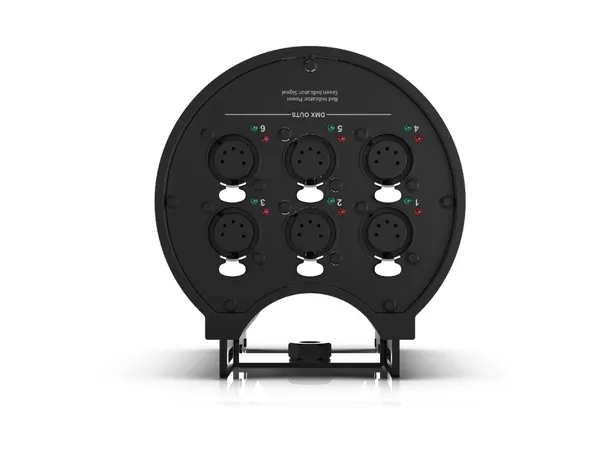

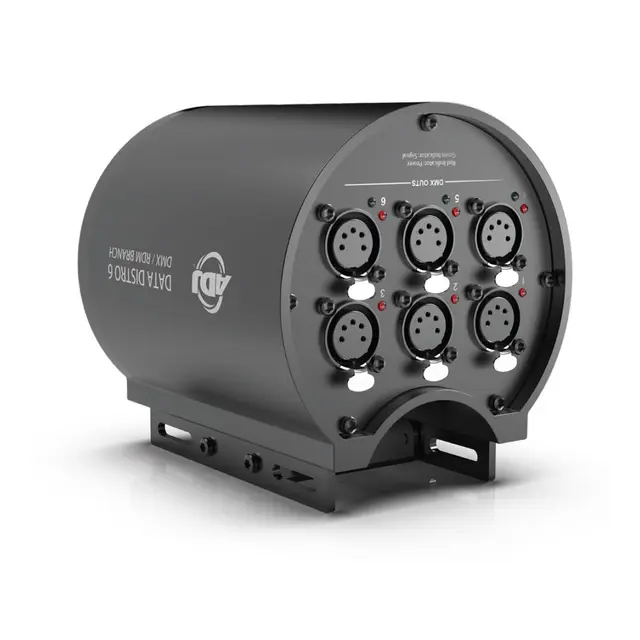

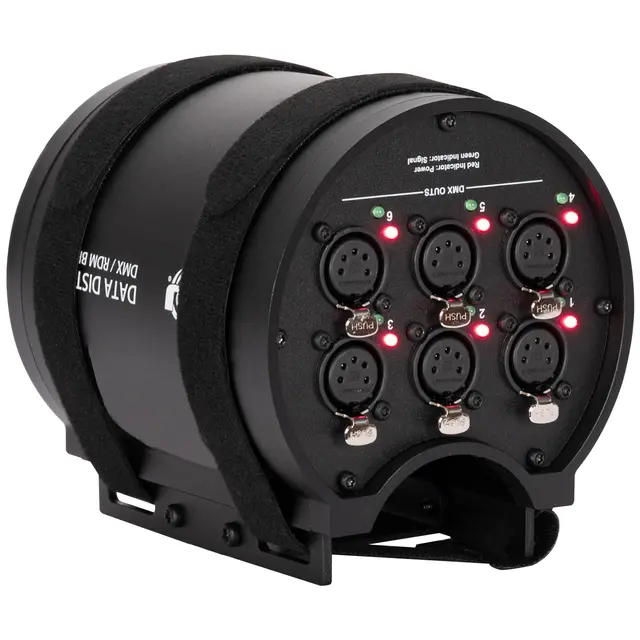

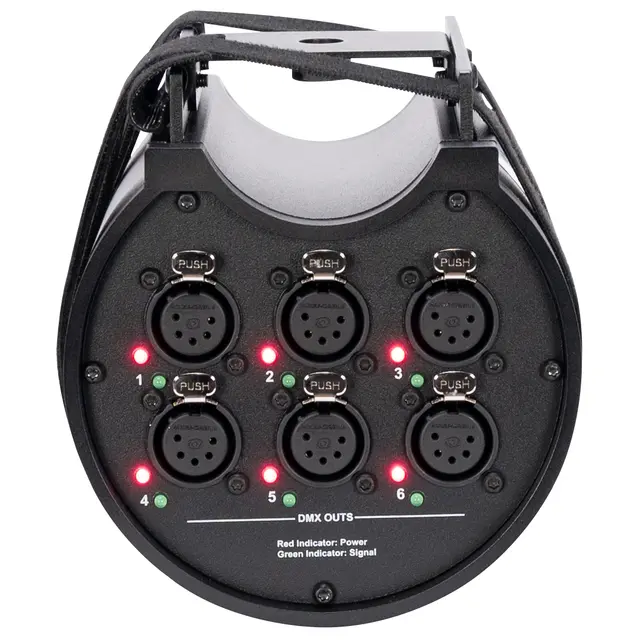

• 6x indoor 5-pin XLR outputs

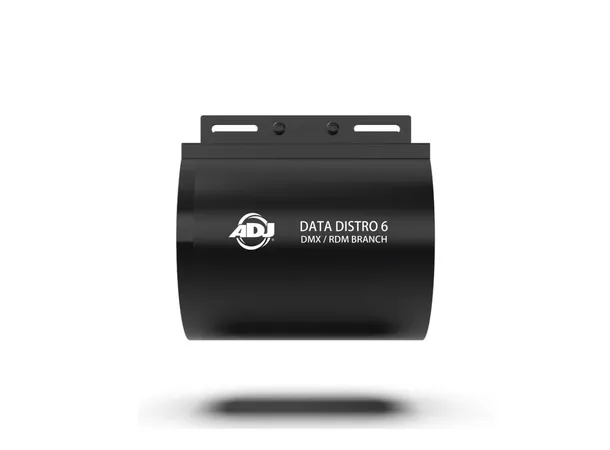

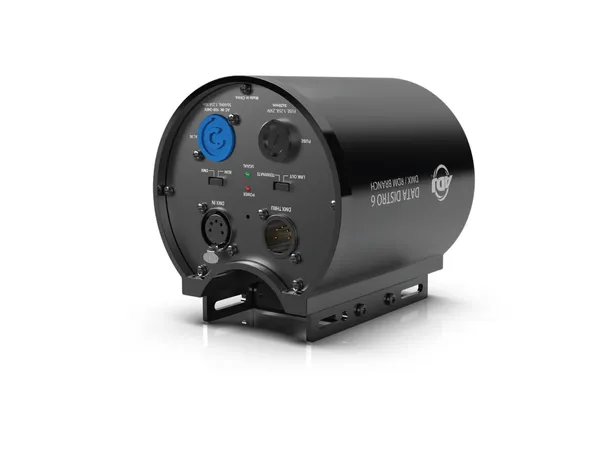

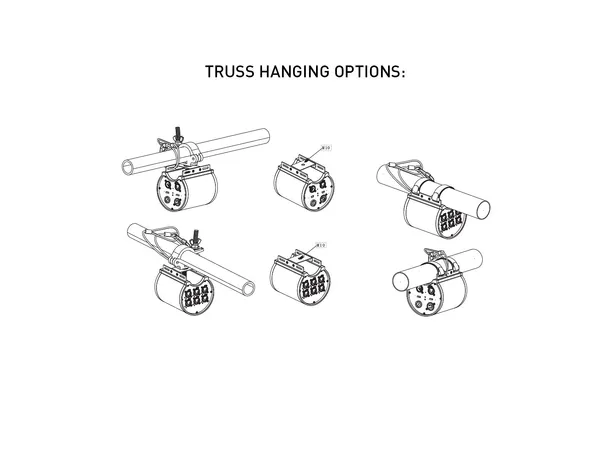

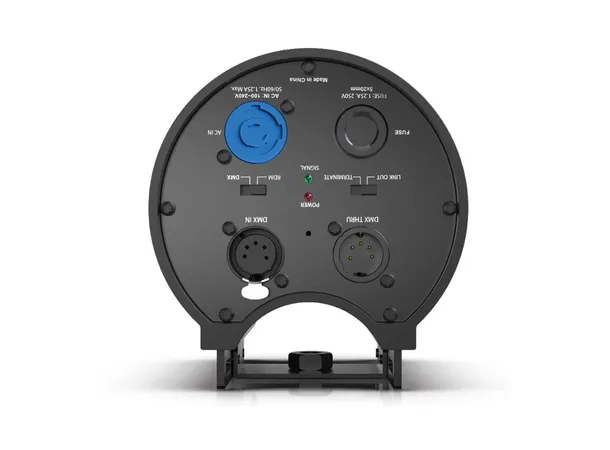

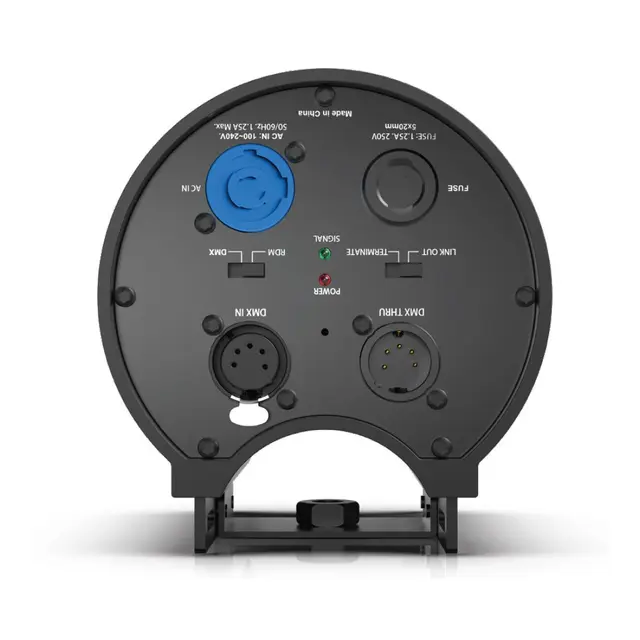

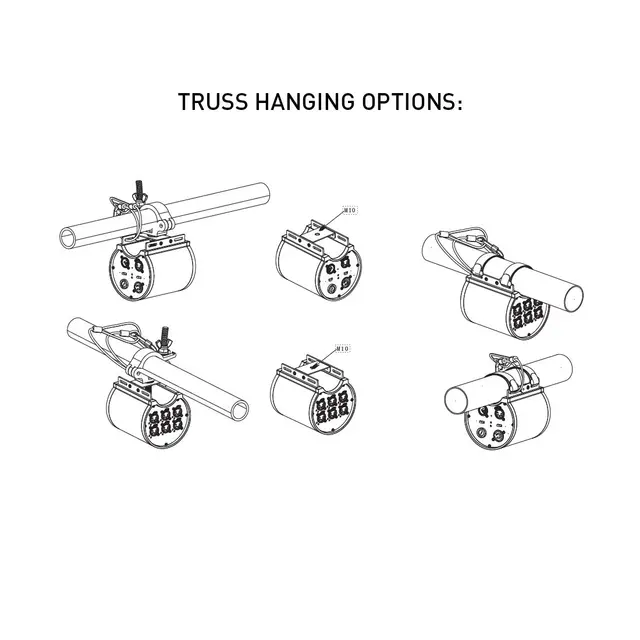

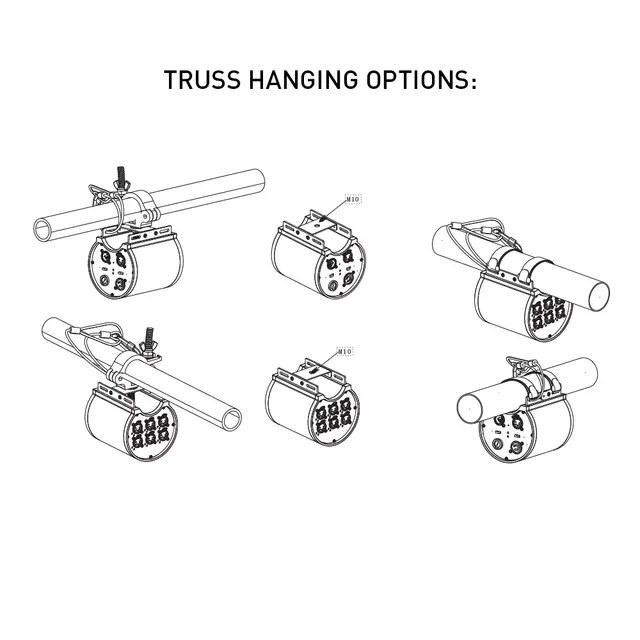

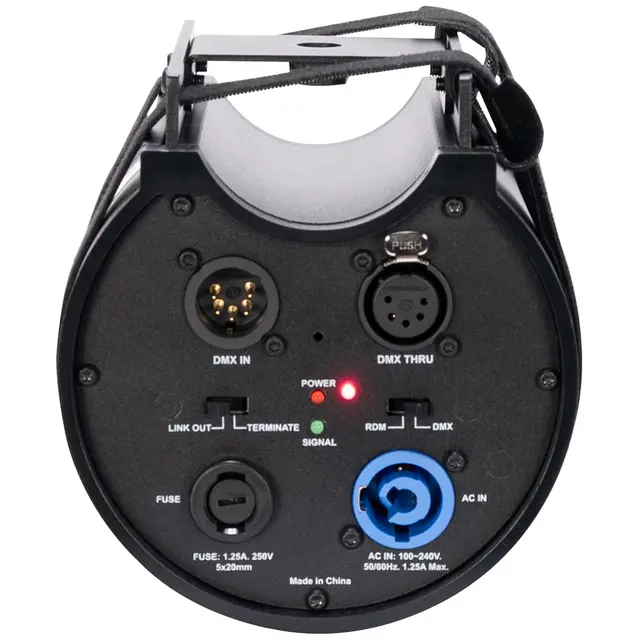

ADJ Lighting Data Distro 6 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient hanging with 1 Truss Mount featuring two Velcro Straps or M10 Screw Clamp (clamp not included). Its robust physical configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, and 6x indoor 5-pin XLR outputs. Equipped with a Link Out Termination Switch and a DMX/RDM Protocol Switch, it also features an indoor locking power socket for added security.

Protocols

• • DMX512
• • RDM

Physical

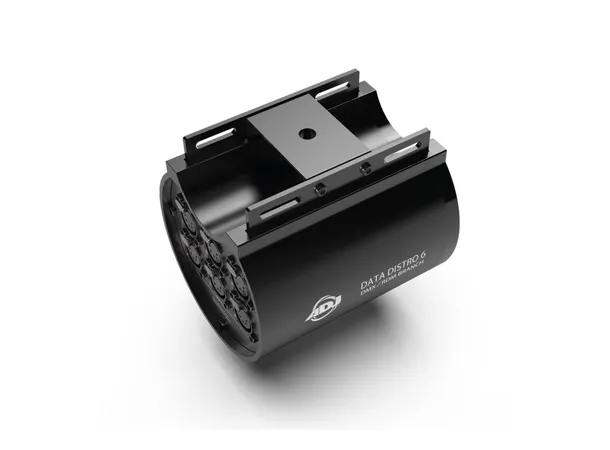

• • 180 degree mounting bracket system

Dimensions / Weight

• • Length: 120mm
• • Width: 137.75mm
• • Height: 129.55mm
• • Weight: 0.83kg

Electrical

• • AC Input: 100-230V 50/60Hz
• • Power Consumption: 2.9W @ 230V
• • Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)

Thermal

• • Ambient Operational Temperature: -20°C to 45°C
• • Humidity: <75%
• • Storage Temperature: 25°C

What's Included

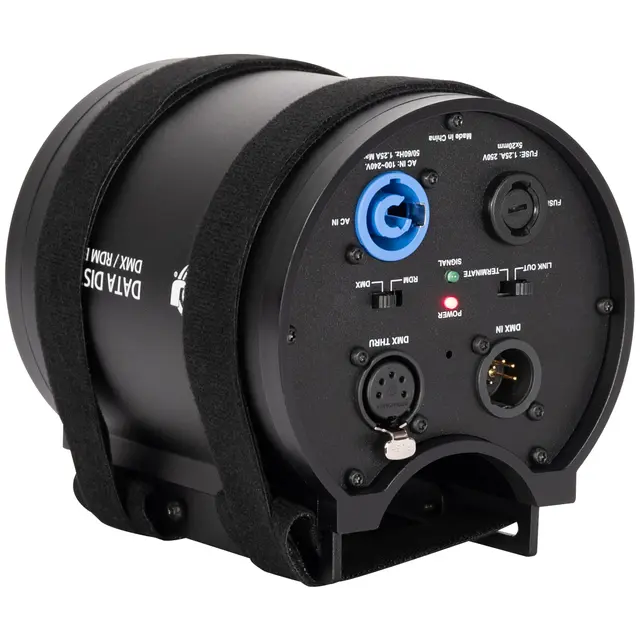

• • 2x Straps (used to attach unit to truss)
• • 1x Clamp Mounting Bracket
• • 1x Power Cord

Approvals / Ratings

• • IP20
