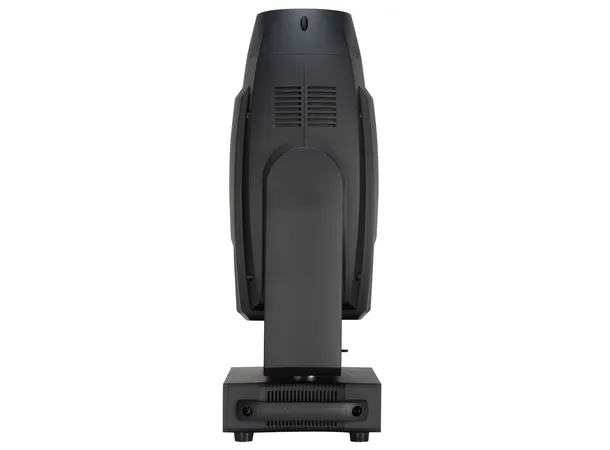

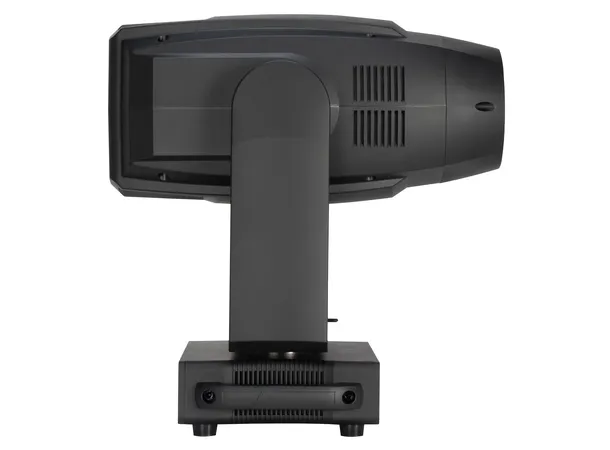

Focus Spot 7Z

Key Features

Gobo
• Gobo wheel 1 with 7 Interchangeable Rotating-Indexing GOBOs
• Gobo wheel 2 with 7Interchangeable Rotating-Indexing GOBOs

Optics
• Motorized Zoom: 6 ~ 48°
• Motorized Focus
• 4-Facet Circular & 6-Facet Linear Rotating Prisms

Source
• 420W White LED Engine
• 20,000 Hour Average LED Life
• Lumens: 20,000

Product Information

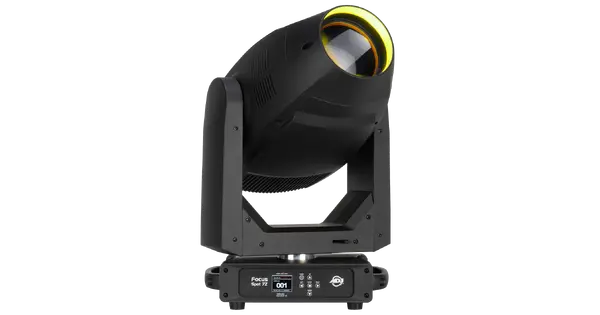

Part of ADJ’s popular Focus Series of LED-powered moving head luminaires, the Focus Spot 7Z is a potent and feature-rich spot fixture. Its light source is an efficient 420W white (7.000K) LED engine, which has an average operational life of 20.000 hours. Focused through precision-engineered optics, it allows the fixture to generate a bright, punchy and even output of 19.000 Lumens.

An exhaustive collection of beam-shaping tools is packed into the Focus Spot 7Z, equipping lighting designers to fully unleash their creative potential. This begins with an advanced color selection system which combines a variable CMY and CTO (2.700K to 7.200K) color mixing system with a color wheel that features seven dichroic slots (including High CRI and CRB filters).

The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output).

Weighting in at only 23.45kg, the Focus Spot 7Z is lighter and has a smaller footprint than other leading hybrid fixtures in its class.

Source

• • 420W White LED Engine
• • 20,000 Hour Average LED Life

Photometric Data

• • 19.000 Total Lumens
• • 7.0000K, >73CRI (without CRI Filter)
• • 6.700K >85CRI (with CRI Filter)
• • 50.528 LUX @5m (6° Beam)
• • 1.799 LUX @5m (48° Beam)

Effects

• • 4-Facet Circular & 6-Facet Linear Rotating Prisms
• • 2 Frost Filters (Light & Heavy)
• • Animation Wheel (Rotatable and Indexable)
• • Motorized Zoom (6° ~ 48°)
• • Motorized Focus
• • Motorized Iris
• • Electronic Dimming & Strobe (1-20Hz)

Color

• • Full CMY color mixing
• • Variable CTO (2.700K to 7.000K)
• • Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
• • CMY and Color Wheel preset macros

Gobos

• • (2) Gobo Wheels

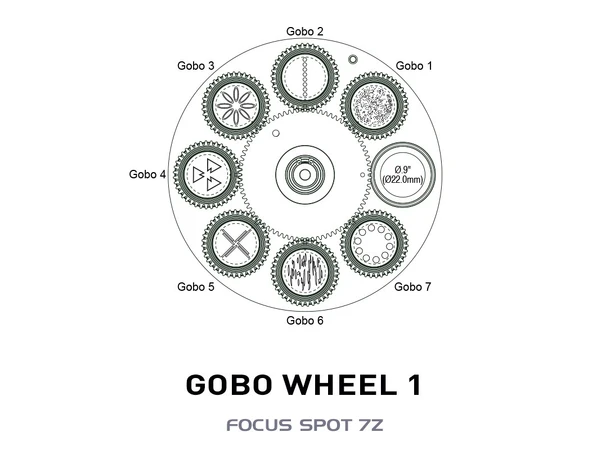

• • #1 - (7) Interchangeable Rotating-Indexing Glass Gobos
• • #2 - (7) Interchangeable Rotating-Indexing Glass Gobos

Control & Connections

• • (3) DMX Channel Modes (30 / 34 / 45)
• • DMX512, ArtNet and sACN protocols
• • WiFLY Wireless DMX Built-in
• • RDM (Remote Device Management) compliant
• • 6 Button Touch Control Panel
• • Full Color 180° Reversible LCD Menu Display
• • 8 / 16 Bit Resolution Adjustable Movement
• • 5-pin XLR DMX In/Out
• • RJ45 connectors In/Out
• • IP65 Locking Power In/Out connections

Pan / Tilt

• • Pan: 540-degrees
• • Tilt: 270-degrees
• • Pan & Tilt Locks

Dimensions & Weight

• • Length: 374mm
• • Width: 234mm
• • Vertical Height: 630mm
• • Weight: 23.45kg

Electrical & Thermal

• • AC 100-240V - 50/60Hz
• • Max Power Consumption: 524W
• • Max ambient temperature: -10°C to 45°C
• • Max housing temperature: 58°C

Technical Data

• • DB Rating @ 1m.: 49dB
• • BTU: 0.53
• • BTU/H: 1,909.60

What's Included

• • Locking Power cable
• • 180mm Omega brackets (x2)
