ADJ Focus Wash 400

Produces an even field light output

Varenr: 1237000240
20 373,-eks mva.
25 467,-Ordinær pris
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Ikke på lager (19 dager)
BeskrivelseDokumenter
Beskrivelse

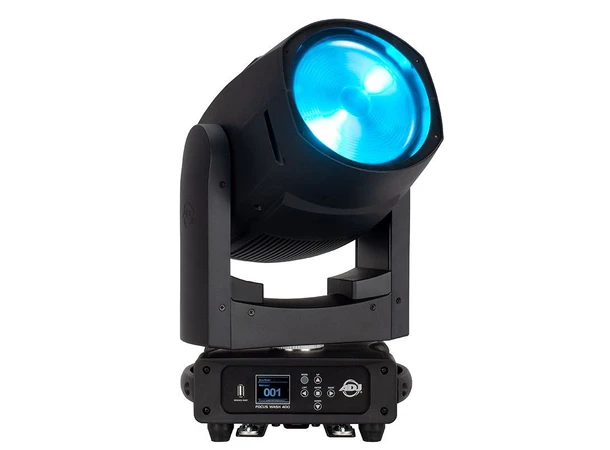

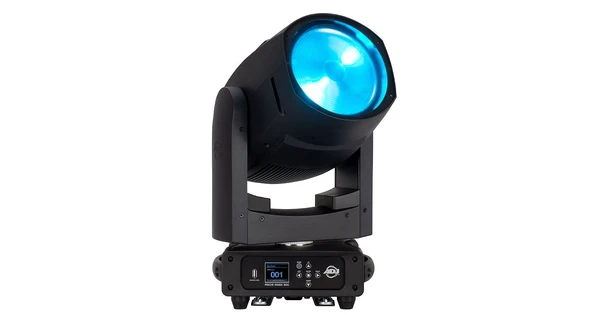

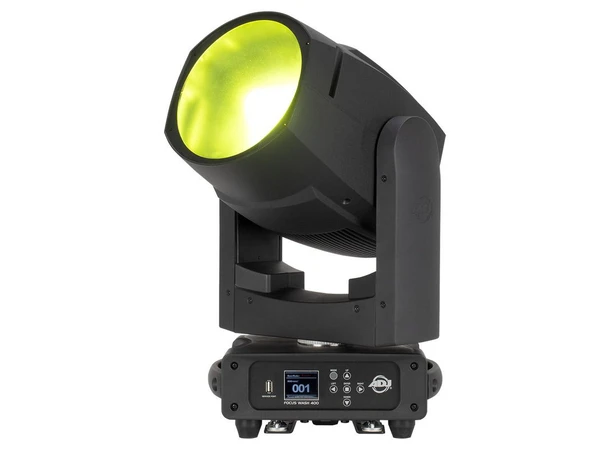

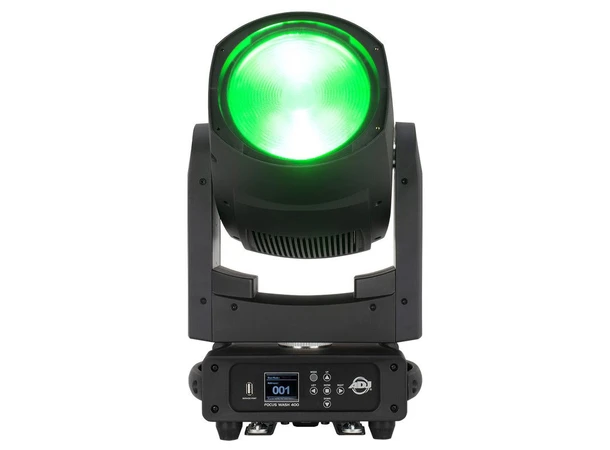

The FOCUS WASH 400 is a 400W moving head wash fixture powered by a 400W RGBACL (Red, Green, Blue, Amber, Cyan and Lime) LED engine. A 6-inch Fresnel lens with 9 to 43° motorized zoom produces an even field light output.

Ideal for live broadcasting and film use, this fixture has flicker free operation, adjustable refresh rates from 900Hz to 25kHz, a quiet fan mode, linear white color temperature control from 2700K - 10000K, as well as, preset white color macros (2700K, 3200K, 4000K, 5600K and 6500K). In addition to it’s tunable white feature, the Focus Wash 400 has a virtual CMY color mixing channel which allows users to choose any hue on a color picker.

The FOCUS WASH 400’s unique color engine produces a high CRI of 92+ for bright whites and a CRI R9 of 87.3 to help make red tones more vibrant. The fixture also includes 16-bit pan / tilt movement, RGBACL color mixing LED engine, variable dimming modes / curves and strobe effects, DMX and RDM (remote device management) protocol support.

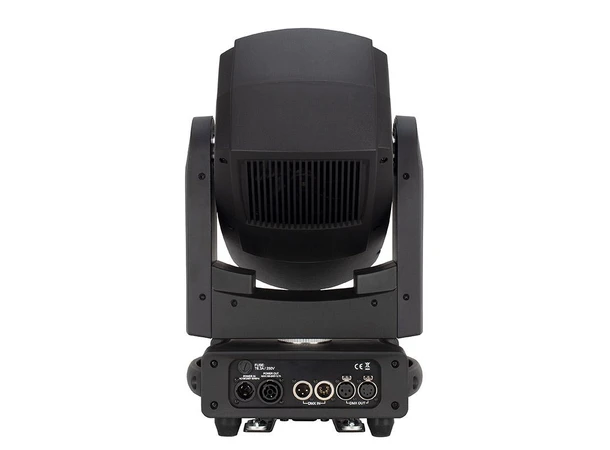

The fixture comes standard with IP65 locking power In/Out connections, locking 3-pin & 5-pin DMX In/Out sockets, color LCD menu display with 6 button control panel, multiple unit power linking, a multi-voltage universal auto switching power supply (AC100-240V), USB port to conveniently update firmware, and omega brackets with two hanging points.


Specifications

Source:

• Source: 400W RGBACL LED Engine

• 7783 Lumen

• 730 Lux@5m/43°

• 4451 Lux@5m/9°

• Average lifetime: approximately 50,000 hrs



Optics:

• Zoom range: 9 - 41°

• Field Angle: 19 - 54°

• Fresnel Lens

• Motorized Zoom



Control:

• DMX-512 Protocol

• 5 DMX Channel Modes (Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24))

• RDM compatible (Remote Device management)

• 16bit dimming 0-100%

• 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 4 Dimming Curves : Linear / Square / Inverse Square / S-Curve

• Various strobe effects

• LCD Menu Display with 6-button Control

• 3 Fan settings : Auto, High and Low Noise



Colors:

• RGBACL Color Mixing (Red, Green, Blue, Amber, Cyan, Lime)

• CRI: 94

• Preset Color Temperatures (2700k, 3200k, 4000k, 5600k and 6500k)



Construction:

• Metal casting with ABS housing

• Omega bracket with quick locks



Electrical:

• Multivoltage : 100-240V 50/60Hz

• Power Draw : 438W



Connections:

• Locking 3- & 5-pin DMX In/Out

• IP65 Locking Power In/Out



Dimensions & Weight:

• Dimensions: 213 x 278 x 568mm

• Weight: 10,7 kg.


Included accessories:

• Snoot

• 1x40° Linear Lens

• 2 Omega Brackets

• Safety Cable



• IP65 Locking Power Cable
