Vintage Bar

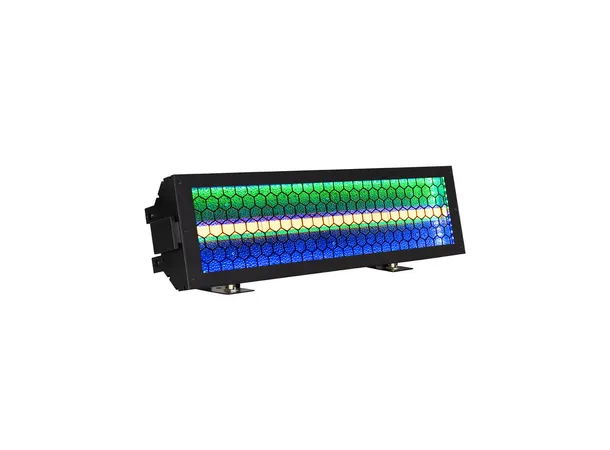

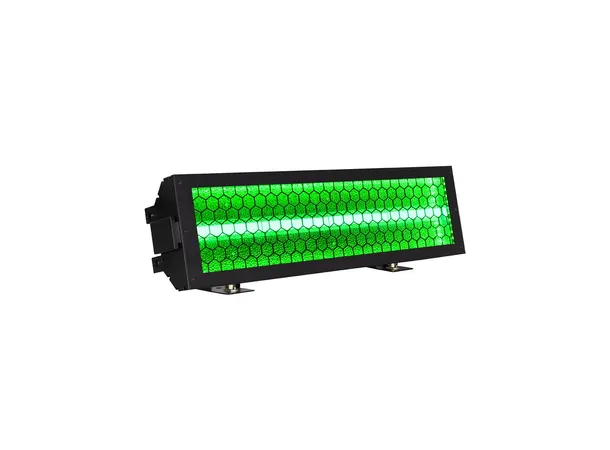

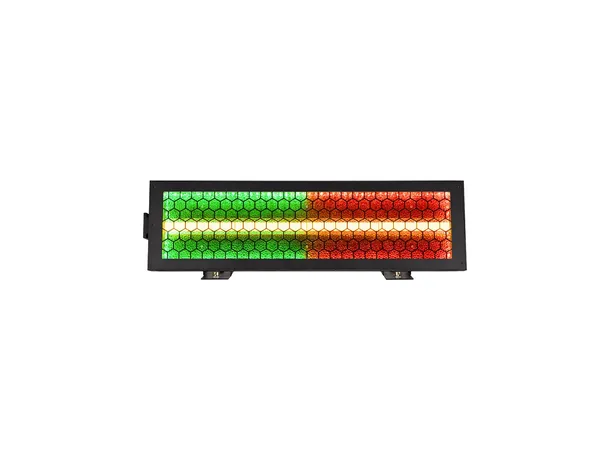

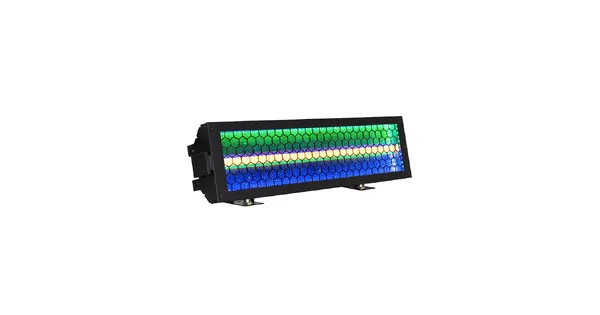

The Vintage Bar is a versatile scenic lighting fixture designed to inspire creativity and captivate audiences with its dual-purpose design. It offers four 150W amber COB LEDs (2600K) for a retro blinder effect, combined with vibrant 120 SMD 5050 RGB background LEDs configured into 20 pixel groups. This combination enables brilliant amber wash lighting, stunning multi-color eye candy effects, and smooth dimming transitions.

Its wide field angle of 160° ensures exceptional light dispersion, making it ideal for stage productions, events, and theatrical applications. The fixture features advanced strobing, retro background effects, and silent operation. Additional highlights include flicker-free performance, a user-friendly OLED display, and support for DMX, RDM, and Art-NET protocols. The Vintage Bar also features the Aria X2 wireless management system for over-the-air firmware/software updates for streamlined control.

Built for flexibility, the Vintage Bar offers multiple control modes, pixel mapping, and interlocking capability, making it perfect for immersive lighting setups. With robust engineering and creative potential, it combines vintage charm with modern functionality for modern lighting designs.

Specifications

Main Technical Parameters:

Primary Light Source:

• 4 pcs high-power 150W COB white LED
• CCT: 2000K
• Lumens: > 27,000
• CRI: 70
• Field Angle: 160°

Secondary Light Source:

• 120 pcs SMD 5050 RGB LEDs (0.8W each)
• Configured into 20 pixel groups (6 LEDs per group)

Special Effects:

• Powerful strobe, 0.5 to 33Hz
• Unique retro RGB background effect
• Silent operation with low noise

Additional Features:

• Aria X2 Management System
• Flicker-free

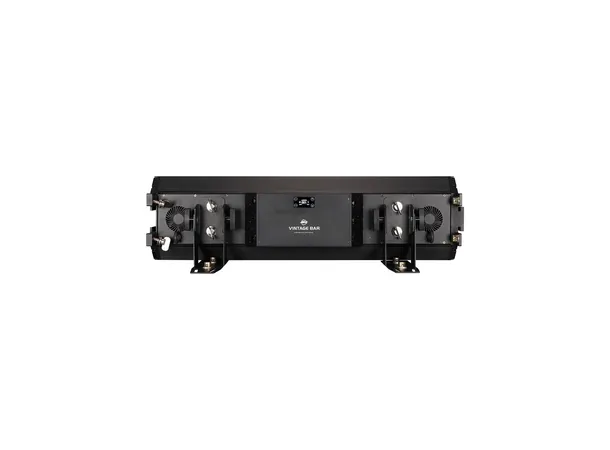

• OLED display with a 4-button touch menu

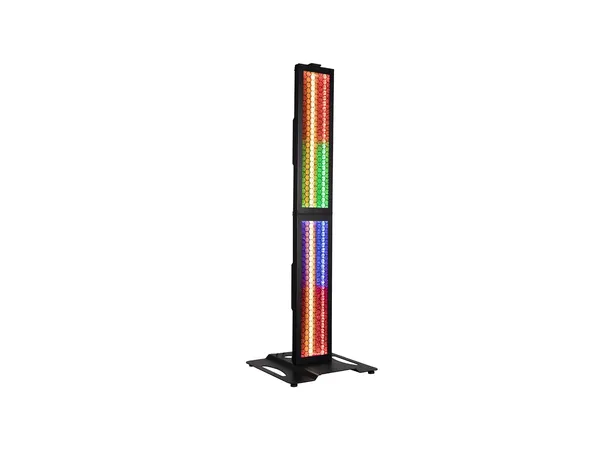

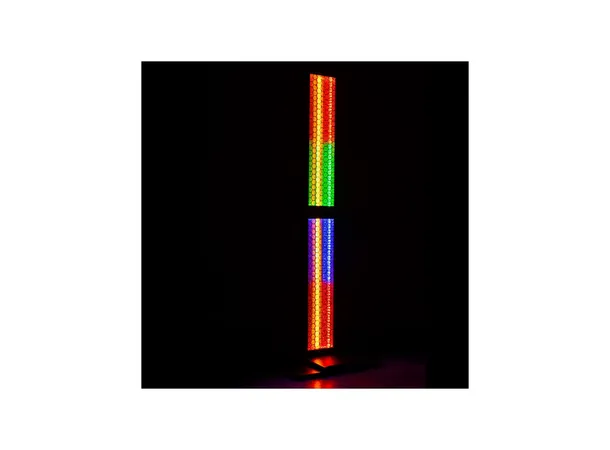

• Capable of interlocking multiple units together
• Dimmer: 0-100% linear dimming system

Control Modes:

• Primary/Secondary synchronization
• Stand-alone mode
• DMX512 control mode
• 10 DMX Channel Modes (5/6/8/14/17/18/88/92/94/101 channels)
• DMX, RDM, and Art-NET protocol support

Connections:

• IP20 indoor 5-pin DMX Input and Thru
• IP20 indoor RJ45 Ethernet
• IP65 outdoor power locking Input and Thru

Dimensions & Weight:

• Dimensions (LxWxH): 908x292x257mm
• Weight: 19 kg

Approvals / Rating:

• Protection Rating: IP20 (for indoor use only)
