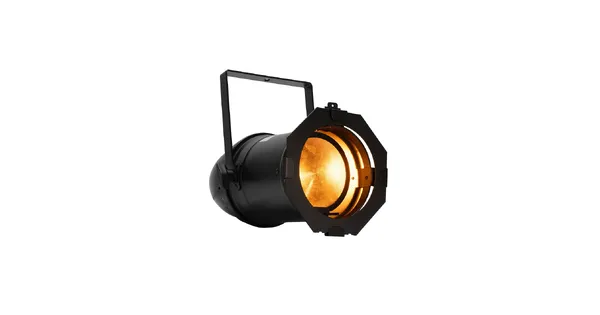

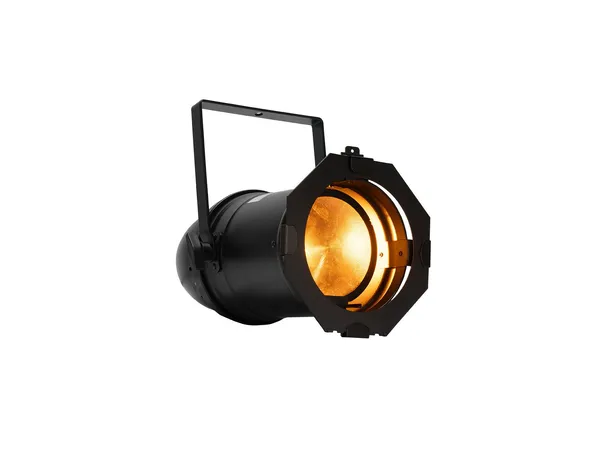

Par Z150 RGBA Plus

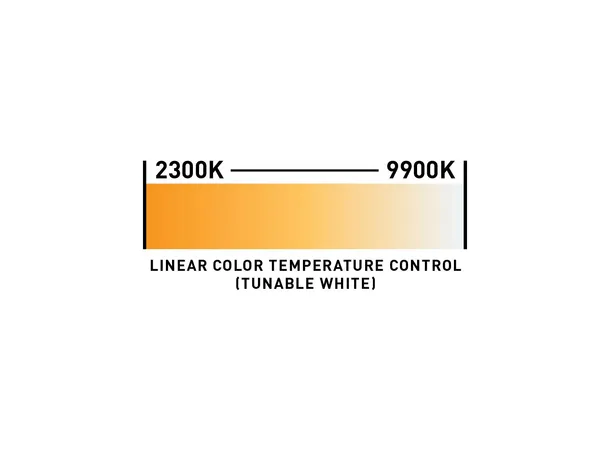

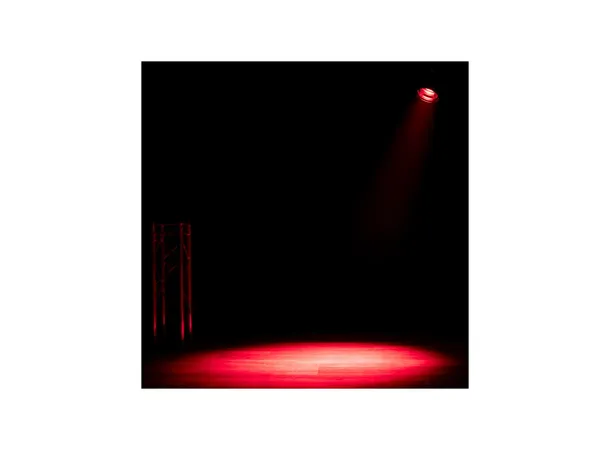

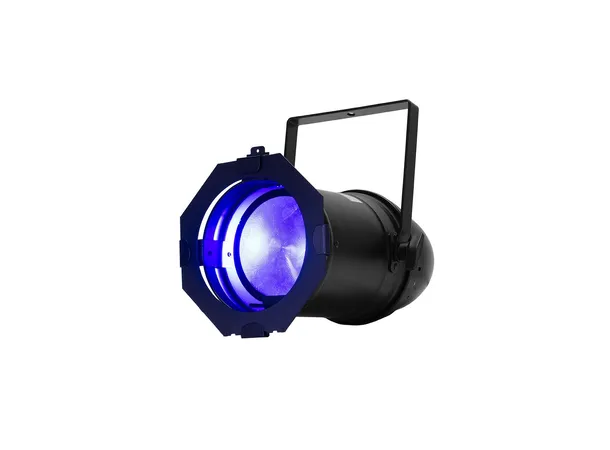

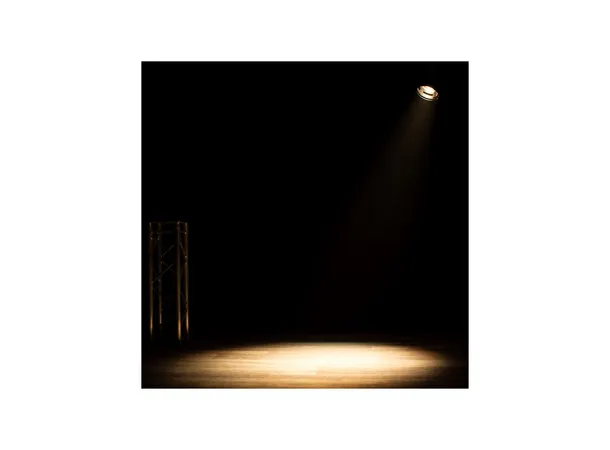

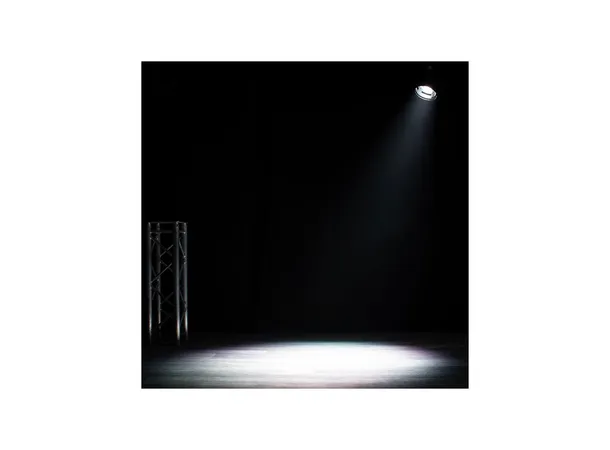

Combining the classic aesthetic of the traditional Par Can with the power-saving and heat-reducing advantages of a modern LED light source, the Par Z150 RGBA Plus provides flexible wash lighting solutions for a wide variety of applications. This battery-powered model harnesses the power and versatility of a 150-Watt quad color (red, green, blue, and amber) C.O.B. LED engine, delivering a huge spectrum of color options, including white light with a color temperature variable between 2300K and 9900K. Equipped with the Aria X2 wireless management system and a rechargeable lithium-ion battery, it offers unmatched portability and convenience.

The luminaire offers uniform output with no color shadows thanks to C.O.B (Chip On Board) technology. A high CRI of >90 ensures accurate color rendering, natural skin tones, and enhanced depth. 64 built-in color macros and additional white light macros allow for efficient programming. The fixture includes six dimming modes, four dimming curves, and an onboard color balance feature for customization.

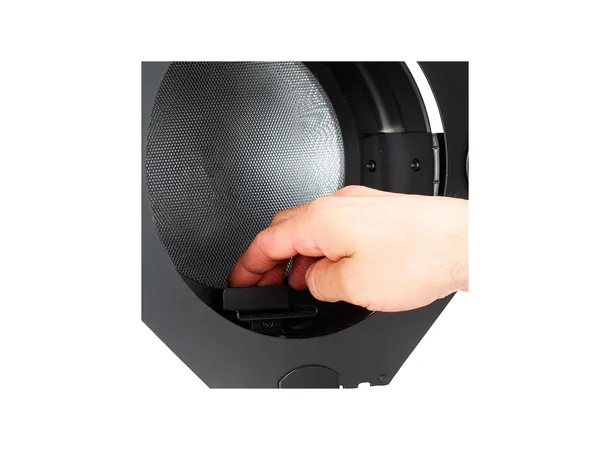

With five beam angle options (7°, 11.5°, 16°, 20.5°, or 25°) and a gel frame for diffusion filters (sold separately), the Z150 RGBA Plus is adaptable for a wide range of applications. Its LED engine also allows for variable-speed strobing effects (0.6Hz to 7.5Hz) and has a long-life expectancy of 50,000 hours, reducing maintenance costs.

Specifications

Optical:

• 150-Watt Quad RGBA C.O.B. LED
• Life expectancy: 50,000 hours
• Manual Zoom: 7°, 11.5°, 16°, 20.5°, 25°
• Zoom Ratio: 3.3:1

Photometrics:

• 1360 Lux (Zoomed In to 7°)
• 487 Lux (Zoomed Out to 25°)
• CRI: >90

Connections:

• DMX: 5-pin In/Out
• Locking power In/Out connections

Control:

• DMX-512 and Aria X2 Wireless DMX
• 9 DMX control modes
• RDM and RDM Net compatible
• Primary/Secondary, stand-alone mode
• On-board manual control mode

Electrical:

• Power Draw: 157W
• Power Consumption: 0.7A @ 220V/50Hz
• Multi-voltage operation: AC 100-240V, 50/60Hz

Battery:

• Rechargeable Lithium-ion (7000mAh, 22.2V)
• Charge Time: 6 Hours (Full)
• Battery life: 5-20 hours based on usage

Dimensions / Weight:

• Dimensions (LxWxH): 489 x 277.7 x 272.1mm
• Weight: 5.8kg

Approvals:

• IP20
• CE, FCC
• ETL (Pending)
