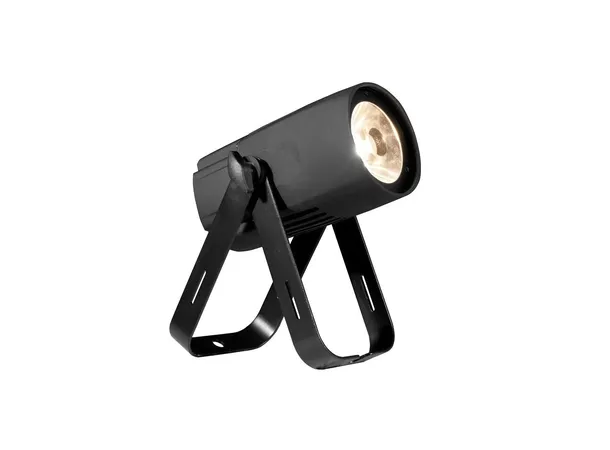

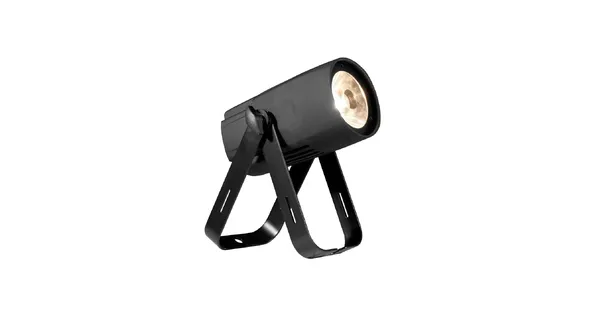

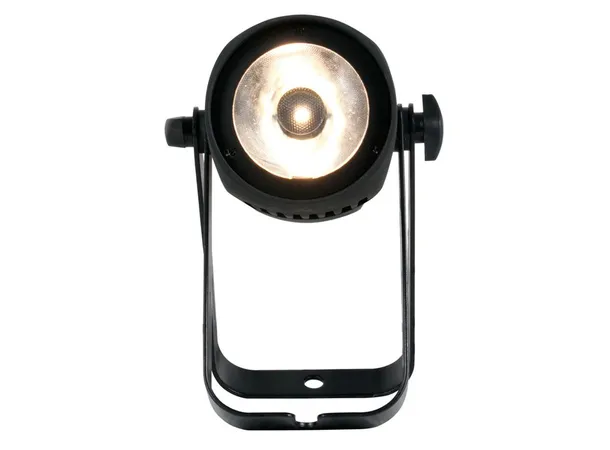

Saber Spot WW

The Saber Spot WW is a compact Pinspot with a 15-Watt warm white LED. Features include DMX-512, flicker-free operation, strobing, electronic dimming, and a 4-button DMX display system on the rear panel. Its built-in ACL lens produces a razor-sharp 4-degree beam angle. Included are 2 additional fresnel lenses of 10° and 45°.

The Saber Spot WW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, and lighting retail stores.

Specification

Source

• Source: 1 WW LED
• Individual LED Wattage: 15W
• Average LED Lifetime: approx. 10,000 hrs
• Color Temperature: 3000K
• LUX: 5897 @ 3M

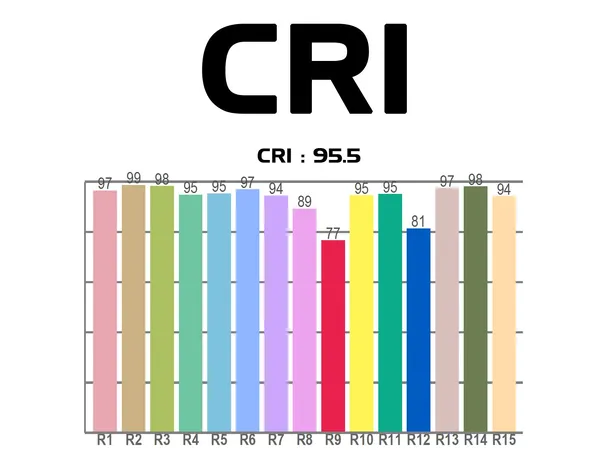

• CRI (Full on): 95.5
• Flicker-free operation for film and television

Optics

• Beam Angle: 4 degrees
• 2 additional fresnel lenses included (10° & 45°)

Control

• 3 Operational Modes: Show Mode, Manual Mode, DMX-512 Mode
• DMX Channel Modes: 1, 2 or 4 channels
• 16-bit Dimming
• 5 Dim Curves: Standard / Stage / TV / Architectural / Theatre
• Strobe & Pulse Effects
• LCD display with 4-button control

Color

• Warm White: 3000K

Construction

• Housing: Metal, Black
• Scissor bracket system allows fixture to be hung or set on the ground

Electrical

• Multi-voltage Operation: 100-240V, 47/63Hz
• Power Draw: 15W max

Connections

• DMX: 3-pin XLR In/Out pigtails
• Power: Locking Power In/Out (Locking Power cable included)

Dimensions & Weight

• Dimensions (LxWxH): 135 x 108 x 170mm
• Weight: 1.2 kg
