ADJ Dotz Par RGBL

Product Information

SKU: 1223200107

GTIN: 810087372835

HS-Code: 94054239 90

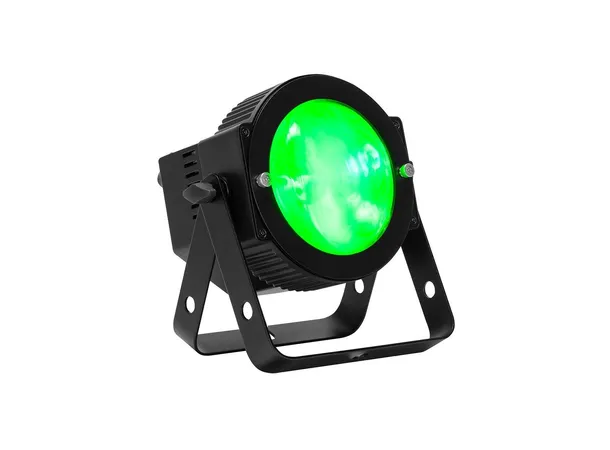

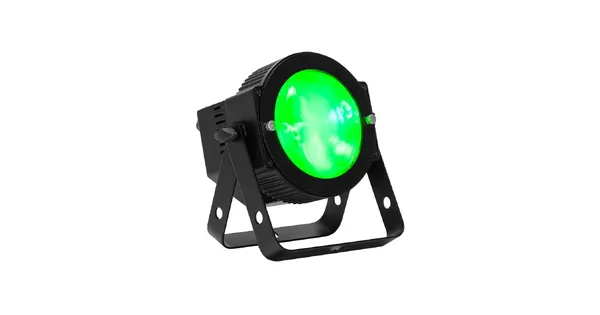

The ADJ Dotz Par RBGL offers lighting designers a brilliant, even wash of light using the highly efficient Chip On Board (C.O.B.) with red, green, blue and lime LED chips. With the addition of lime, the Dotz Par RGBL offers a high CRI output, advanced color mixing, plus linear color temperature color 2700K to 6500K) with built-in preset color temperatures. Additionally, the fixture has 16-Bit fine color control with 64 built-in color macros and a beam output of 30-degrees.

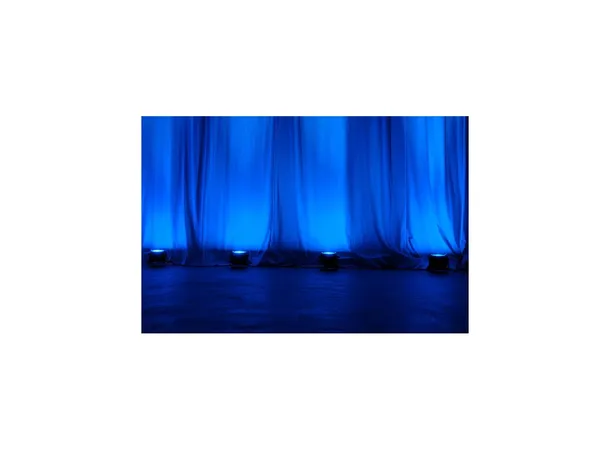

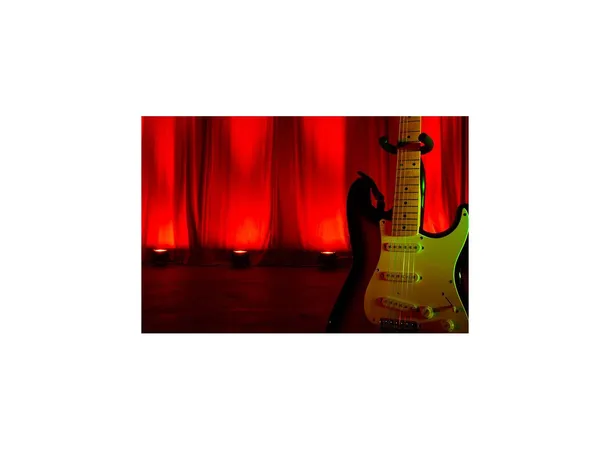

The Dotz Par RGBL has a small footprint and is light in weight making it idea for temporary event production or installation into small stages, churches nightclubs or anywhere entertainment lighting is required. The 4-button, DMX display allows for easy navigating into the fixtures flexible functions. There are 6 operational modes, 6 dimmer curve modes, 4 selectable dim curves and supports DMX and RDM protocols.

The fixture has locking power in and out sockets to daisy chain power, plus 5-pin DMX in/out sockets. The supplied scissor yoke allows for flexible use allowing the fixture to be hung in the air or set on the ground.

Source

• • Light Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red, 4x Green, 4x Blue & 4x Lime)
• • 20,000 Hours Rated Life

Photometric Data

• • 18° Beam Angle (With included lens)
• • 29.7° Field Angle (With included lens)
• • CRI: 85.3
• • CRI R9: 79.1
• • Lux: 957 (@ 3m, Full On)
• • Lumens: 1102

Effects

• • Linear Color Temperature Control (2700K to 6500K)
• • Preset Color Temperatures
• • 16-Bit Fine Color Control (Red, Green, Blue & Lime)
• • 64 built-in Color Macros

Control

• • 4-button, DMX digital display on rear panel
• • 6 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, Wireless RF and DMX Controlled
• • Supports RDM (Remote Device Management)
• • With Wired Digital Communication Network
• • 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• • 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
• • 1200Hz LED Refresh Rate
• • LED pulse and strobe effect
• • Electronic Dimming: 0 - 100%

Construction / Connections

• • Plastic construction
• • IEC Locking, In/Out Power connectors
• • Indoor 5-pin, XLR DMX, In/Out sockets
• • Scissor Yoke

Electrical/Thermal

• • Multi-voltage operation: AC 100-240V, 50/60Hz
• • Max Power LInk: 57 @230V.
• • Max power consumption: 36W
• • Fuse protected: T1A/250V (5*20mm)

Dimensions & Weight

• • Length: 131.8mm
• • Width: 209mm
• • Height: 221.44mm
• • Weight: 2kg

Approvals/Ratings

• • CE
• • IP20

Included Accesories

• (1) Power Cord
• (1) Lens Kit
