The Digital Evolution of an Analog Classic
Acclaimed for their exceptional sound quality, versatility, and intuitive design, Yamaha’s MG series compact analog mixers have become an industry standard for users in a vast range of applications. The MGX series breaks considerable new ground, ushering in a new era of MG excellence, driven by a deeper pursuit of "True Sound" that faithfully captures and reproduces every nuance of a performance, as well as an impressive expansion of functionality and system flexibility to adapt to the ever-changing landscape of sound reinforcement and music production.
Blending advanced digital technology with the trusted legacy of the MG series, the MGX series is adept at handling a variety of demanding applications, including live sound, installed sound systems, podcast/live streaming and recording, as well as hybrid live and other video production applications that require handling not only audio but also video signals, supported by our two video models.
The digital evolution of an analog classic, the MGX series digital mixers will inspire performers, engineers, operators, and audiences in any audio environment, with their superior sound and exceptional performance.

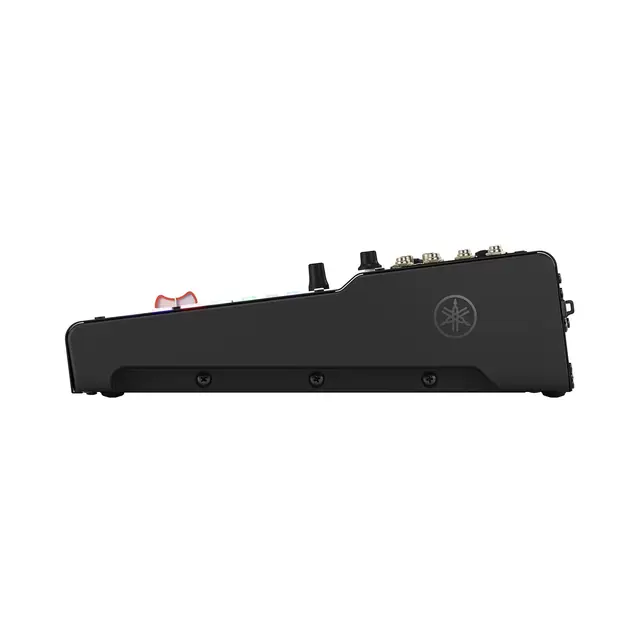

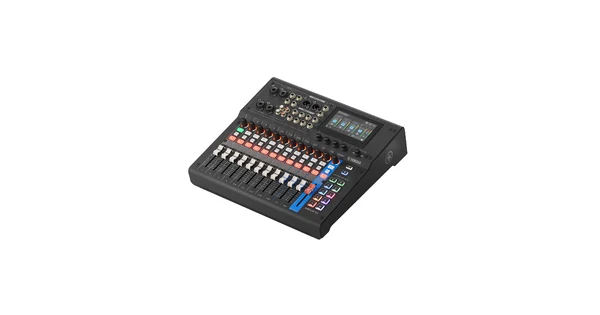

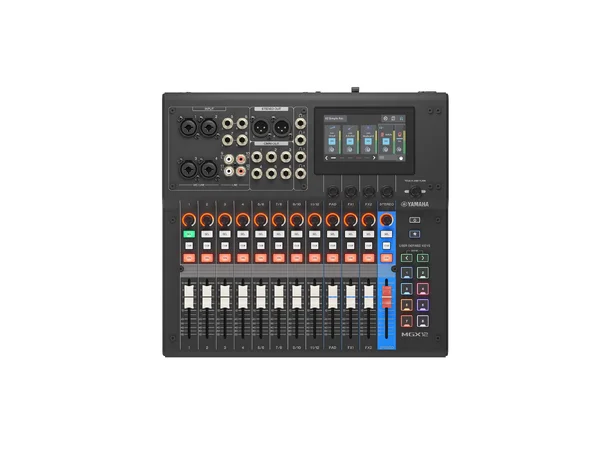

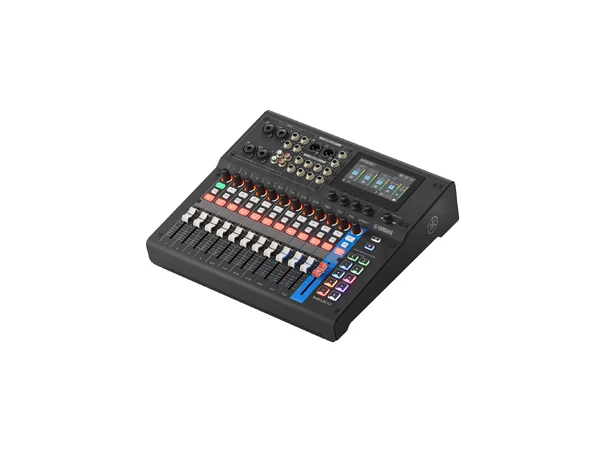

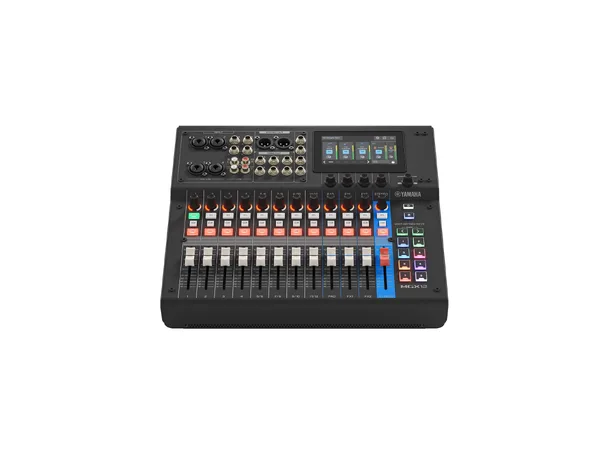

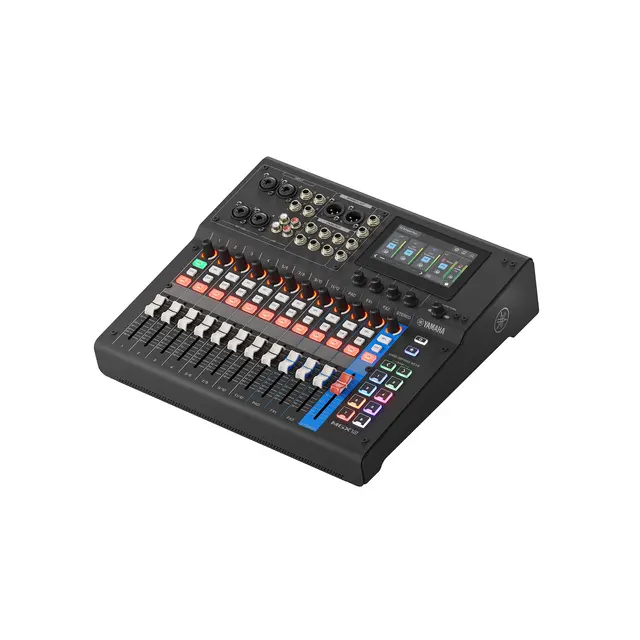

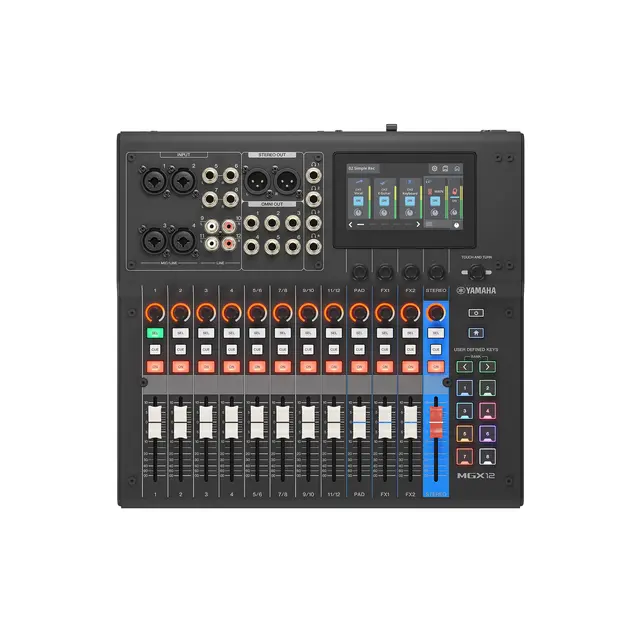

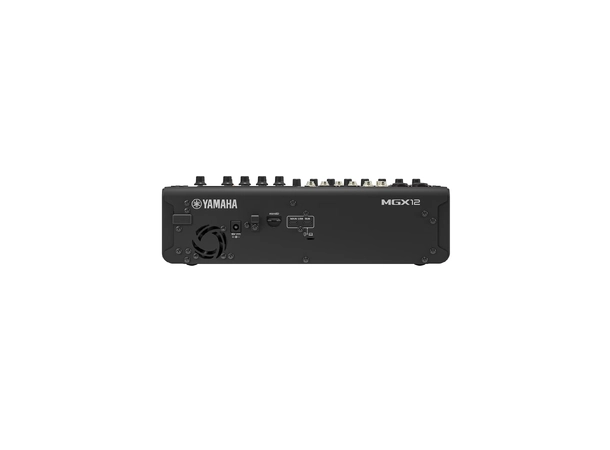

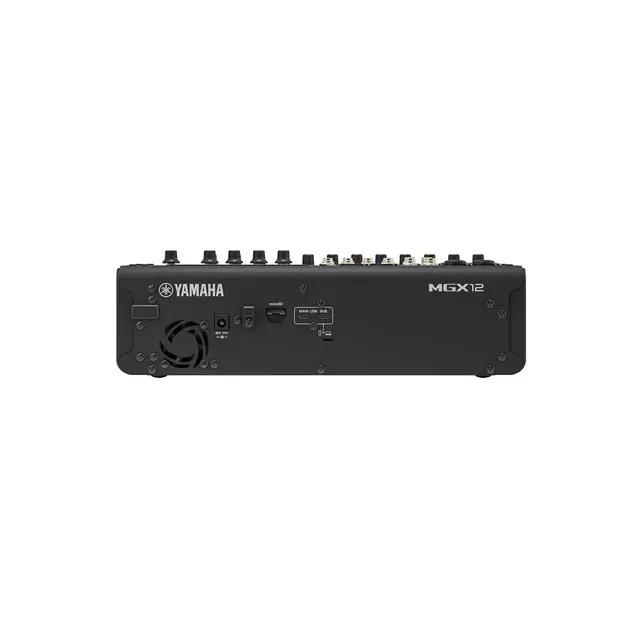

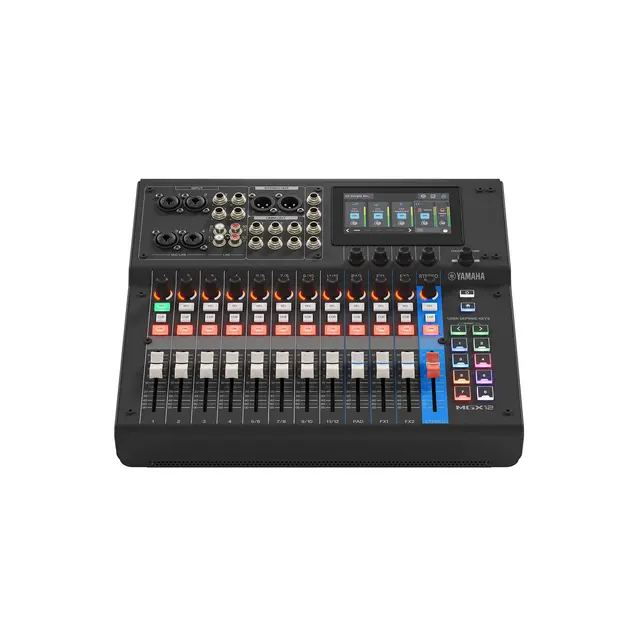

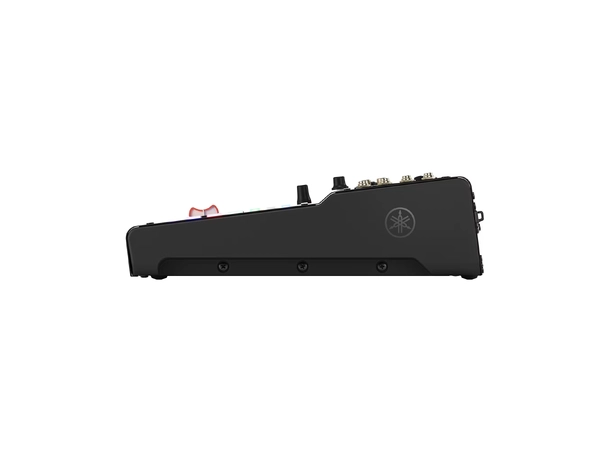

The portable MGX12 compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The MGX12 offers superb sound quality, intuitive and fast setup and operation, and professional-level features.
11 + 1 fader configuration (non-motorized fader)
A 4.3-inch touchscreen with five control knobs
Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
Busses: 1 STEREO + 8 MIX
Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones
USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)
USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
Built-in DSP processor for professional sound and latency-free monitoring
Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)
