Specification

Main voltage: 3x230V / 400V / 40-65Hz
Main current: 3x63A
Protection: General Electric 1P / 1P+N

• Main switch or GFI 30mA
• DMX A input
• Analog input
• Scene call input
• Software patch
• Preheat for all or separate channel

Dimensions: 483 x 132 x 460mm (WxHxD)

 *The red text applies to this product. Various customizations are available and are detailed in the product description.

Ground Fault Interrupter (GFI) 30mA

A Ground Fault Interrupter (GFI) is a device designed to protect against electric shock by quickly disconnecting a circuit if it detects an imbalance in the current. A GFI rated at 30mA refers to a ground fault interrupter that trips when it detects a leakage current of more than 30 milliamperes (mA) to ground. This is a very low value, but sufficient to prevent serious electric shocks or fire hazards without causing unnecessary interruptions for minor leaks.

Description

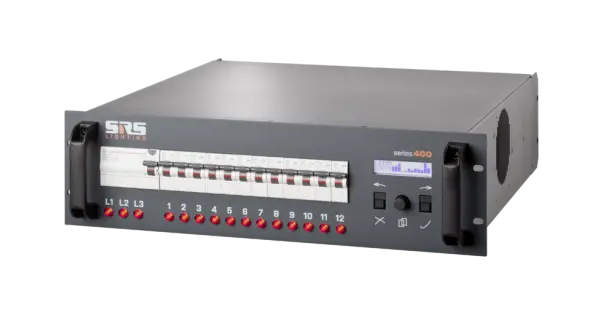

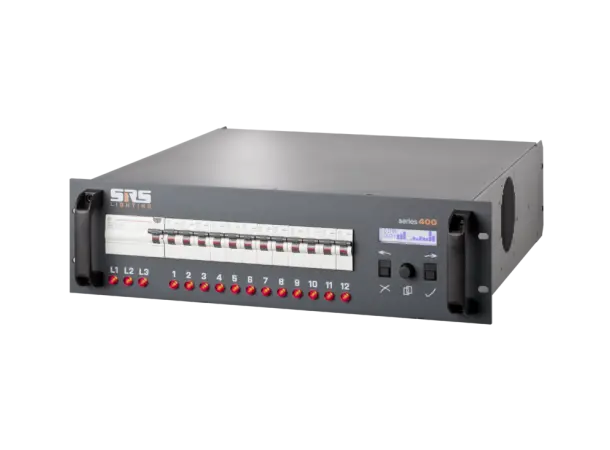

The digital dimmer pack DDP12 is designed to fulfill all the requirements for most light demanding applications such as theatres, live concerts and also permanent installations.

Unit is controlled by a high-speed RISC processor with high resolution D/A converter. This technology guarantees a trouble–free operation and a high proof against negative influence of surroundings with top class risetime 400us.

All DDP series400 dimming units are covered by a 5-year warranty.
