Specification

Main voltage: 3x230V / 400V / 40-65Hz
Main current: 3x20 up to 3x63A
Protection: General Electric 1P / 1P+N /1P+1P

• DCdrive/pulse driving of triacs
• RELAY/DIMMER on single channel - depends on curve
• Theater or touring application
• Rise-time of 400us
• Main Switch / GFI 30mA per unit
• MCB or RCBO per channel
• Double DMX input + RDM support
• Ethernet connection / Art-Net / SRS.net / sACN
• Software patch of Manual / DMX A / DMX B / Ethernet
• Preheat for all or a separate channel
• Free monitoring software
• 100% duty cycle

Dimensions: 483 x 132 x 460mm (WxHxD)

*The red text applies to this product, several customizations can be made, and is described in this product description.

Main Switch

A “main switch” is a device that allows users to disconnect the entire electrical system (or a large part of it) from the power supply. This is especially useful in emergencies or during maintenance work, as it provides a safe way to prevent electrical current from flowing into the system. The main switch is typically located in or near the fuse box and should be easily accessible.

Ground Fault Interrupter (GFI) 30mA

A Ground Fault Interrupter (GFI) is a device designed to protect against electric shock by quickly disconnecting a circuit if it detects an imbalance in the current. A GFI rated at 30mA refers to a ground fault interrupter that trips when it detects a leakage current of more than 30 milliamperes (mA) to ground. This is a very low value, but sufficient to prevent serious electric shocks or fire hazards without causing unnecessary interruptions for minor leaks.

Description

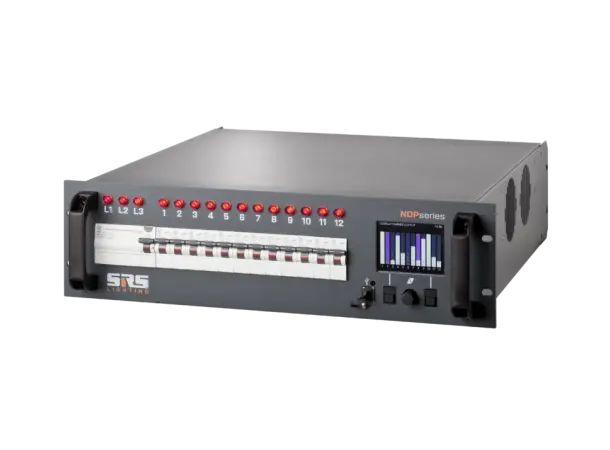

The network dimmer pack NDP12 is designed to fulfill all the top requirements of the most demanding lighting applications e.g. theatres, live concerts and also permanent installations. Unit was especially created for users requiring maximum flexibility, top class features and superb network connections.

Unit is controlled by a high speed processor with smooth 16-bit dimming resolution via specially designed zero-crossing circuit. This technology guarantees trouble–free operation and high proof against the influence of negative surroundings with top class rise-time of 400us.

Moreover, the network dimmer pack NDP12 comes with NDP-DC+RELAY feature that is a DC DRIVE/RELAY switch with rating of 16A and possibility to turn on/off via curve.

All NDPseries dimming units are covered by a 5-year warranty.
