SPECIFICATION
- 5-channel DMX/RDM splitter / booster
- Optically isolated outputs 1000V
- Amplification on each output
- 2x LED indicator of the DMX/RDM status for each output
- Termination switch with LED indication
- Full range power supply: 85V-264V, 50/60Hz, 5W
- Neutrik PowerCon connector
- Truss / wall-mount
- M10 thread for C-clamp connection
- Optional wall-mount adapters
- LIFE-TIME WARRANTY
DESCRIPTION

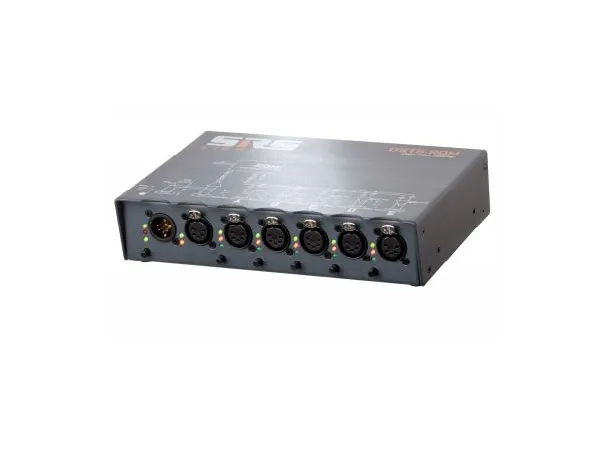

The DST5-RDM is a handy 5-channel portable splitter / booster of both the DMX and RDM signal. Every output features LED indication of the DMX/RDM status and an RDM filter, and is optically isolated up to 1000V. The unit also provides a true output for easy daisy-chaining of other DMX/RDM devices.
RDM filter functions:
- Easy mix and match the RDM and non-RDM devices on a single unit
- Removes RDM commands for legacy support
- When engaged, the corresponding channel works with standard DMX signal only
The DST5-RDM comes with 3- or 5-pin XLR connectors or a combination of them.
All SRS splitters are covered by a life-time warranty.
Firmware 1.4 on 16.7.2020 is fixing
1. RDM discovery time
2. RDM filter issues
3. FW version is shown by blinking on RDM LED without DMX after power cycle
