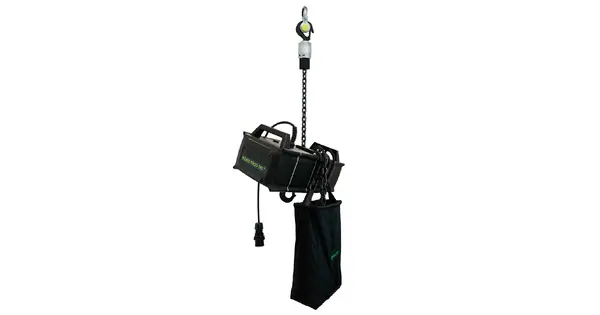

Prolyft NERO 1000Kg DC

CH NERO 1000KG DC D8+ 4M/M 400-3 10M

Varenr: PNE-1000DC-10
59 880,-eks mva.
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Ikke på lager (31 dager)
BeskrivelseTeknisk infoDokumenter
Beskrivelse

The Prolyft range is standard with a black chain. Standard on the low voltage and the direct control is the unique outside limit switch which it makes it very easy for the riggers to set limits on their rig positions. The RFID-tag which is on the hoist is the link to the database where the complete log of the specific hoist is saved.





COMPETENCES:

  • Unique database, registry & service software suite.
  • Lifetime warranty.
  • Quality manufacturing in the EU.
  • Certified products, comply to latest world standards.
  • Complete assortment with all accessories available.
  • Local availability.
  • Rubicon AS is your Service Partner



Advantages:

  • Standard with a black chain for the complete range.
  • Outside limit switch on low voltage and direct control.
  • Soft stopper, easy to position on a random place on the chain.
  • Fixed bracket allowing chainbag to move position related to use the motor-up or motor down.
  • The RFID-tag which is on the hoist, is the link to the unique and completely upgraded database.
  • Database with all the certificates and complete history of the hoist.
  • Low noise level: 67.5 dB at full load.
  • Damage reducing housing design, with hand grips integrated in cover trough and through coloured plastic covers.
Teknisk info

Produktinformasjon

Brake Size 8
Breaking time / 10 years 6300 h
Chain Self-Weight 1.39 kg/m
Connection Cable Length (75 ± 5) cm
Duty Factor 0,4
Falls of Chain 1
FEM Class 2m
Frequency 50 Hz
Insulation Class (Temperature Class) F in according to CEI 15-26
IP rate 55
Length of Chain 10M
Lifting Speed 4m/min
Load capacity 1000 kg
Load Wheel 5 pockets
Model D8+
Motor power 1 kW
Noise Level 67.5dB @ Full Load
Number of brakes 2
Safety Factor 8.1
Self-weight 43kg
Size of Chain 8x24mm
Starts per Hour 240
Stop limitation Outside Limit Switch
Type DC D8+
Type of Chain DIN EN 818-7 - type DAT - Zinc galvanized steel 80
Type of Control Direct or Low Voltage
WLL 1000kg
