ONE Series HDMI Cable

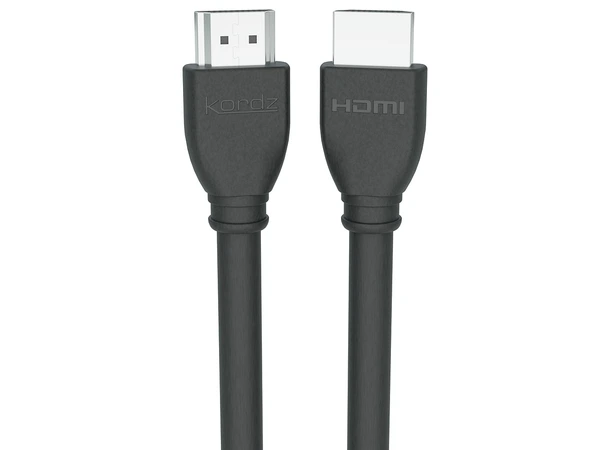

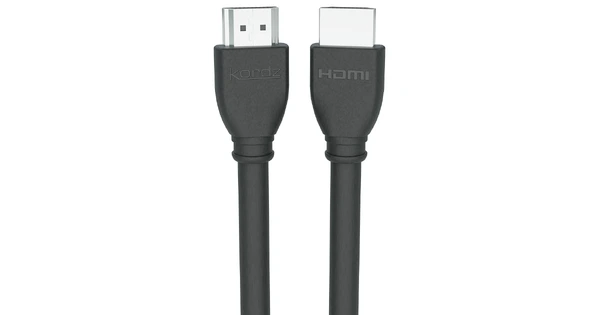

Kordz ONE Series HDMI makes performance possible with compactness and flexibility for plug and play requirements. Each cable is individually tested in line with the strict Kordz production process and backed by our Lifetime Guarantee. The cable supports High Speed with Ethernet in lengths up to 3m for 2160p (4K) and is HDMI certified.

Application

Video Format Support – Data rate per channel / Aggregate, TMDS Bandwidth

• All Lengths:
  • 480i/p, 576i/p: = 540Mbpsc / 1.62Gbps, 270MHz
  • 720p/60, 1080i/60: 742.5Mbpsc / 2.22Gbps, 371.25MHz
  • 1080p – 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
    • 23.98/24/29.97/30 – 742.5Mbpsc / 2.22Gbps, 371.25MHz
    • 50/59.94/60 – 148.5Mbpsc / 4.455Gbps, 742.5MHz
  • 3D-24/30 – 148.5Gbpsc / 4.455Gbps, 742.5MHz
  • 3D-50/60 – 2.97Gbpsc / 8.91Gbps, 1.485GHz
• Lengths to 3m only – High Speed:
  • 1080p – 10/12/16-bit RGB/YCbCr 4:4:4:
    • 50/59.94/60fps – max. 2.97Gbpsc / 8.91Gbps, 1.485GHz
  • 2160p (UHD/4K)
  • HDMI 1.4b – 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
    • 4096x2160p/24 (SMPTE) – 2.97Gbpsc / 8.91Gbps, 1.485GHz
    • 3840x2160p/23.98/24/29.97/30 – 2.97Gbpsc / 8.91Gbps, 1.485GHz
  • HDMI 2.0 – 8-bit YCbCr 4:2:0:
    • 2160p*/50/59.94/60 – 2.97Gbpsc / 8.91Gbps, 1.485GHz
• VESA Graphics: Supports all as defined by HDMI 2.0 specification, up to 8.91Gbps
• Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
• Audio Formats Support: PCM 2.0–7.1, DD/DTS HD 7.1, 3D Audio (10.2 | 22.2 | 30.2ch)
• 3D Audio: Supported – device & video format dependent
• HDMI Ethernet Channel: Supported – system dependent
• HDMI Audio Return Channel: Supported – system dependent

Technical Info

HDMI Certification

• = 3.0m Lengths:
  • HDMI CTS Certification: High Speed with Ethernet
  • Certified Data Rate: 3.4Gbpsc, 10.2Gbps aggregate
  • Supported Data Rate: > 3.4Gbpsc (4K UHD)
  • Supported HDMI Clock: 27–340MHz
• 5.0m – 10.0m Lengths:
  • HDMI CTS Certification: Standard with Ethernet
  • Certified Data Rate: 1.485Gbpsc, 4.56Gbps aggregate
  • Supported Data Rate: >1.485Gbpsc (1080p/60)
  • Supported HDMI Clock: 27–148.5MHz

Mechanical

• Cable Diameter: Cable gauge dependent
• Mounting Length: Cable gauge dependent
• Cable Bend Radius: Cable gauge dependent
• Retention Force (nominal): 9.9N (1kg / 2.2lbs) +10/-5%

Construction

• Primary Conductors: Solid 32–26AWG OFC, length dependent
• Insulation on TMDS: Polyolefin/Foamed PE/PE, length dependent
• Insulation on 4C + HEAC Pairs: Polyolefin/Foamed PE/HDPE, length dependent
• Shielding on TMDS Pairs: Al/Mylar
• Shielding Overall: AL/Mylar + AL braid 80% coverage
• Cable Jacket: PVC – = 3.0m lengths / UL CMG-rated – 5.0m–10.0m lengths
• HDMI Connector Shell: PVC Injection moulded, Nickel plated connector plate
• HDMI Connector Pins: Solid OFC, 15µ” 24K Gold plated
• Termination: Contactless IR induction soldering
• HDMI Backshell: PVC boot strain relief
