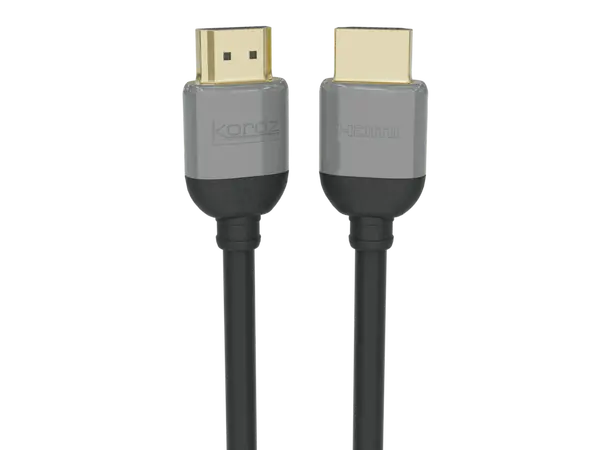

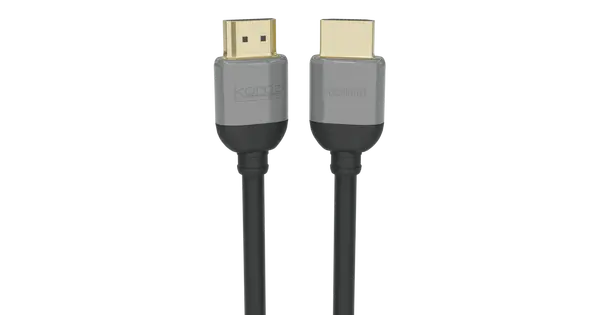

PRS4 HDMI Cable

The Kordz PRS4 Ultra High Speed 48Gbps HDMI Cables are designed to meet the high demands and rigours of professional integration, with their compact, gold-plated 2kg retention die-cast HDMI connectors, and highly flexible fire-rated cable. Ultra High Speed certified to 9m, they enable hassle-free and electronics-free installation and support the latest HDMI features when using 4K HFR or 8K devices.

For lengths 7m and above, these cables are active optical HDMI cables, ensuring reliable high-performance transmission over longer distances.

Technical Info

HDMI Certification

• 0.5m – 9.0m PASSIVE
• 10.0m – 20.0m ACTIVE OPTICAL
• HDMI CTS Certification: Ultra High Speed HDMI® Cable
• DPL Labs Certified Data Rate: 12.0Gbpsc, 48Gbps agg
• Supported Data Rate: =12.0Gbpsc, 48Gbps agg (8K UHD)
• Supported HDMI Clock: 1200MHz

Mechanical

• Cable Diameter: 5.5mm±0.30mm / 8.2mm±0.30mm
• Mounting Length: 41.9mm/1.96?
• Cable Bend Radius: 20.0mm/0.78? – 25.0mm/ 0.98?
• Retention Force (nominal): 20N (approx. 2kg / 4.4lbs) +10/-5%

Construction

• FRL/TMDS Conductors: OM2 (50/125µm) optical fibre
• Conductors: Bare copper, 32-26AWG
• Shielding Overall: Al-PET (nom. 25% overlapping, Al side face out) Tinned copper wire braiding (16/13/0.08mm), with nom. 85% coverage
• Cable Jacket Material: LSZH rated composite (10.0m – 15.0m), PVC composite (20.0m)
• HDMI Connector Shell: Anti-fatigue die cast Zn alloy, 1µ” 24K Gold plated
• HDMI Connector Pins: Solid OFC, 15µ” 24K Gold plated
• Active Technology: Directional, In-shell Optical Light Engine
• HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief

Additional Technical Info for 10m – 20m Active Optical Cables

• Cable Diameter: 5.5mm±0.30mm / 8.2mm±0.30mm
• Mounting Length: 41.9mm/1.96?
• Cable Bend Radius: 20.0mm/0.78? – 25.0mm/0.98?
• Retention Force (nom): 20N (approx. 2kg / 4.4lbs) +10/-5%
• FRL/TMDS Conductors: OM2 (50/125µm) optical fibre
• Conductors: Bare copper, 32-26AWG
• Shielding Overall: Al-PET (nom. 25% overlapping, Al side face out) Tinned copper wire braiding (16/13/0.08mm), with nom. 85% coverage
• Cable Jacket Material: LSZH rated composite (10.0m – 15.0m), PVC composite (20.0m)
• HDMI Connector Shell: Anti-fatigue die cast Zn alloy, 1µ” 24K Gold plated
• HDMI Connector Pins: Solid OFC, 15µ” 24K Gold plated
• Active Technology: Directional, In-shell Optical Light Engine
• HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief
