HOPS10T-Pro : Point Source

Versatile, high-output, full-range point source loudspeaker with a 3-way design and a powerful 1400 W rating.
Featuring DAC Technology, Quick Release Magnetic Grille, and Instafit Magnetic Waveguide, setup changes are easy without additional tools. The integrated CMS system, flange adapter, and various fast mounting accessories streamline handling for effortless deployment.

Overview

The latest innovation and addition to the HOPS Series family, offering exceptional performance and versatility, CODA Audio HOPS10T-Pro, is a high-output, three-way point source loudspeaker. It is a superior choice for a wide range of touring and mobile applications. The T version retains the same acoustic qualities of the installation model HOPS10i-Pro, but in an even more versatile, road-ready form, making it the go-to solution for concerts, live events, and temporary setups where high output and reliable performance are critical.

Advanced technologies

HOPS10T-Pro utilises the same advanced low-frequency driver technology found in CODA Audio’s CiRAY line-array system, ensuring pristine sound reproduction even at high pressure levels. With his advanced triaxial design, featuring dual 10″ neodymium ultra-low distortion cone drivers and a 1.4″ coaxial neodymium mid/high driver, it ensures a perfectly coherent and uniform wavefront.

CODA Audio’s proprietary technologies— patented Dynamic Airflow Cooling (DAC) and Phase Linearity— provide superior heat dissipation and unmatched sonic clarity with phase-coherent audio output.

HOPS10T-Pro: The perfect solution for mobile applications

The HOPS10T-Pro brings high-performance capabilities to mobile and touring applications. Its specialised enclosure allows it to also function as a high-powered monitor.

With its rugged, portable design featuring Quick Release Magnetic Grille and Instafit Magnetic Waveguide, this version is optimised for easy transportation and quick setup. The Instafit Magnetic Waveguide ensures quick, easy, and tool-free changing of directivity coverage: 80° x 50° or 50° x 80°.

The HOPS10T-Pro is available with a range of accessories such as fast mounting vertical and horizontal brackets, stand fitting adapter or quick lock flying frame. It features CMS (CODA Mobile Suspension) and multiple M6 and M8 threaded points for flexible mounting options.

The IP54/55-rated cabinet is built to withstand challenging environmental conditions and physical impact.

When paired with the LINUS6.4 amplifier and G18 or U4-Sub, the the full potential of the HOPS10T-Pro is revealed – power, precision, and perfection, all in one seamless experience.

The perfect mobile loudspeaker, the HOPS10T-Pro, is also available as HOPS10i-Pro installation version.

Main Features

• High-output 3-way versatile full-range point source for mobile applications
• DAC Technology
• Superior sound with linear phase response
• Frequency range: 50 Hz – 22 kHz (-6 dB)
• High power with passive power handling of 1400 W (AES)
• Crystal-clear sound from 1.4” mid/high coaxial ring-diaphragm Nd driver
• Ultra-low distortion with dual 10” Nd woofers
• Instafit Magnetic Waveguide 80° x 50° (rotatable)
• Max. peak SPL 144 dB (A)

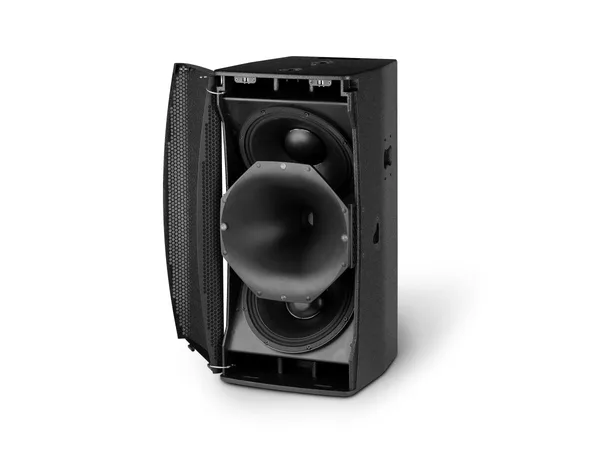

• Quick Release Magnetic Grille
• Extreme durability from the multiplex enclosure with polyurea coating
• Simple mounting with a range of accessories
• System integration with LINUS Loudspeaker Management Amplifiers
