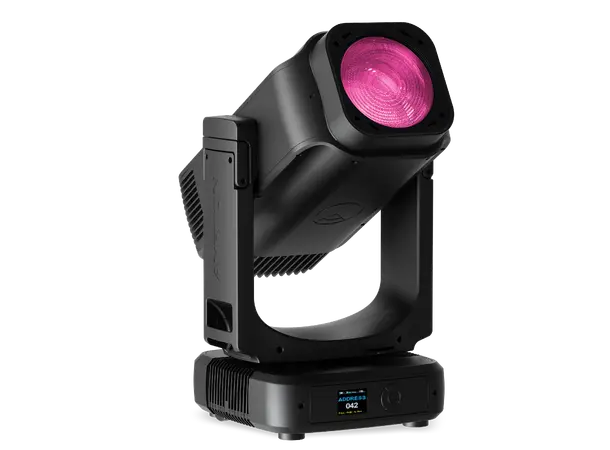

Ayrton VELOCE Wash TC, CRI=97,2 ,TLCI=98 39 Kg, 4 - 57 ° Zoom, 20' Lumen, WHITE Ayrton VELOCE Wash TC, CRI=97,2 ,TLCI=98 39 Kg, 4 - 57 ° Zoom, 20' Lumen, WHITE Ayrton VELOCE Wash TC, CRI=97,2 ,TLCI=98 39 Kg, 4 - 57 ° Zoom, 20' Lumen, WHITE

Ayrton VELOCE Wash TC, CRI=97,2 ,TLCI=98

39 Kg, 4 - 57 ° Zoom, 20' Lumen, WHITE

Varenr: 012545W
169 571,-eks mva.
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
FargeHvit
Ayrton VELOCE Wash TC, CRI=97,2 ,TLCI=98 39 Kg, 4 - 57 ° Zoom, 20.200 Lumen
Ayrton VELOCE Wash TC, CRI=97,2 ,TLCI=98 39 Kg, 4 - 57 ° Zoom, 20' Lumen, WHITE
.
Fixture Type
Vis varianter som liste
Ikke på lager (35 dager)
BeskrivelseTeknisk infoDokumenter
Beskrivelse

Following the launch and immediate success of the all-new Veloce Profile, Ayrton is proud to unveil Veloce Wash, the fourth luminaire in the “Ultimate” series, boasting a cutting-edge design and breathtaking performance.


Built on the advanced principle of perfect scalability, this ultra-compact luminaire pushes the boundaries of integration with a sealed 850 W high-efficiency LED module, calibrated at 6500 K, delivering a powerful 40,000-lumen output. With an optimal black body positioning, it ensures perfect light neutrality. Like all Ultimate series luminaires, Veloce Wash is a versatile tool designed to perform in all conditions—indoors, outdoors, and even in coastal environments. The use of lightweight aluminum components significantly reduces weight, achieving the best weight-to-power ratio on the market, without resorting to costly or unstable special alloys. Weighing just 39 kg, Veloce Wash is the lightest luminaire in its category. For greater creative freedom, it features continuous, unlimited pan & tilt rotation. Equipped with a 190 mm front lens, its proprietary 12-lens optical system delivers a 14:1 zoom ratio, covering a versatile range from 4 ° to 57 °.

Veloce Wash integrates an ultra-fast CMY progressive colour-mixing system with a gradient disk that provides a continuous filtering surface, ensuring perfect homogeneity.


This innovative system enhances colour brightness and renders pastel shades with exceptional accuracy. A progressive extended CTO enables precise colour temperature adjustment from 2900 K to 6500 K, complemented by a 7-position colour wheel equipped with specialty filters for unparalleled creative potential. For greater flexibility, Veloce Wash features adjustable CRI tuning from 70 to 86. The framing system allows for precise shutter blade positioning across 100% of the surface, with ±90 ° rotation. A 15-blade iris diaphragm, with an adjustable aperture range from 15% to 100%, optimises the beam in Beam mode. The effects section includes a 6-position rotating glass gobo wheel, a multi-layer CMY+RGB animation wheel, a beam ovaliser, and an indexable rotating scrim filter. The all-new progressive frost system provides precise control over diffusion levels, offering seamless adjustment to match any creative need. Veloce Wash is a one-of-a-kind luminaire, balancing power, creativity, precision, and subtlety. A truly exceptional fixture with no equivalent on the market.

Teknisk info

Produktinformasjon

Colours
  • Fixed colour wheel with seven complementary colours
  • Sophisticated colour mixing system providing CMY color mixing
  • Variable CTP
  • Variable CTO colour temperature correction
Compliance
  • FCC Part 15, Subpart B:2018
  • US (Safety & EMC)
  • EU (EMC & LVD):
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • UL 1573
Control
  • 60 DMX channels footprint
  • ArtNet & sACN protocol through Ethernet cable
  • DMX 512 protocol, through DMX cable or a wireless system
  • Local control panel, with IP65 LCD display
  • Stand-alone mode and Main/Follow modes
  • DMX-RDM compatible
Cooling System
  • IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
  • Safety protection against excess temperature
  • Selectable ventilation user modes including Super Silent Mode
  • Advanced liquid cooling system
Dimmer / Strobe
  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second
Effects
  • Beam ovalising filter, indexable and rotatable
  • Focusable CMY & RGB graphic animation effect-wheel with continuous rotation in both directions
Farge Hvit
Framing System
  • 4 individually positionable shutter blades on a 100% surface area in all positions
  • Rotation of the shutter blades module: +/- 90 °
Frost 0% to 100% variable linear frost
Gobos
  • Gobo diameter: 30 mm
  • Image diameter: 18 mm
  • Indexable rotating gobo wheel with six high precision glass gobos and a scrim filter
  • Progressive scrim filter to reduce light intensity at shallow projection angles
  • Adjustable speed rotating gobo in both directions
  • Gobo thickness: 1.1 mm
Hardware Features
  • 5 menu buttons to set functions
  • Excess-temperature protection
  • Graphic LCD display for addressing and special functions settings, with flip function
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • IP65 PowerCON TRUE1 male connectors for power connection
  • IP65 RJ45 IN / OUT connectors for ArtNet™ connection
  • IP65 XLR 5 pin male and female connectors for DMX connection
Housing
  • Arms in self-extinguishing fire retardant ABS PC (V0 class)
  • Four-side handles for transportation
  • Head in die-cast aluminium
  • IP65 protection rating
  • Moving-head skeleton made of aluminium and steel metal plates
  • Base in die-cast aluminium
  • Heatsinks in aluminium and copper
  • Four heavy-duty feet for better stability
  • Exterior finish: black (Carbon)
Installation
  • Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
  • Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point
Iris diaphragm
  • Fast iris diaphragm, adjustable dynamic effects
  • Iris range: 15% to 100% open
Light source
  • 58,000 lumens white light engine
  • Colour temperature output: 6000 K
  • CRI = 97.2
  • Flicker-free source management suitable for TV applications and all video-recorded events
  • TLCI = 98
  • Total luminaire output: up to 40,000 lumens (integrating sphere measurement, Stage Fan mode)
  • Rated life (L70): up to 40,000 hours
Movement
  • High-res stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Moving-head operated via either 8- or 16-bit resolution
  • Moving-head range: infinite pan and tilt rotation
  • Pan and tilt automatic repositioning
  • Extremely accurate positioning
Operating parameters
  • Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
  • Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
  • Minimum usage distance: 4 m (13.123 ft)
  • Operating positions: all (device on floor or fixed to a support)
Optics
  • 12-element 14:1 zoom high-resolution optic system
  • 190 mm frontal Fresnel lens
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • Zoom aperture: 4 ° to 57 °
Power Supply
  • Power: 1300 W maximum
  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60 Hz
PRODUCT CODES 012541: VELOCE WASH – ULTIMATE IP65 6 SERIES
Size
  • Flight-case foam: 680 x 640 x 500 mm (l x h x d)
  • Product: 405 x 757 x 367 mm (l x h x d)
Software Features
  • Information menu including hour counter, temperature, software version
  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Total Flux Up to 20,200 lm (@zoom 128, fan mode STAGE, Sphere)
Weight Product: 39 kg
