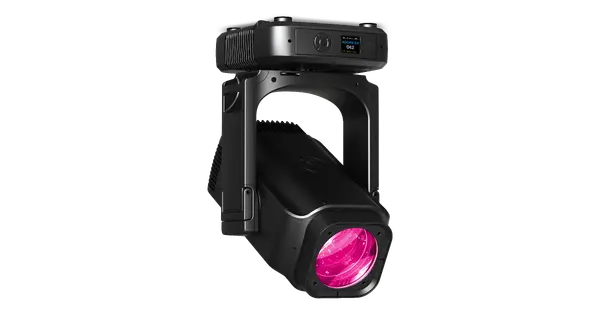

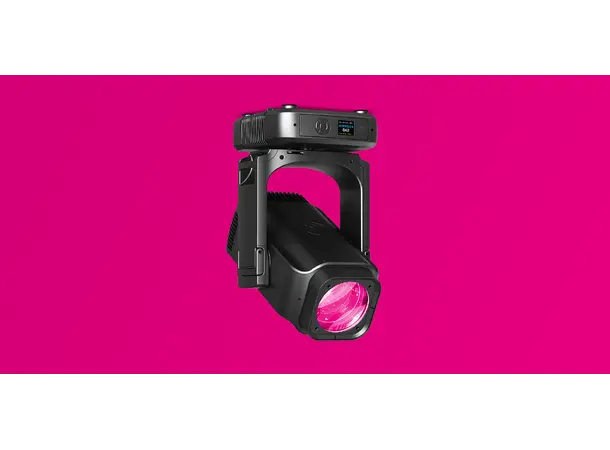

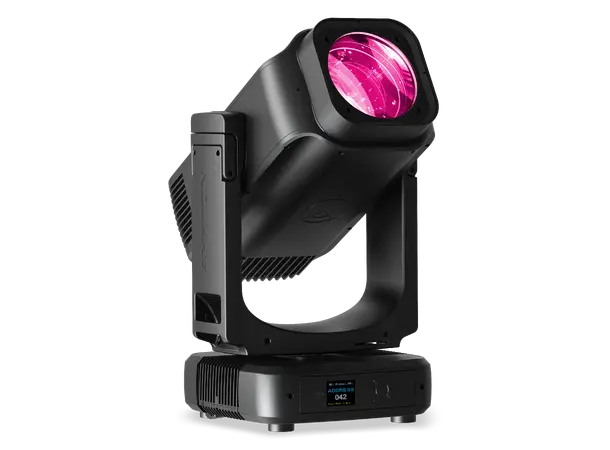

Ayrton VELOCE Profile TC, CRI-97,TLCI-98 40.5 Kg, 4 - 52° Zoom, 22.620 Lumen Ayrton VELOCE Profile TC, CRI-97,TLCI-98 40.5 Kg, 4 - 52° Zoom, 22.620 Lumen Ayrton VELOCE Profile TC, CRI-97,TLCI-98 40.5 Kg, 4 - 52° Zoom, 22.620 Lumen Ayrton VELOCE Profile TC, CRI-97,TLCI-98 40.5 Kg, 4 - 52° Zoom, 22.620 Lumen

Ayrton VELOCE Profile TC, CRI-97,TLCI-98

40.5 Kg, 4 - 52° Zoom, 22.620 Lumen

Varenr: 012525
163 306,-eks mva.
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
FargeSort
Ayrton VELOCE Profile TC, CRI-97,TLCI-98 40.5 Kg, 4 - 52° Zoom, 22.620 Lumen
Ayrton VELOCE Profile TC, CRI-97,TLCI-98 40.5 Kg, 4-52° Zoom, 22.620 Lumen, WHITE
.
Fixture Type
Vis varianter som liste
1 På lager
BeskrivelseTeknisk infoDokumenter
Beskrivelse

After the worldwide success of the Rivale Profile and more than 10,000 units in use in less than a year, Ayrton is proud to present its brand new Veloce Profile, the second ultra-equipped luminaire in the « ULTIMATE » family, specially designed for large spaces.

The ULTIMATE range has broken the codes with its avant-garde design. A family of perfectly homothetic luminaires that reinforces the sense of unity between the different models. Veloce Profile is a versatile luminaire capable of operating in all conditions, indoors and outdoors, including salty environments. The use of new, lighter aluminium parts has resulted in a significant reduction in weight, with the aim of achieving the best weight to power ratio on the market without the use of expensive or unstable special alloys. Veloce Profile is the lightest luminaire in its category, weighing just 40.5 kg. For greater freedom of movement and design flexibility, Veloce Profile comes as standard with infinite continuous rotation on both pan & tilt axes. Veloce Profile pushes back the limits of integration with a brand new sealed monoblock 850 W high efficiency LED module, calibrated at 6500 K, which offers a luminous flux of 43,000 lumens with optimum positioning on the black body to achieve perfect light neutrality.

The proprietary 13-lens optical system offers a zoom ratio of 13:1 and a range of use from 4 ° to 52 °. Veloce Profile features a 180 mm front lens, giving an ultra-intensive 4 ° beam.

Veloce Profile, like all the luminaires in the « ULTIMATE » range, adopts a revolutionary new CMY colour mixing system with ultra-fast high-definition discs. This single-layer system provides a clear improvement in colour intensity during reproduction. An ultra-fast, high-definition single-disc progressive CTO enables precise colour temperature adjustment from 2900 K to 6500 K, and a 7-position colour wheel with special filters completes the palette of tools dedicated to colour creation. For specific applications requiring perfect colour reproduction, Veloce Profile offers a subtle adjustment of the colour rendering index from 70 to 86. A new, ultra-precise framing module makes it possible to isolate any object thanks to the surgical positioning of each shutter blade over 100% of the surface with +/- 90 ° rotation. Veloce Profile provides the ultimate sensations. An accomplished luminaire synonymous with high performance, unbridled creativity, refinement and power. A luminaire you won’t want to do without.

Teknisk info

Produktinformasjon

Colours
  • Fixed colour wheel with seven complementary colours
  • Sophisticated colour mixing system providing CMY color mixing
  • Variable CTP
  • Variable CTO colour temperature correction
Compliance
  • FCC Part 15, Subpart B:2018
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • UL 1573
Control
  • ArtNet™ & sACN protocol through Ethernet cable
  • Choice of 2 DMX modes (from 44 to 67 DMX channels)
  • DMX 512 protocol, through DMX cable or a wireless system
  • Local control panel, with IP65 LCD display
  • Stand-alone mode and Main/Follow modes
  • DMX-RDM compatible
Cooling System
  • IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
  • Safety protection against excess temperature
  • Selectable ventilation user modes including Super Silent Mode
  • Advanced liquid cooling system
Dimmer / Strobe
  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second
Effects
  • 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
  • Focusable graphic animation effect-wheel with continuous rotation in both directions
Farge Sort
Framing System
  • 4 individually positionable shutter blades on a 100% surface area in all positions
  • Rotation of the shutter blades module: +/- 90°
Frost 2 frost filters one light, one heavy
Gobos
  • 2 indexable rotating gobo wheel with seven high precision glass gobos, plus open position
  • Gobo diameter: 30.0 mm
  • Image diameter: 19.0 mm
  • Adjustable speed rotating gobo in both directions
  • Gobo thickness: 1.1 mm
Hardware Features
  • 5 menu buttons to set functions
  • Graphic LCD display for addressing and special functions settings, with flip function
  • Integrated wireless CRMX TiMo RDM receiver from LumenRadio
  • IP65 PowerCON TRUE1 male connectors for power connection
  • IP65 RJ45 IN / OUT connectors for ArtNet connection
  • IP65 XLR 5 pin male and female connectors for DMX connection
  • Excess temperature protection
Housing
  • Arms in self-extinguishing fire retardant ABS PC (V0 class)
  • Four-side handles for transportation
  • Head in die-cast aluminium
  • IP65 protection rating
  • Moving-head skeleton made of aluminium and steel metal plates
  • Base in die-cast aluminium
  • Heatsinks in aluminium and copper
  • Four heavy-duty feet for better stability
  • Exterior finish: black (Carbon)
Installation
  • Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
  • Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point
Iris diaphragm
  • Fast iris diaphragm, adjustable dynamic effects
  • Iris range: 15% to 100% open
Light source
  • Colour temperature output: 6000 K
  • CRI = 97.2
  • Flicker-free source management suitable for TV applications and all video-recorded events
  • Rated life: L70: up to 40,000 hours
Movement
  • High-res stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Moving-head operated via either 8- or 16-bit resolution
  • Moving-head range: infinite pan & tilt rotation
  • Pan and tilt automatic repositioning
  • Extremely accurate positioning
Operating parameters
  • Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
  • Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
  • Minimum usage distance: 4 m (13.123 ft)
  • Operating positions: all (device on floor or fixed to a support)
Optics
  • 13-element 13:1 zoom high-resolution optic system
  • 180 mm frontal lens
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • Zoom aperture: 4 ° to 52 °
Power Supply
  • Power: 1300 W maximum
  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60 Hz
PRODUCT CODES 012521: Veloce Profile – Ultimate IP65 6 Series
Size
  • Flight-case foam: 680 x 640 x 500 mm (l x h x d)
  • Product: 404 x 757 x 366 mm (l x h x d)
Software Features
  • Information menu including hour counter, temperature, software version
  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
TLCI 98
Total Flux 22,620 lm (@zoom 128, fan mode STAGE, Sphere)
Weight Product: 40.5 kg
