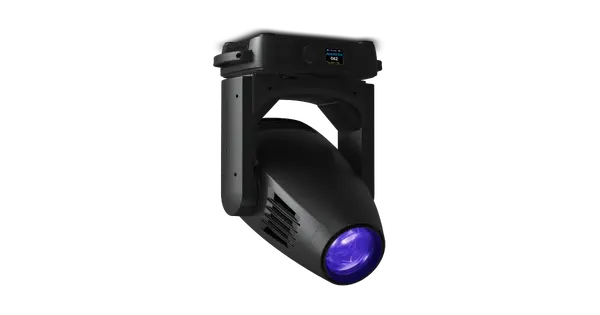

Ayrton KHAMSIN S - 750 W

40,000 lumens, 7000 K output

143 611,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Ayrton KHAMSIN S - 750 W 40,000 lumens, 7000 K output
Ayrton KHAMSIN S WHITE - 750 W 40,000 lumens, 7000 K output
Ayrton KHAMSIN S RAL - 750 W 40,000 lumens, 7000 K output
Fixture Type
Vis varianter som liste
ikke på lager (35 dager)
BeskrivelseTeknisk infoDokumenter

Ayrton has once again pushed the limits with a newly designed “pro?le” luminaire… Khamsin… squeezing a 750 W LED module into the highly compact Ghibli format, while offering 60% more light output.

To make the luminaire this compact, AYRTON has completely redesigned its internal structure by using cast aluminium sides. The size of the cooling system also had to be dramatically reduced and made even more efficient. This high-end luminaire also features a double rotating gobo wheel on a single axis that will allow you to achieve astonishing high-definition morphing effects. Like all luminaires in the AYRTON product line, KHAMSIN is available in two versions: KHAMSIN S is designed for scenic applications. It is equipped with a new LED module, delivering powerful metallic white light with record-breaking output of 40,000 lumens and a colour temperature of 7000 K. Devised specifically for applications that require perfect colour reproduction, KHAMSIN TC is equipped with an entirely new LED module using a monochromatic light source with a native colour rendering index greater than 90, extremely high TM30 readings and a colour temperature of 6400 K.

In its quest for perfection, Ayrton has developed a fixture that will turn heads. With such a versatile and compact luminaire you can only imagine the creative possibilities!

The proprietary optical system, fitted with 13 lenses, features a 158 mm frontal lens and delivers an 8:1 zoom ratio and a zoom range of 7° to 58°. The high-quality optics offer excellent image reproduction and produce an extremely uniform flat beam with no hot spot, ensuring a perfectly homogeneous colour mix regardless of the colour combination selected. Feature-rich from the factory, KHAMSIN includes a CMY colour mixing system, which, combined with a variable CTO and one wheel with six complementary colours, produces an infinite palette of vivid pastels and saturated colours. The framing section allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. The effects section includes two wheels with six interchangeable HD glass gobos; a continuous dynamic effects wheel; a 15-blade iris diaphragm; two frost filters: one light frost, one heavy frost; two rotating prisms: one circular with 5 facets, one linear with 4 facets. KHAMSIN is the perfect lighting solution for large venues, such as arenas and stadiums dedicated to major events.

Teknisk info


  • CMY colour mixing
  • Fixed colour wheel with six complementary colours
  • Variable CTO colour temperature correction
  • EU (EMC & LVD):
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • US (Safety & EMC):
  • UL 1573
  • FCC Part 15, Subpart B: 2018
  • ArtNet™ & sACN protocol through Ethernet cable
  • Choice of 3 DMX modes (from 40 to 64 DMX channels)
  • DMX 512 protocol
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • Local control panel, with LCD display
Cooling System
  • Variable speed fans for quiet operation
  • Ventilation user’s modes with Silent Mode
  • Advanced liquid cooling system
  • Safety protection against temperatures excesses
Dimmer / Strobe
  • Electronic dimmer, 0 to 100%
  • Strobe effect 1 to 25 flashes per second
  • 2 rotating and indexable prisms
  • Animation effect-wheel, continuous rotation
Framing System
  • 4 individually positionable shutter blades
  • Rotation of the framing system module: +/- 45°
Frost 2 frost filters: one light, one heavy
  • Adjustable-speed rotating gobo in both directions
  • Image diameter: 24.0 mm
  • 2 indexable rotating gobo wheels
  • Gobo diameter: 34.0 mm
  • Gobo thickness: 1.1 mm
Hardware Features
  • powerCON TRUE1 male connector for power connection
  • XLR 5 pin male and female connectors
  • ethercon RJ45 IN / OUT connectors for ArtNet™
  • Graphic LCD display
  • Clicking jog wheel to set functions
  • Excess temperature protection
  • Wireless CRMX TiMo™ RDM LumenRadio™
  • Skeleton, Aluminium and steel metal plates
  • Moulded covers in ABS PC (V0 class)
  • Base in die-cast aluminium
  • Heatsinks in aluminium and copper
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)
  • Eight ¼ turn locking fittings
  • Two Omega ¼ turn brackets
  • Safety cable attachment point
Iris diaphragm
  • Fast iris diaphragm
  • Iris range: 15% to 100% open
Light source
  • Colour temperature output: 7000 K
  • CRI: greater than 70
  • Total luminaire output: up to 40,000 lumens
  • 60,000 lumens 8000 K white light engine
  • Rated life (L70): up to 40,000 hours
  • Flicker-free source
  • High-resolution stepper motors
  • Moving-head range: 540° (pan), 262° (tilt)
  • Operated via either 8 or 16 bit resolution
  • Pan and tilt automatic repositioning
  • Extremely accurate positioning
Operating parameters
  • Minimum usage distance: 2.0 m (6.56 ft)
  • Device on floor or fixed to a support
  • Maximum temperature (Ta max): 45 °C (113 °F)
  • Minimum temperature (Ta min): -10 °C (14 °F)
  • Beam aperture: 7° to 58°
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 13 elements 8:1 zoom high-resolution optic system
  • 158 mm frontal lens for greater performance
Power Supply
  • 120 to 240 Volts – 50/60 Hz
  • Power: 1,150 W maximum
  • Electronic supply with active PFC
  • Product: 494 x 778 x 280 mm (l x h x d)
  • Flight-case foam: 655 x 590 x 555 mm (l x h x d)
Software Features
  • Local DMX addressing
  • Remote DMX addressing, RDM DMX controller
  • Information menu
Weight Product: 39.8 kg
