Continuous, unlimited, rotation

Varenr: 015170
22 000,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
ikke på lager (34 dager)
BeskrivelseTeknisk infoDokumenter

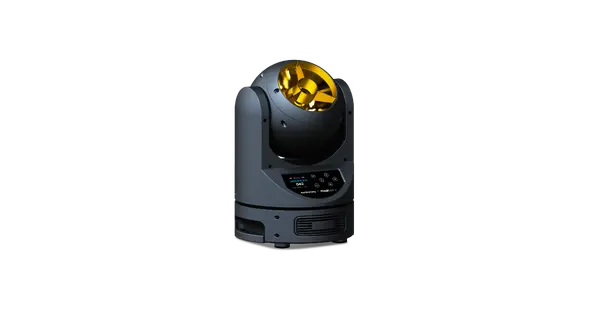

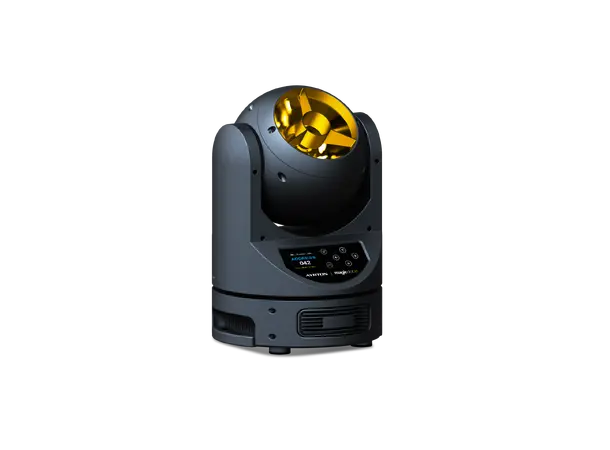

MAGICDOT XT is a radical variant of the revolutionary MAGICDOT R. It is fitted with the Ayrton’s new and proprietary 126 mm diameter optic – which distinguishes the “XT” product line.

Weighing in at 550 grammes, this new high-efficiency lens is the world’s largest collimator! Combined with an ultra-powerful, low-etendue, RGBW multichip LED emitter, MAGICDOT XT pushes the limits of technology even further with a 2° full beam and centre-beam luminous intensity of 580 candelas per lumen – six times greater efficiency than MAGICDOT R. With an active phase-change liquid cooling system that employs a heat pipe, this luminaire can be used continuously without significant loss of output.

The minimalist cylindrical design of the MagicDot XT is a scaled-up version of MagicDot R.

The new luminaire sports all same features, including ultra-rapid movement and continuous, unlimited, rotation on pan and tilt. The compact footprint permits multiple MAGICDOT XT luminaires to be installed with a minimum amount of space between them. In addition to standard DMX-RDM connectors, MAGICDOT XT can be controlled via wireless CRMX TiMo™ RDM from LumenRadio™.

Teknisk info


  • 4.29 billion colours (8 bit resolution)
  • Sophisticated 4 colours RGBW mixed
  • Dynamic colour macro effect with variable speed
  • Light beam, no shadows, pastel colour-hues
  • Virtual colour wheel
  • EU (EMC):
  • EU (LVD):
  • US Safety:
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • UL 1573
  • Choice of 2 DMX modes (from 15 to 17 DMX)
  • DMX 512 protocol
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • Local control panel, with LCD display
Cooling System
  • Advanced cooling system, heatpipe tech.
  • Selectable auto, stage & studio ventilation modes
  • Variable speed fans for quiet operation
  • Safety protection against temperatures excesses
Dimmer / Strobe
  • Electronic dimmer, 0 to 100%
  • Strobe effect, 1 to 25 flashes per second
Hardware Features
  • 6 menu buttons to set the functions
  • XLR 5 pin male and female connectors
  • Graphic LCD display
  • Excess temperature protection
  • Wireless CRMX TiMo™ RDM LumenRadio™
  • powerCON TRUE1 male and female connectors
  • Moulded covers in ABS PC (V0 class)
  • Two sides handles for transportation
  • Heatsinks in aluminium and copper, satin finish
  • Skeleton, Aluminium and steel metal plates
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)
  • One Omega 1/4 turn brackets
  • Two 1/4 turn locking fittings
  • Safety cable attachment point
Light source
  • 1,000 lumens RGBW High-Power LED source
  • Luminous intensity: 580,000 cd (narrow beam)
  • Total luminaire output: up to 850 lumens
  • Flicker free sources
  • Rated life (L70): up to 40,000 hours
  • High-resolution stepper motors
  • Pan and tilt automatic repositioning
  • Either 8- or 16-bit resolution
  • Moving-head range: infinite pan and tilt rotation
  • Extremely accurate positioning
Operating parameters
  • Minimum usage distance: 2.0 m (6.56 ft)
  • Device on floor or fixed to a support
  • Maximum temperature (Ta max): 45 °C (113 °F)
  • Minimum temperature (Ta min): -10 °C (14 °F)
  • 85% optic efficiency
  • Beam aperture: 2°
  • 126mm PMMA collimator optic
Power Supply
  • Power 100 W maximum
  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60 Hz
  • Flight-case foam: 290 x 355 x 290 mm (l x h x d)
  • Product: 235 x 360 x 235 mm (l x h x d)
Software Features
  • Local DMX addressing
  • Remote DMX addressing, RDM DMX controller
  • Information menu
Weight Product: 6.2 kg
